RX570 | RadiForce

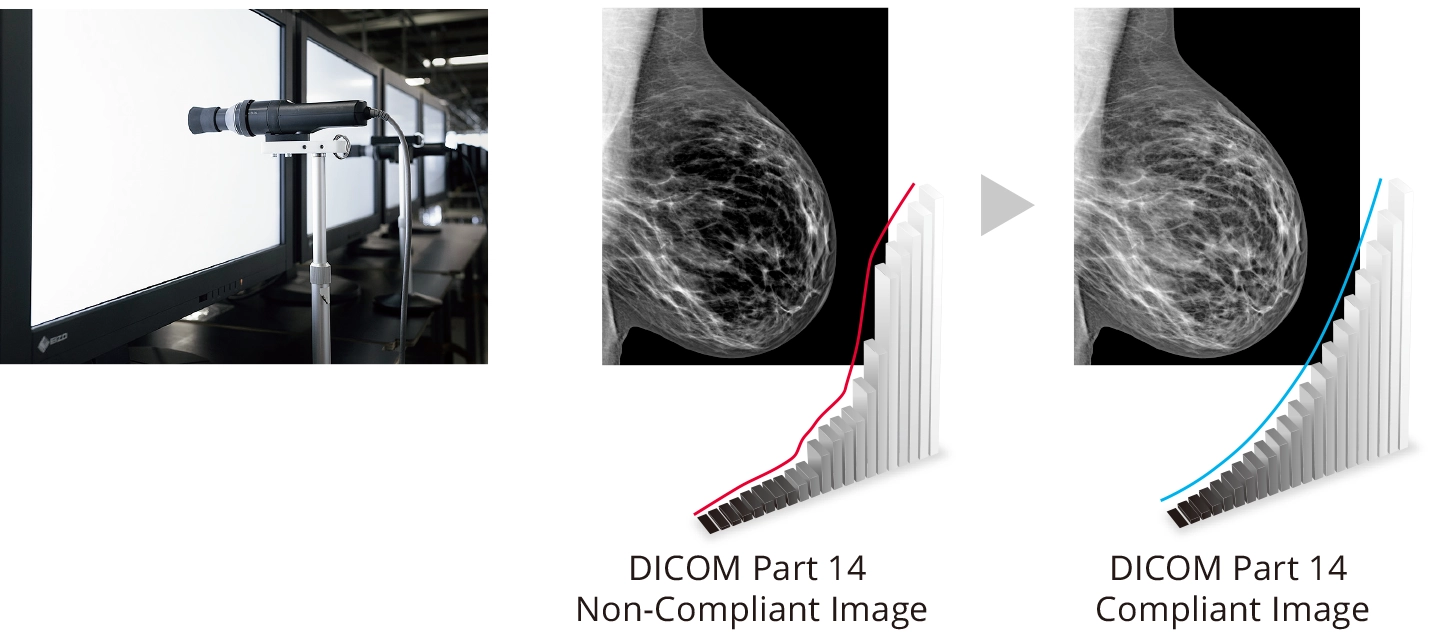

EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14 standard. This ensures the most consistent shading possible, allowing for the most accurate diagnosis.

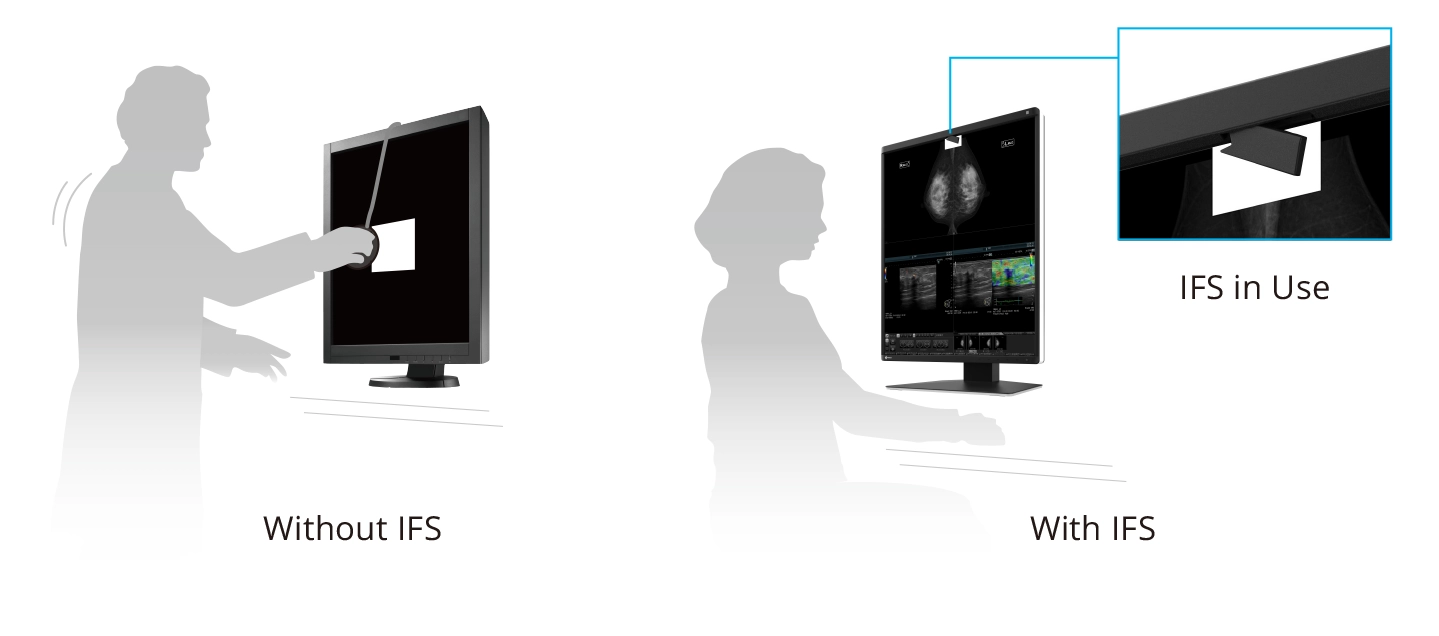

With the Integrated Front Sensor (IFS) built into the front bezel and the bundled monitor control software RadiCS LE, you can easily calibrate to DICOM Part 14 standard without having to mount, run, and remove an external sensor.

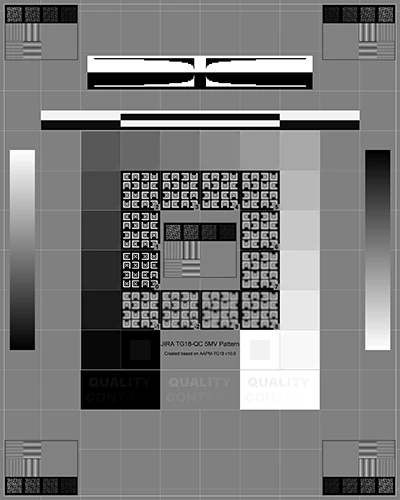

EIZO’s easy-to-use quality control software and calibration sensor RadiCS UX2 (sold separately) performs precise calibration conforming to DICOM Part 14 and enables high-grade quality control (QC), complying with ACR Practice Guidelines and other QC standards for digital mammography monitors.

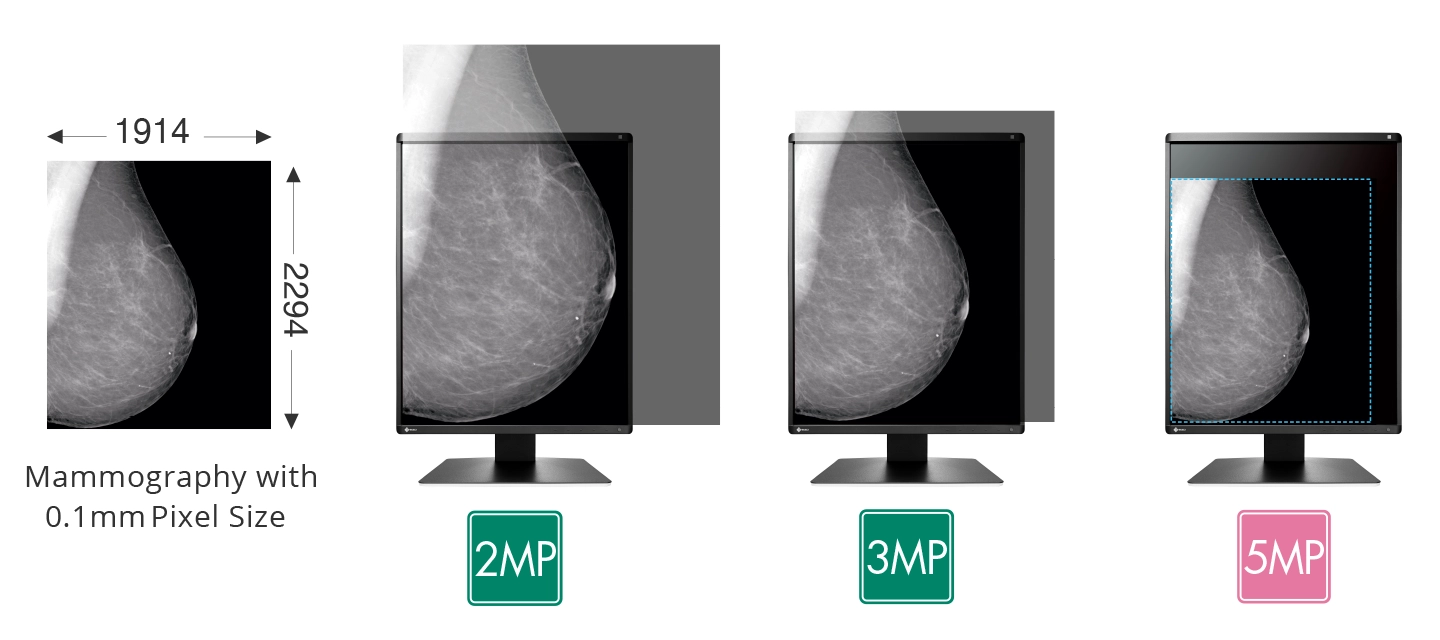

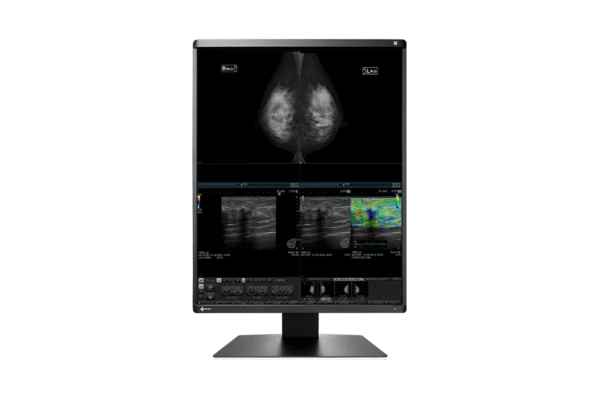

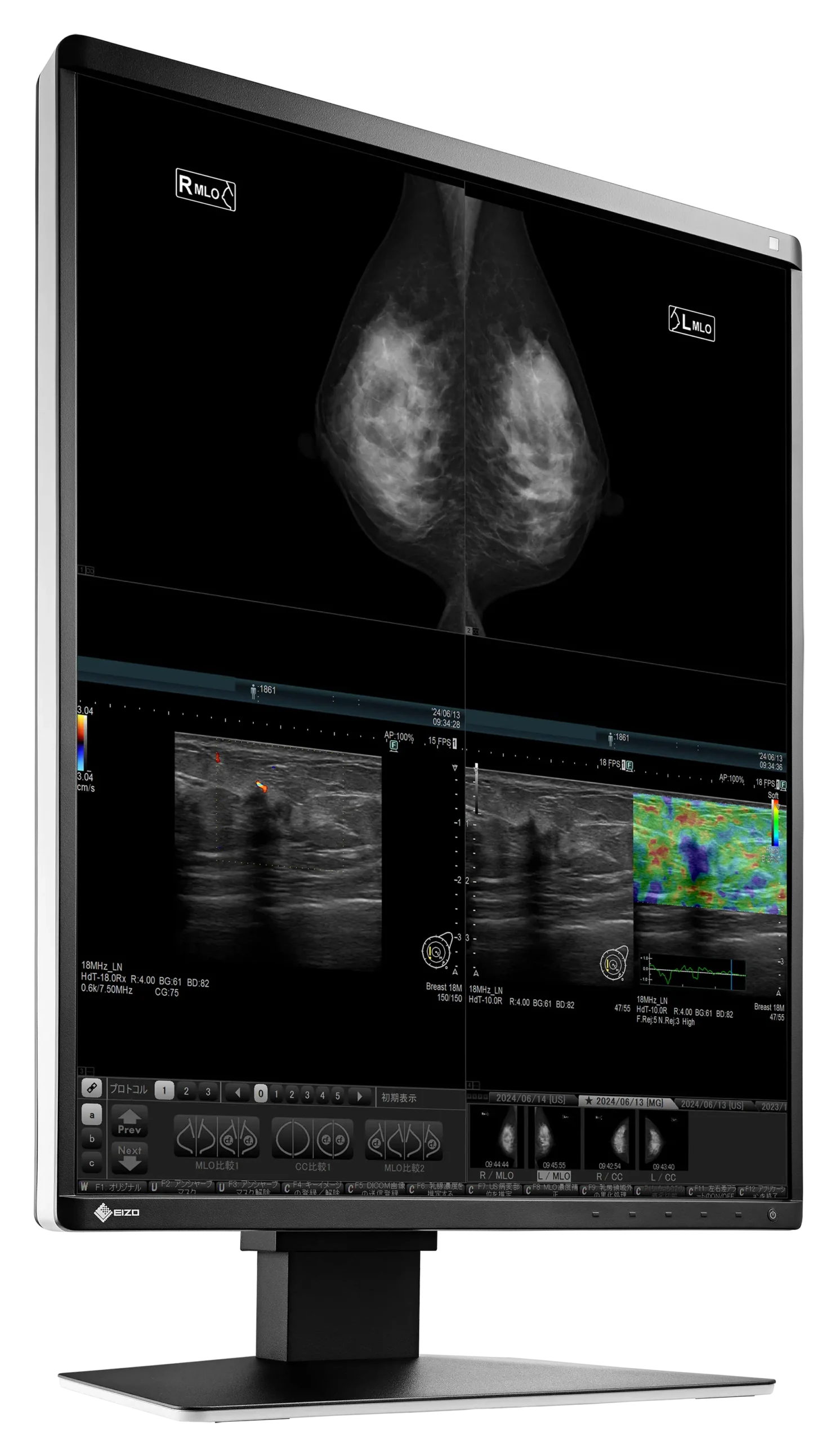

When a monitor displays data that exceeds its maximum resolution, the data is downsampled, resulting in a loss in image quality. The RX570 displays 5 megapixels (2048 x 2560 pixels) with a pixel pitch of 0.165 mm, ensuring highly detailed mammography images are shown more clearly compared to 2 or 3 megapixel monitors.

The monitor has obtained FDA 510(k) clearance by the U.S. Food and Drug Administration for breast tomosynthesis and mammography. This ensures that the monitor is capable of displaying detailed breast screening images where high performance is essential.

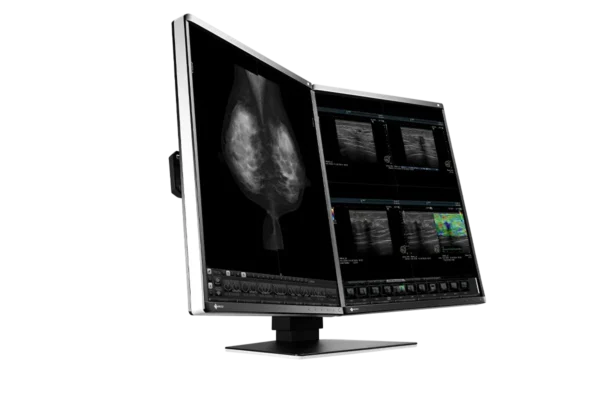

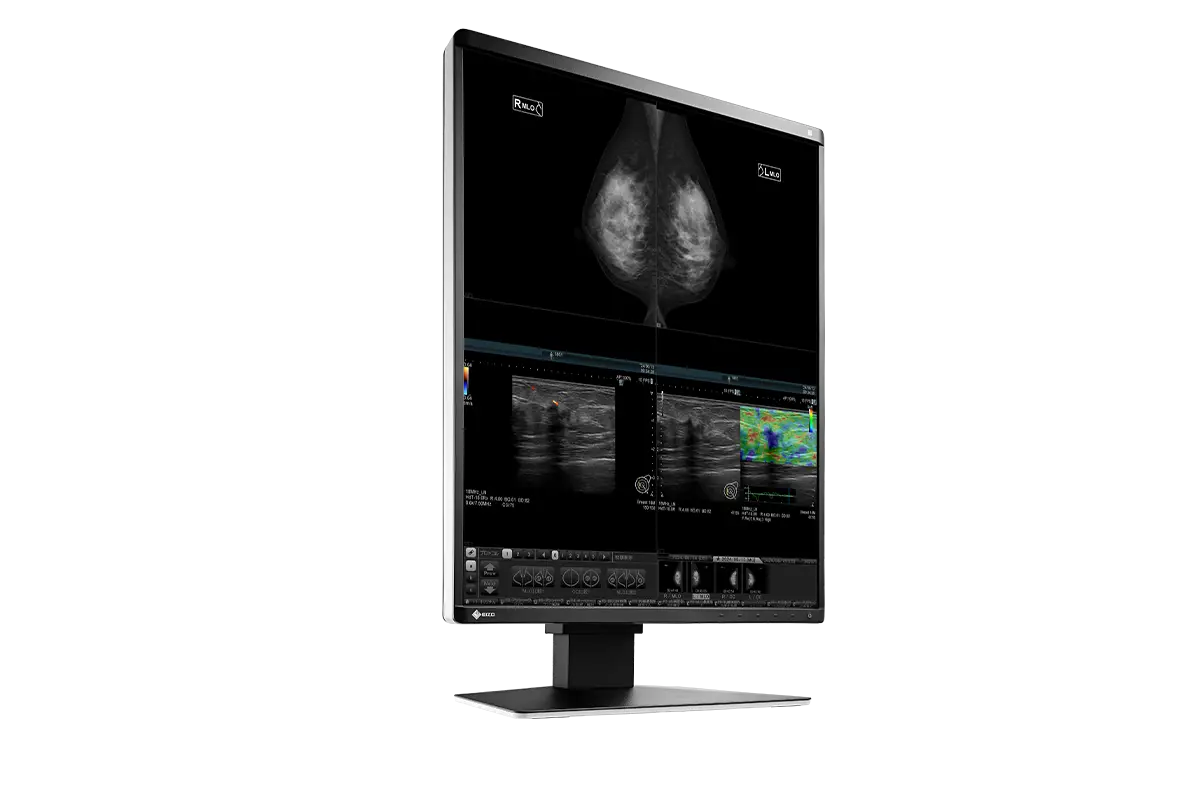

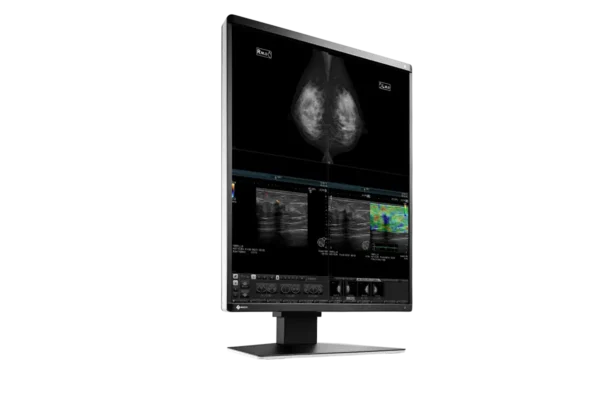

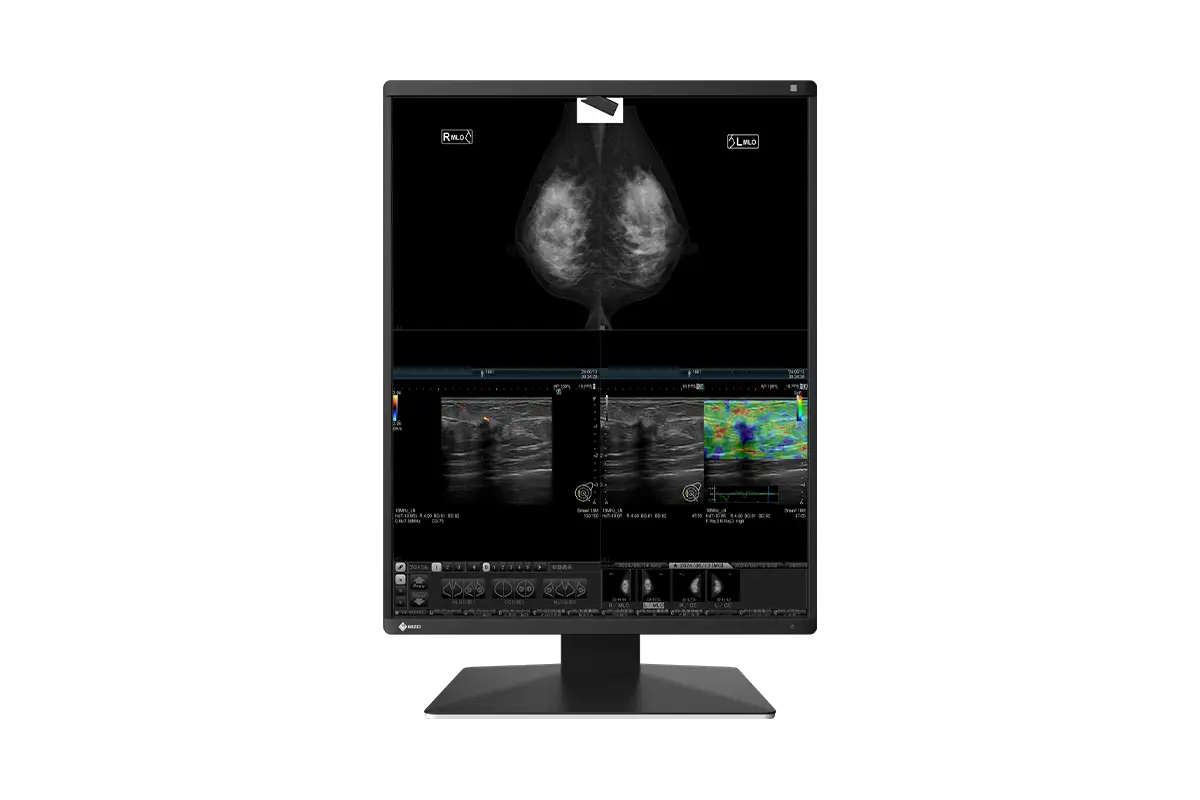

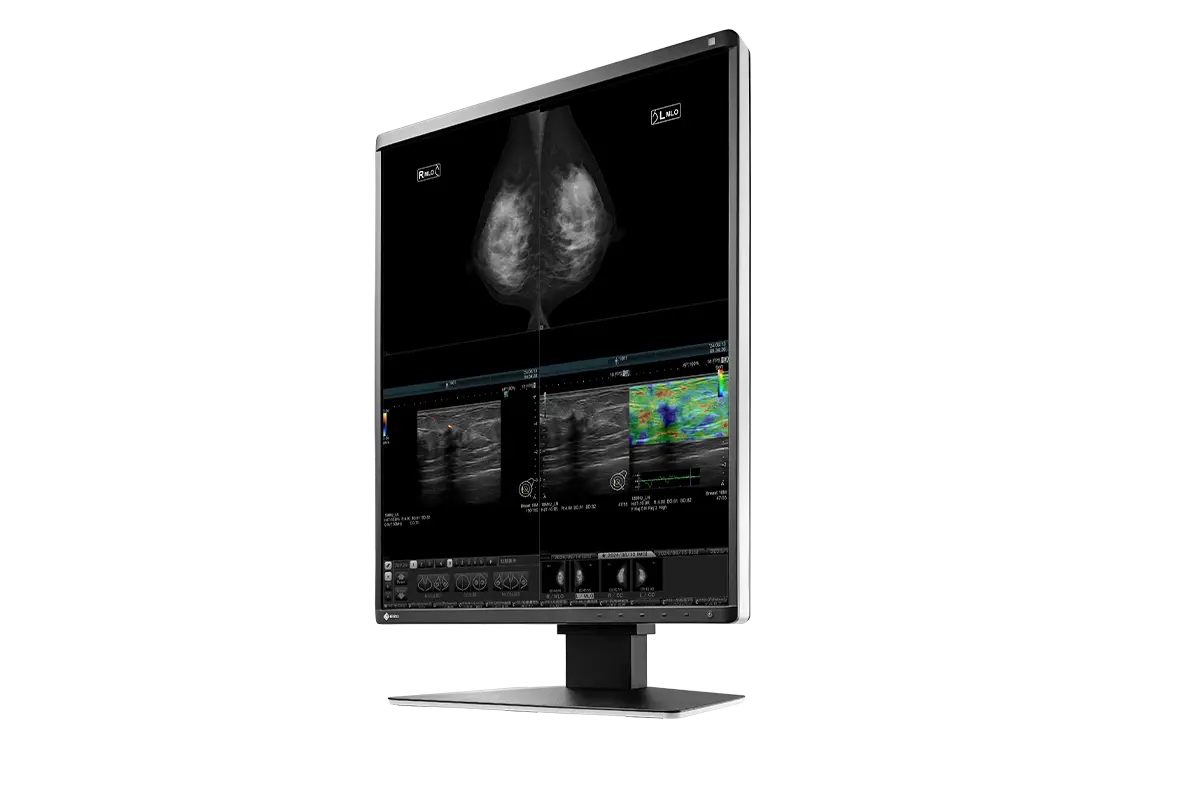

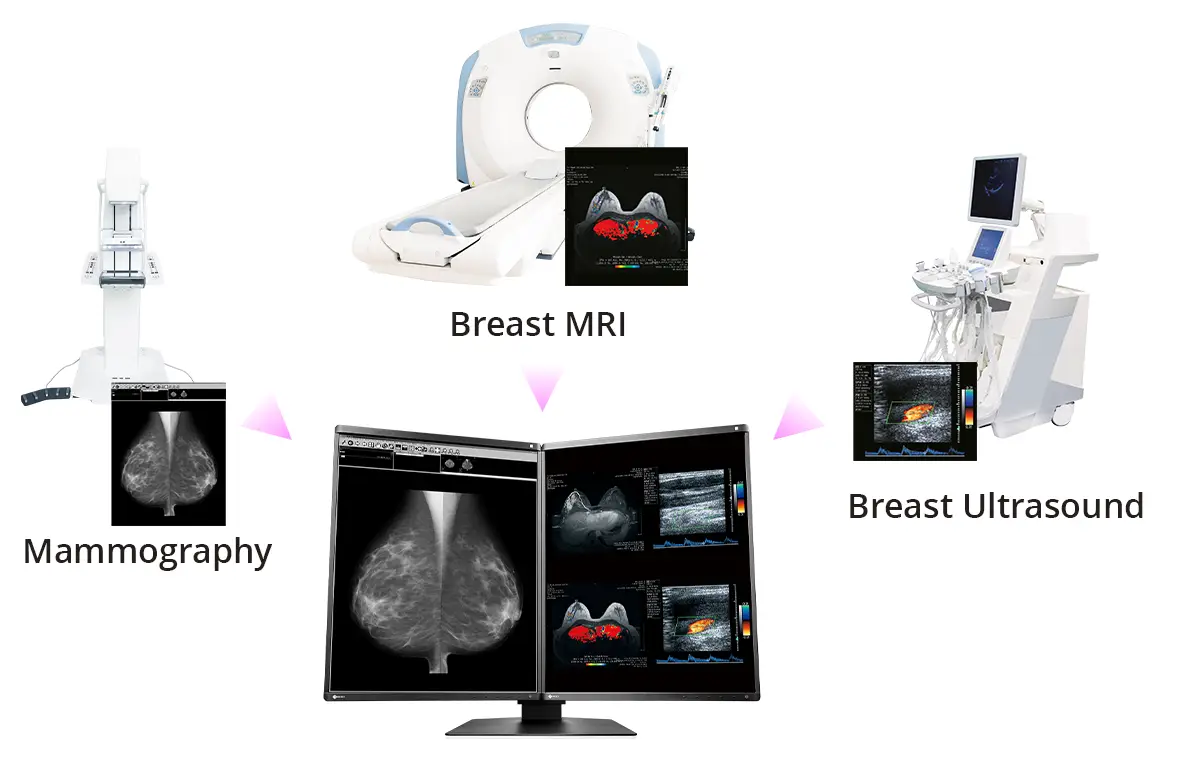

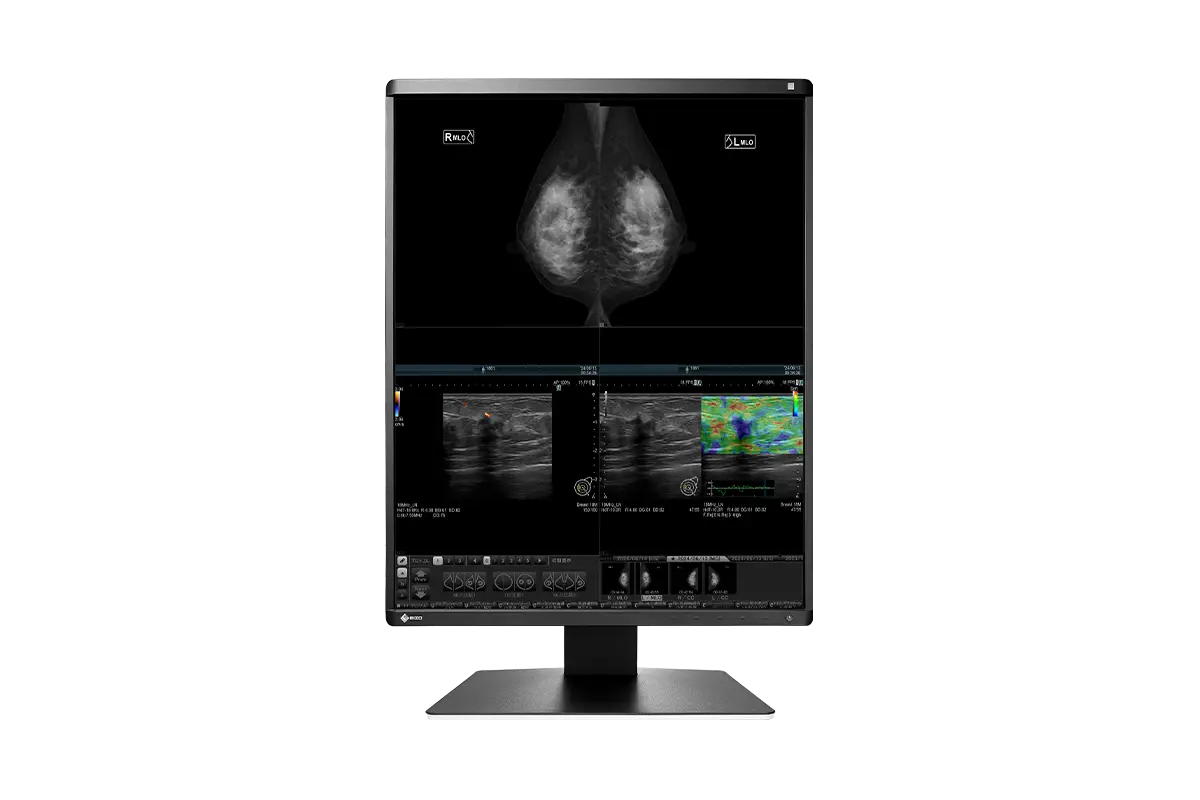

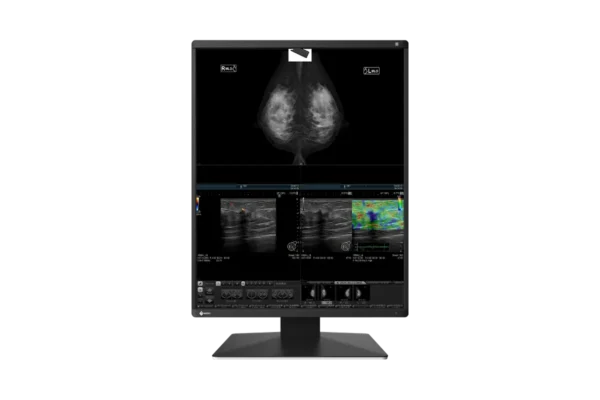

The RX570, while a colour monitor, achieves an impressive brightness of 1200 cd/m2. This allows it to display high-definition monochrome breast tomosynthesis and mammography images conveniently alongside color images from breast MRI, CT, and ultrasound, all on one screen.

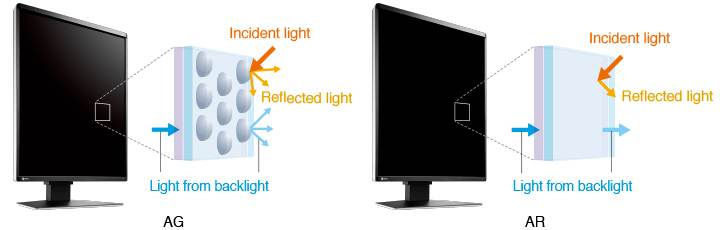

EIZO offers anti-glare (AG) and anti-reflection (AR) screen variations to suit user environments. AG treatment is ideal for exceptionally bright environments and drastically reduces glare from ambient lighting. AR treatment is ideal for moderately-lit environments to reduce mild screen glare while maintaining crisp text and images.

The Hybrid Gamma PXL function automatically distinguishes between monochrome and color images, optimizing grayscale for each pixel. This allows for the simultaneous display of monochrome mammography images according to the DICOM standard (GSDF) and color images from breast MRI, CT, and ultrasound at Gamma 2.2 on the same screen, enhancing reading efficiency.

Kumamoto Chuo Hospital in Japan conducted a visual assessment of a RadiForce monitor equipped with the Hybrid Gamma PXL function. They observed an approximate 37% improvement when using a color monitor with Hybrid Gamma PXL compared to one without. In addition, Hybrid Gamma PXL performed as effectively as monochrome monitors with GSDF when displaying monochrome images.

A medical monitor must achieve high brightness to meet performance standards. However, to achieve this in an LCD panel, the pixel aperture ratio has to be increased, resulting in a decline in sharpness. EIZO’s unique Sharpness Recovery technology restores this loss in sharpness (MTF), ensuring images displayed on the monitor remain true to the original source data, even at high brightness levels.

MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 1.515 cycles/mm) the MTF increases by approximately 45%.

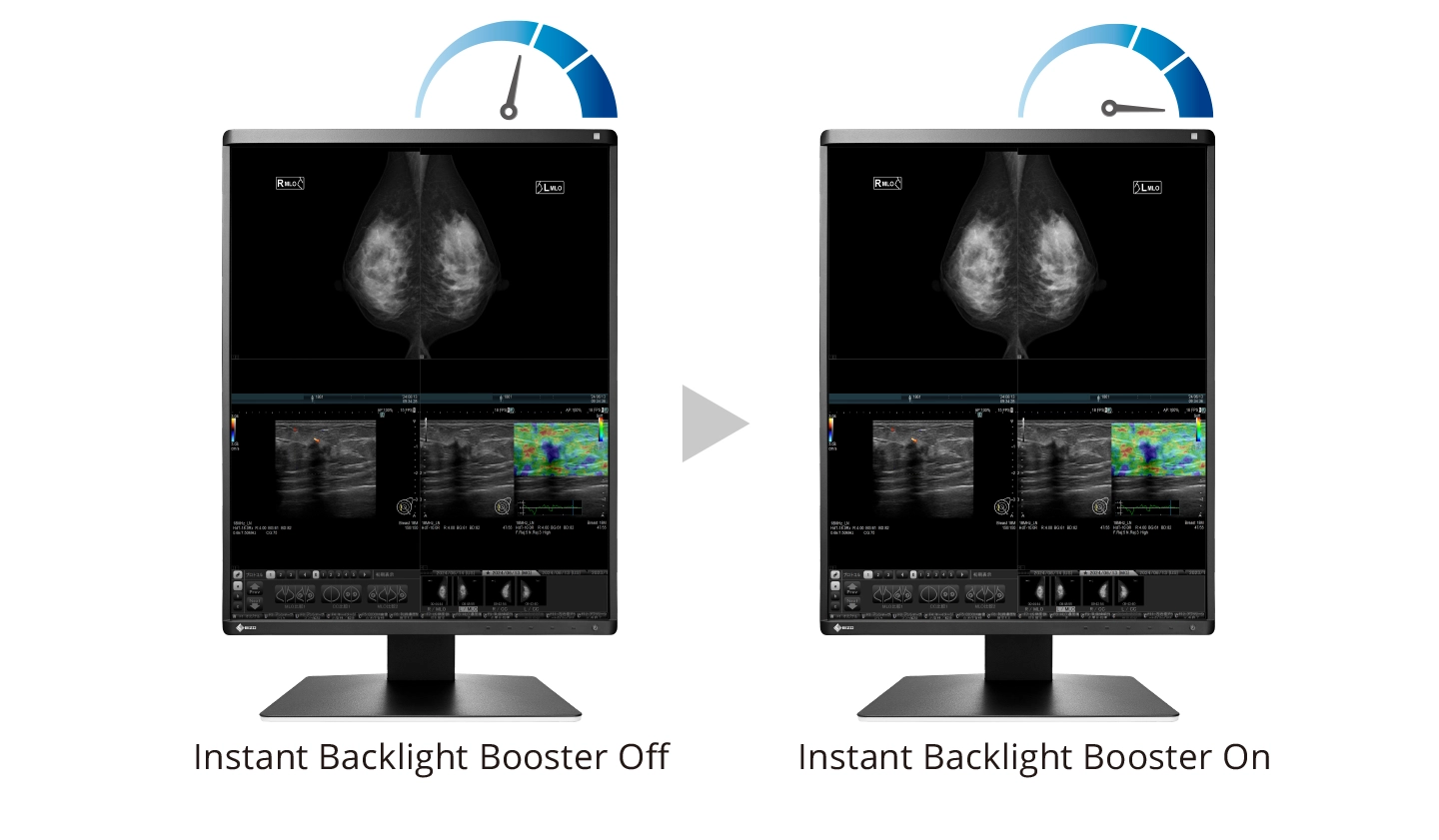

The Instant Backlight Booster function allows users to maintain the monitor at the recommended 500 cd/m2 for standard tasks and, with a single hotkey, instantly boost brightness to the maximum level of 1200 cd/m2 for a seamless user workflow. The brightness automatically reverts to its original level after a set period, ensuring optimal performance for critical image viewing sessions while minimizing strain on the backlight over time.

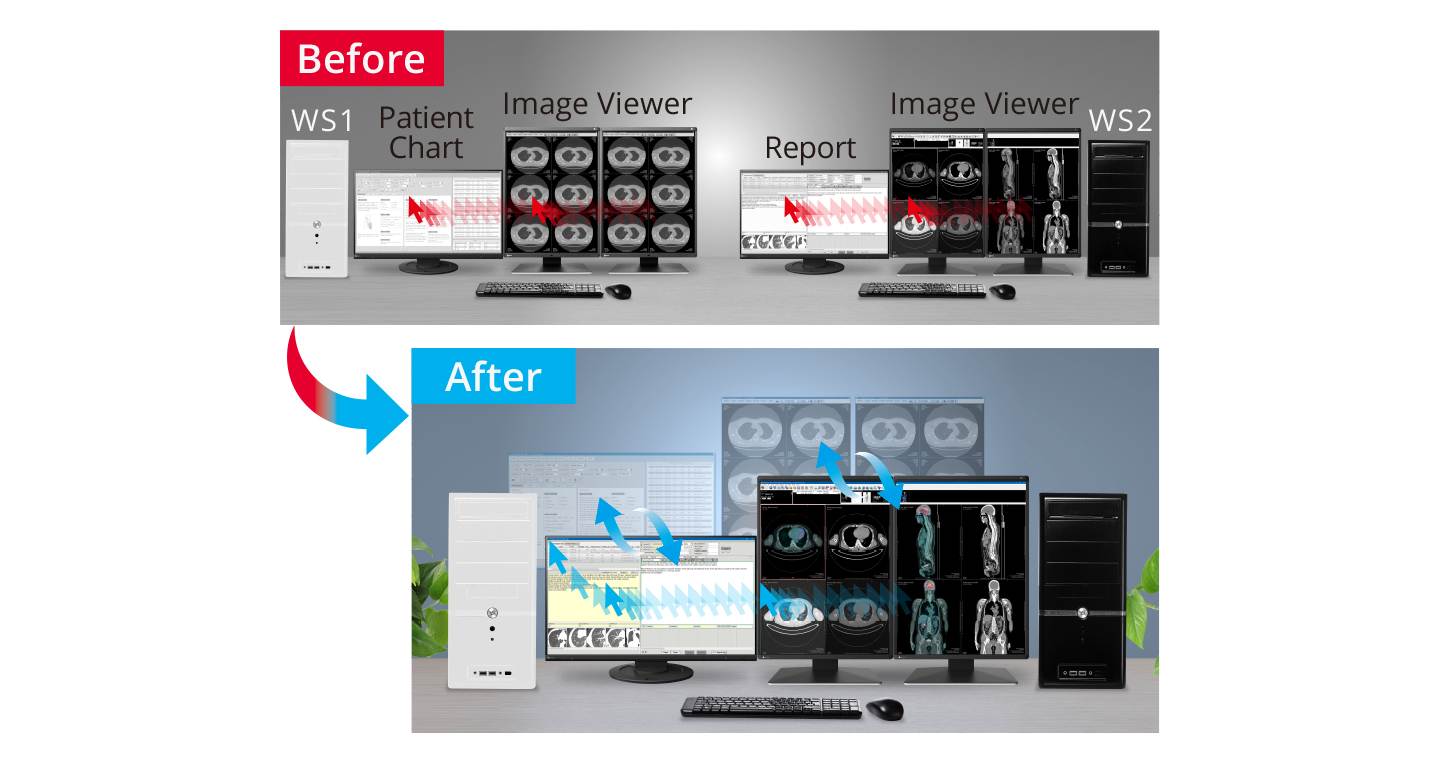

Modern medical imaging workflows require multiple workstations and monitors, which can be complex and impact productivity. To promote a barrier-free workstyle, the monitor features Switch-and-Go function, allowing users to operate two workstations with a single keyboard and mouse. This enables seamless cursor movement across screens, reducing the need for multiple peripheral devices and enhancing overall workflow efficiency.

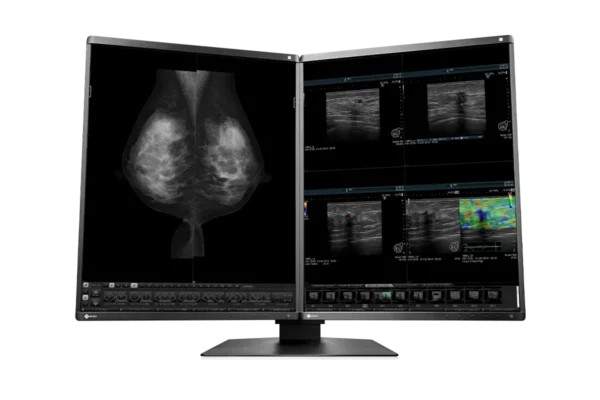

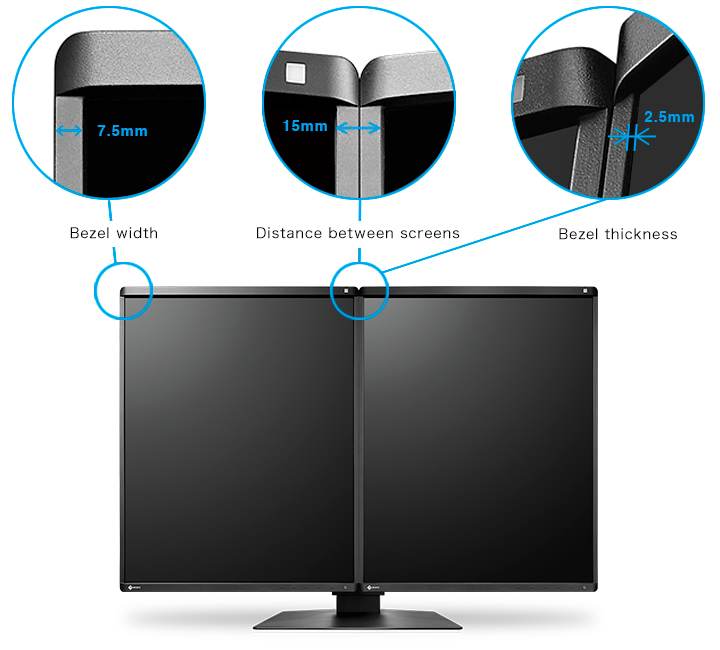

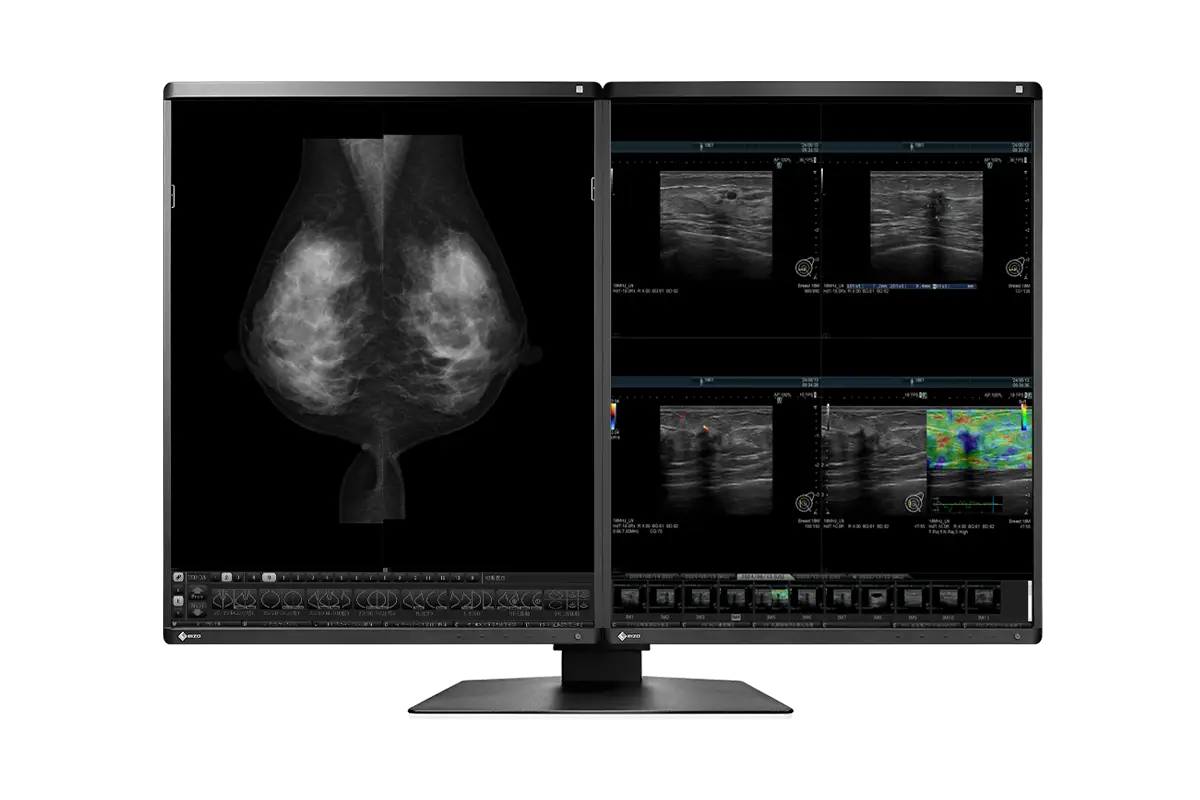

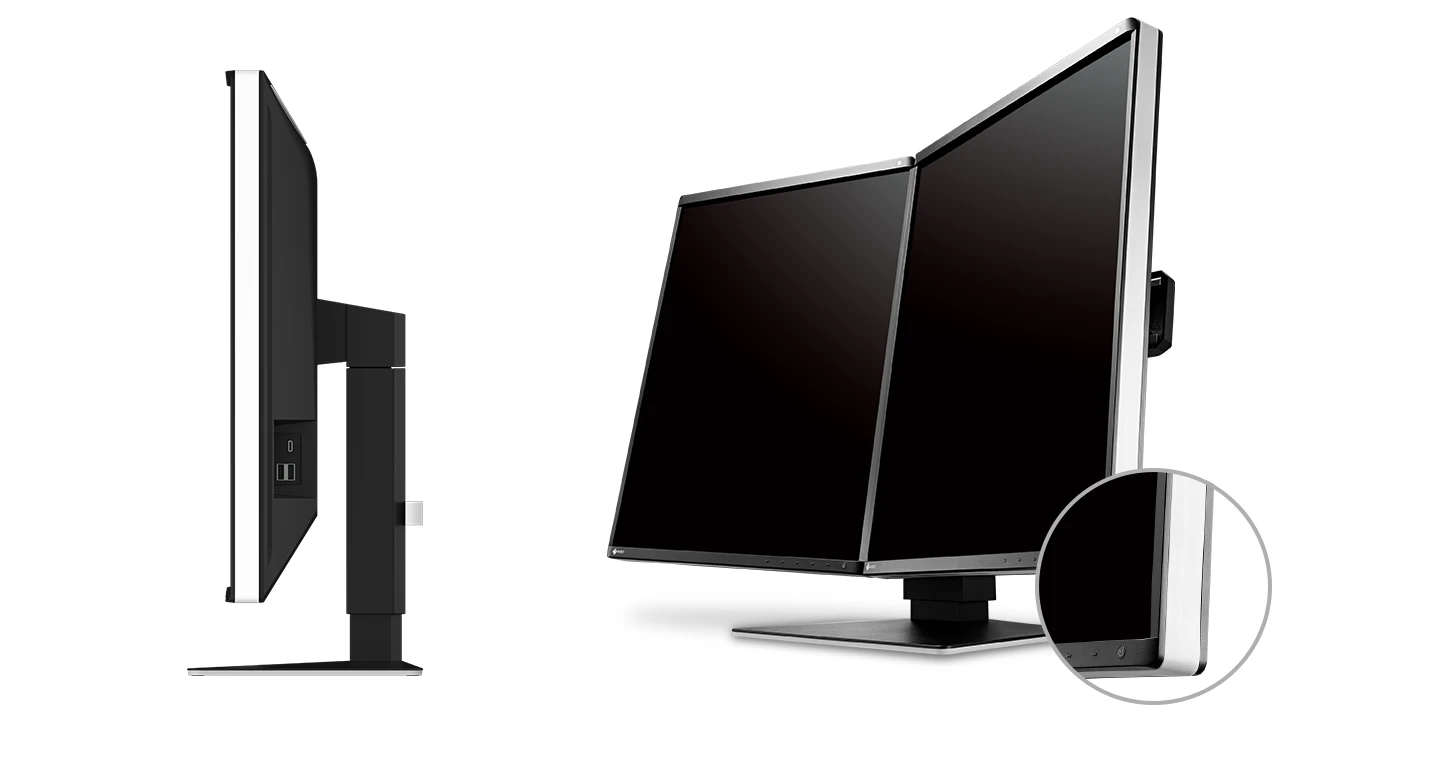

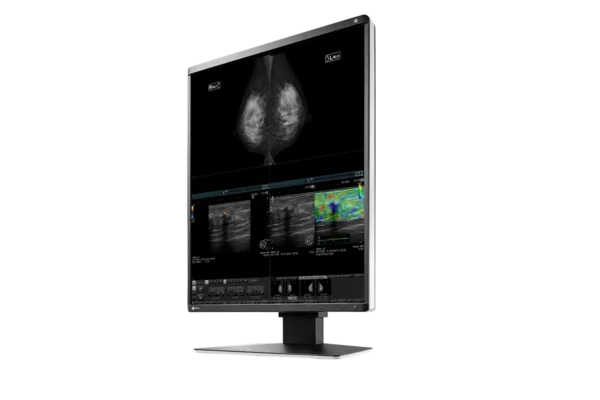

With a 7.5 mm bezel, the total distance between two side-by-side screens is only 15 mm. Furthermore the screen is almost completely flat with the bezel sitting only 2.5 mm above the screen.

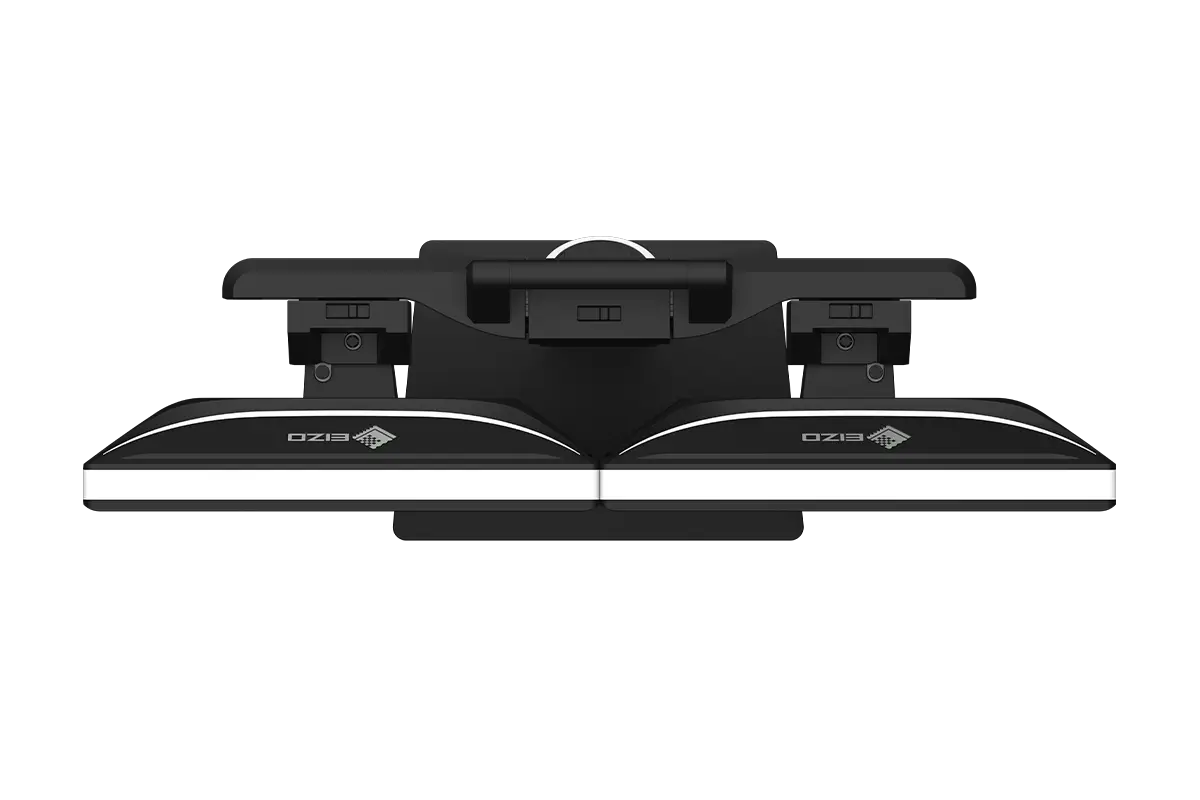

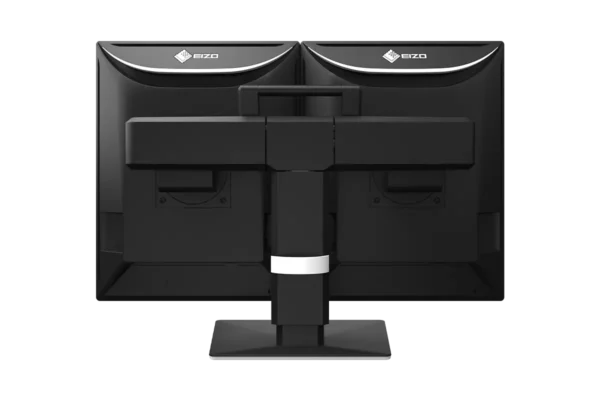

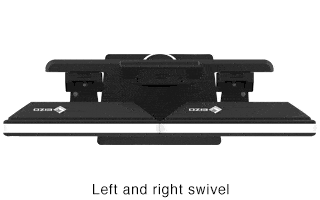

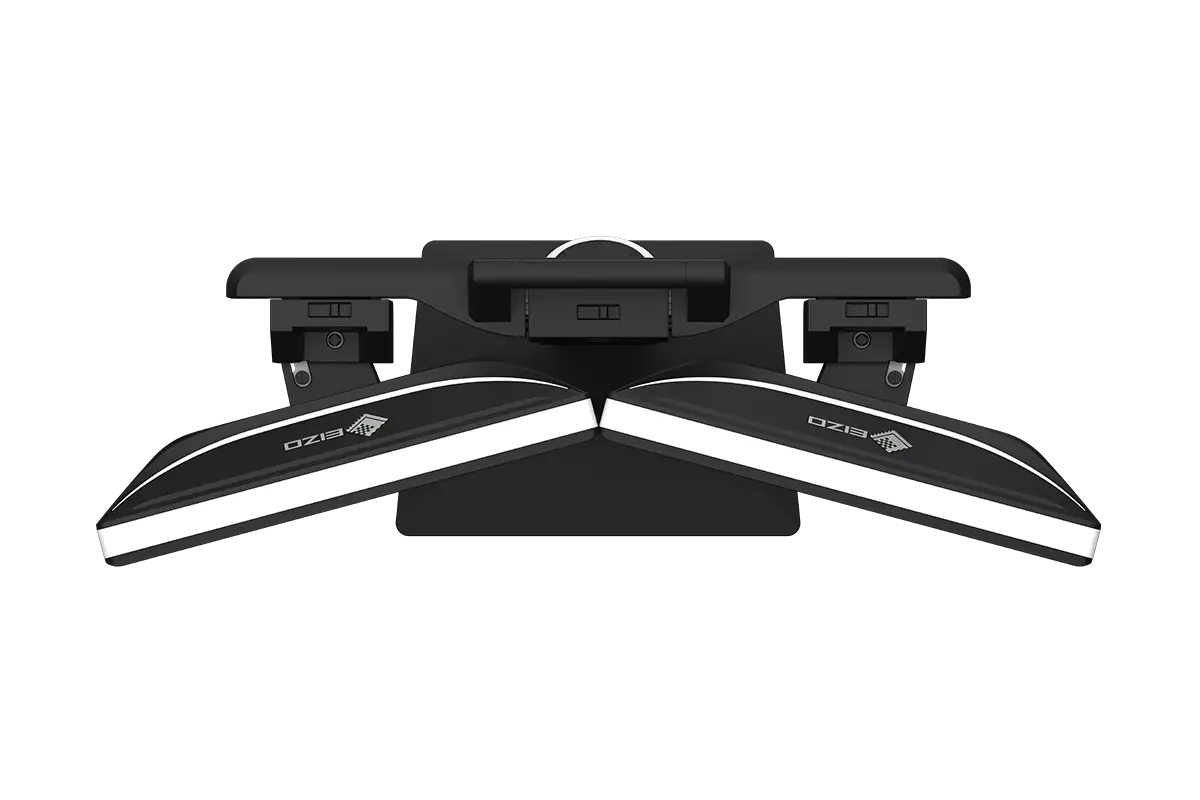

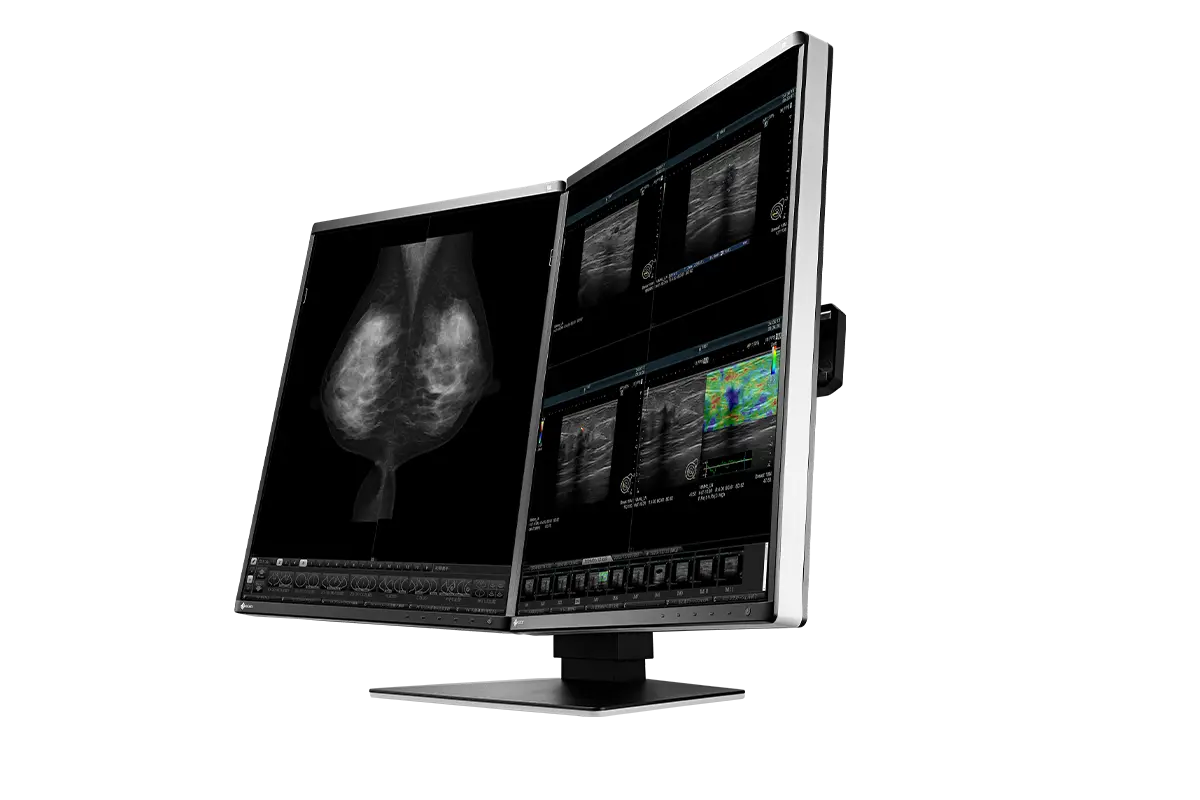

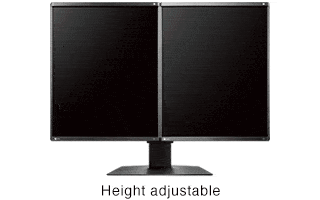

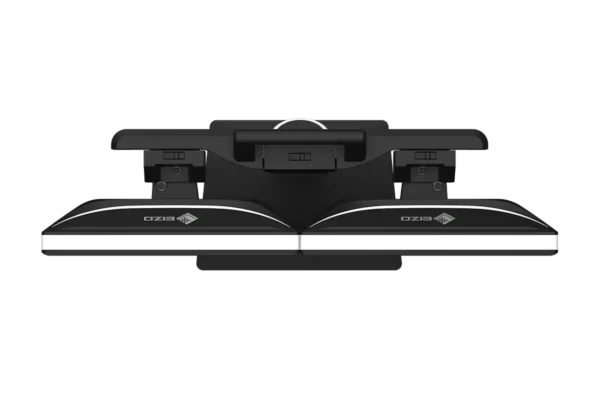

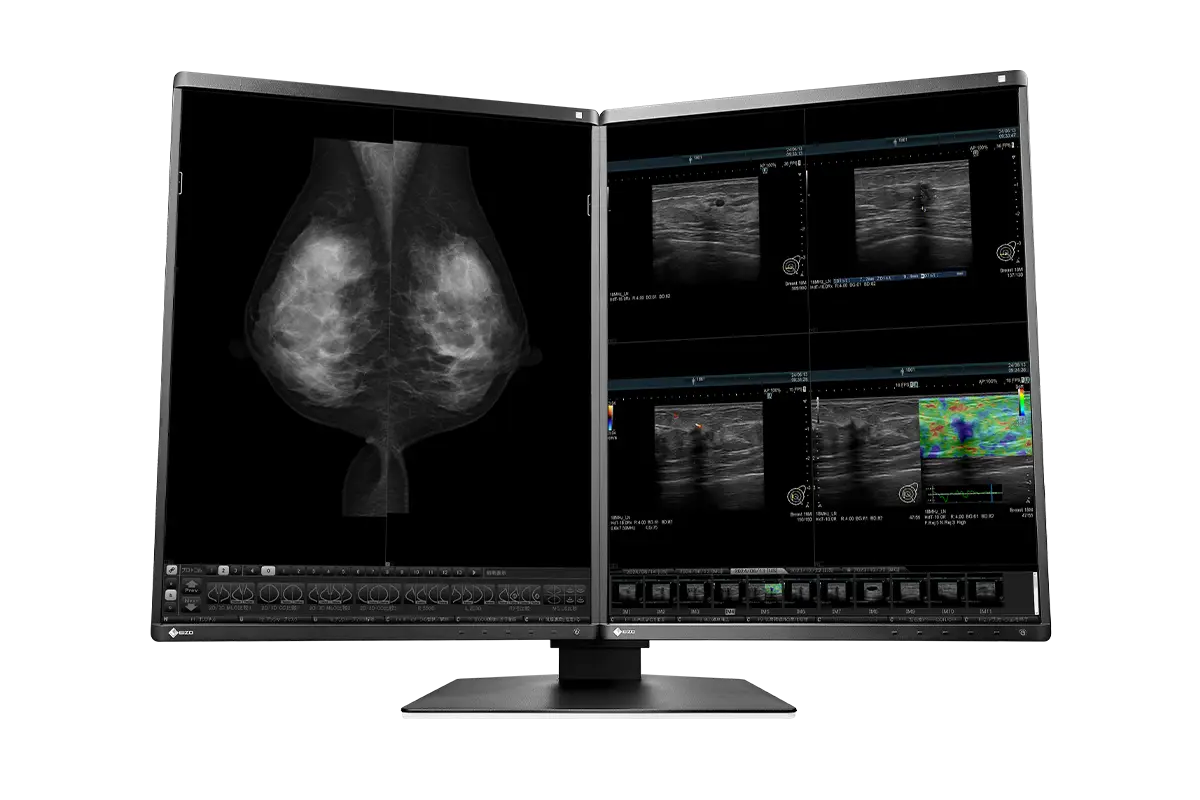

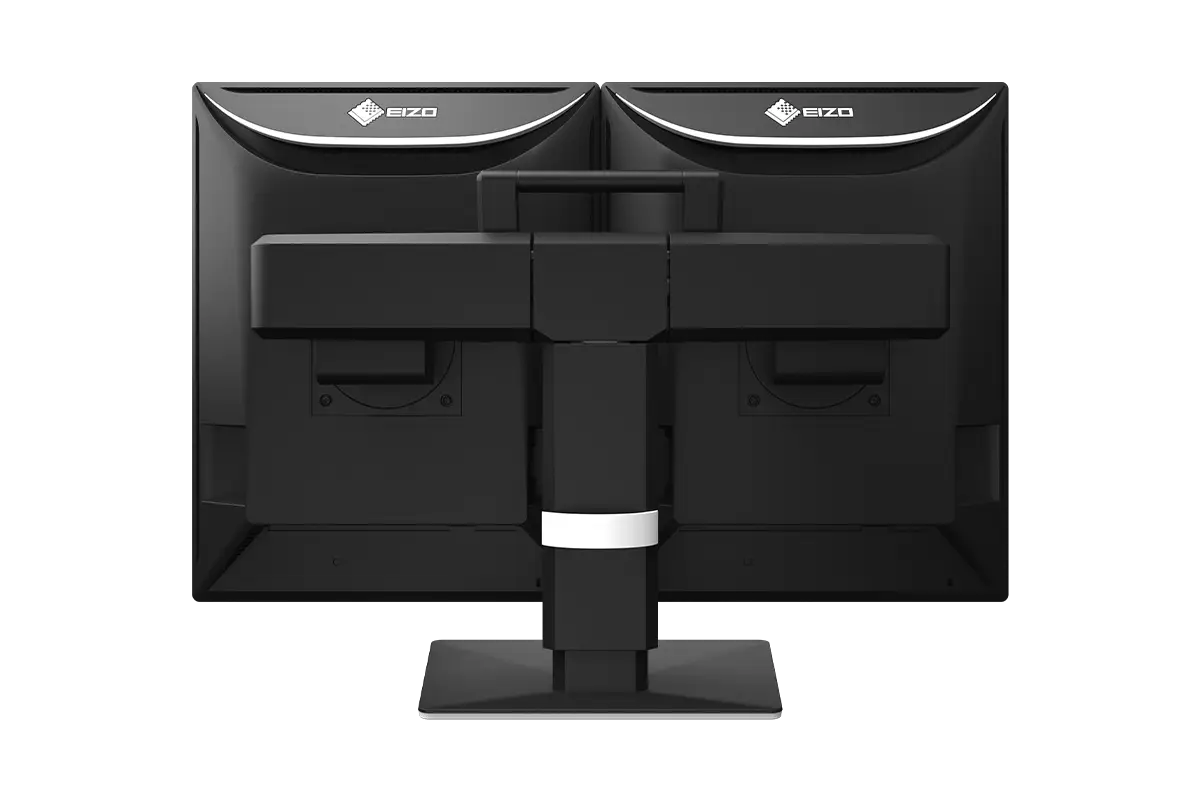

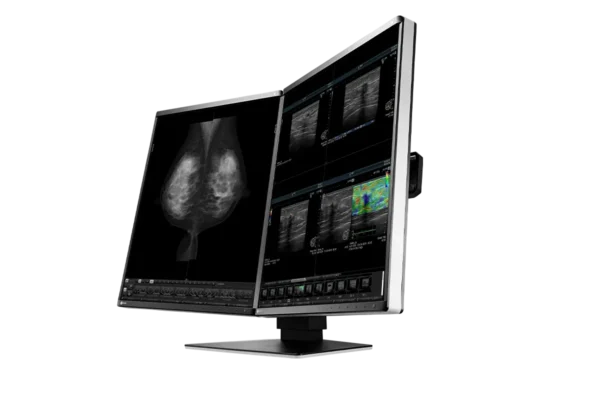

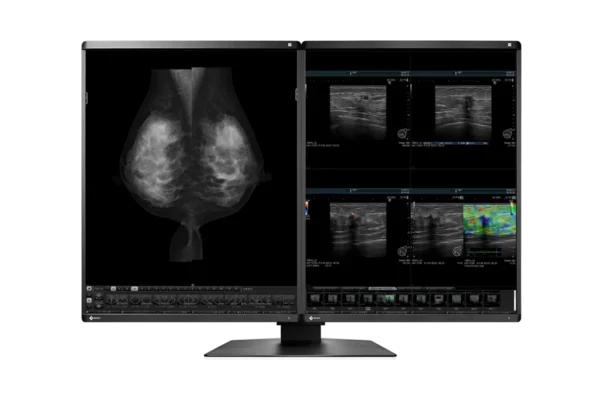

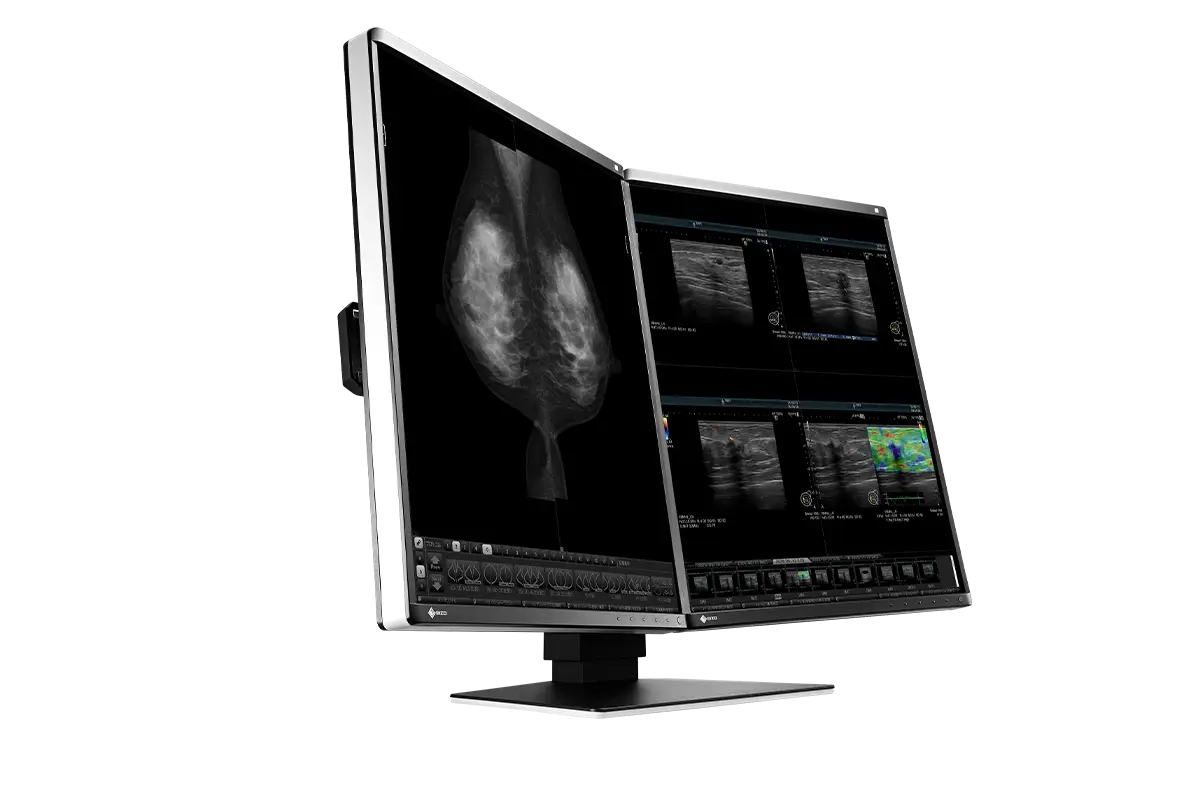

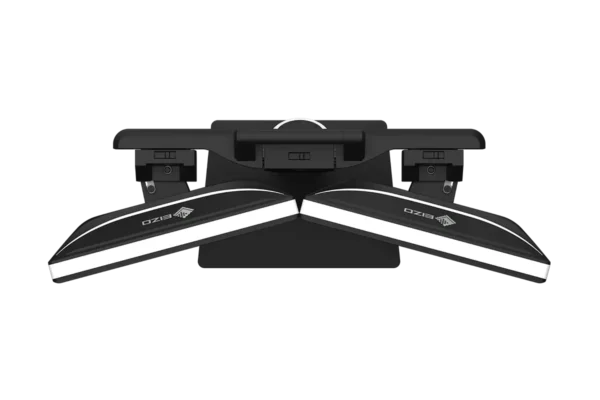

With the dedicated stand, you can adjust the height and swivel of the two monitors in tandem without any gaps between them.

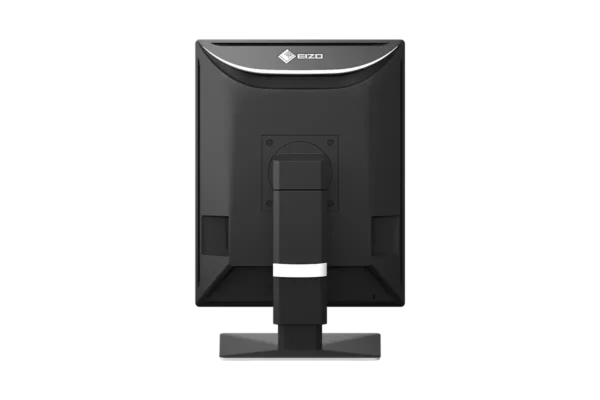

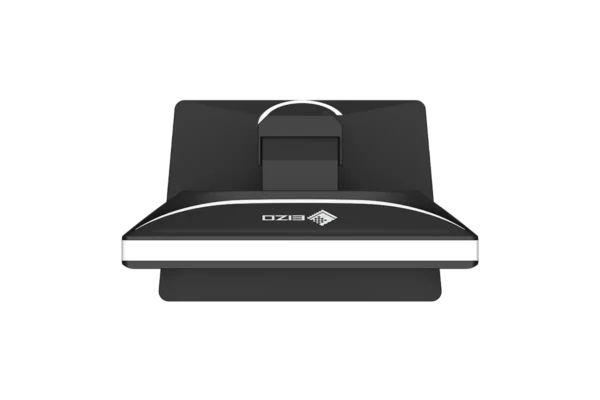

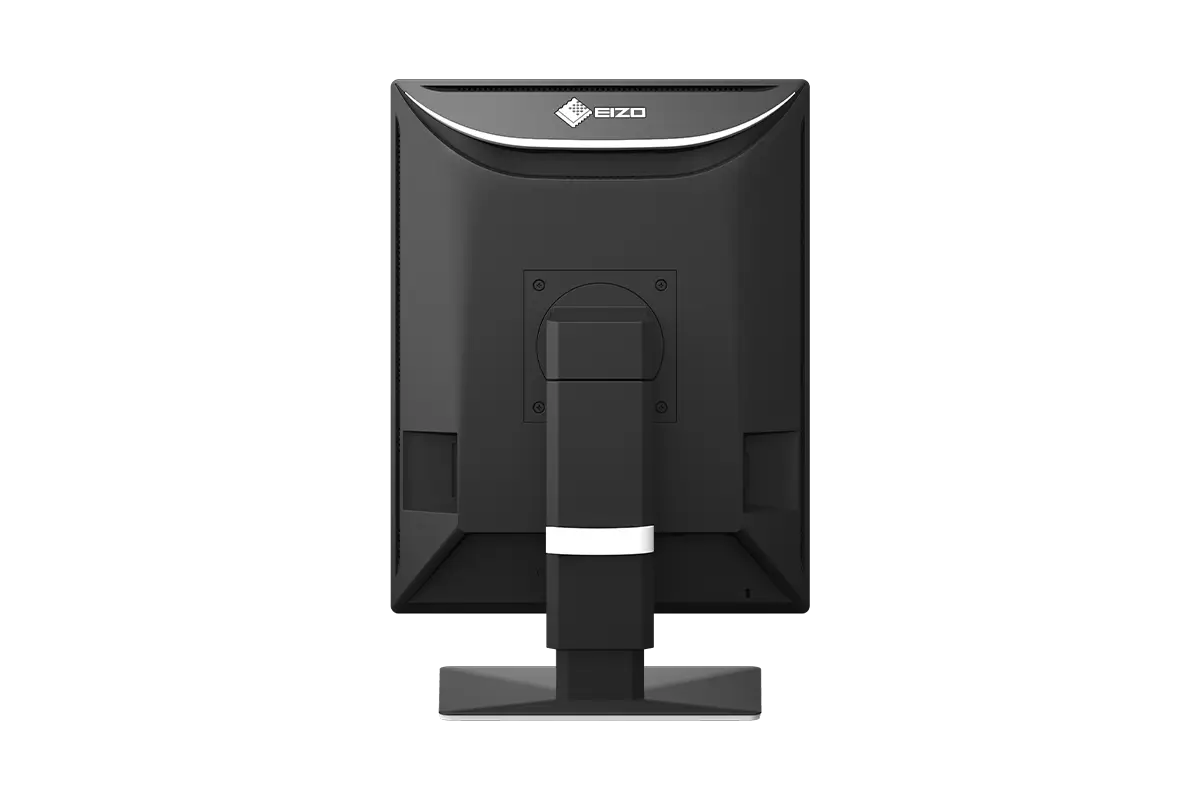

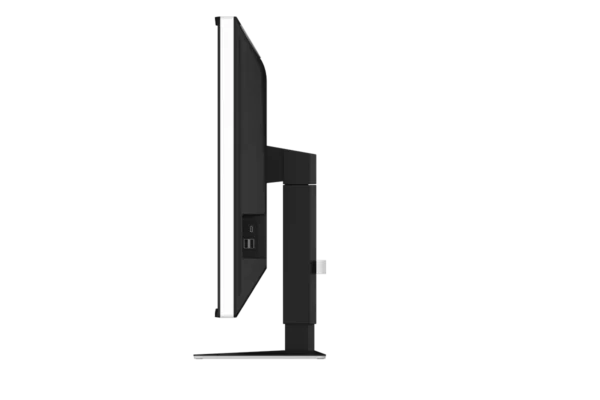

The black front bezels are ideal for viewing the screen in dark reading rooms, making it easier to focus on images, while the original white stripe around the sides of the monitor presents a fresh, clean aesthetic. Rounded corners and elegant curves on the back present a gentle aesthetic and facilitate a comforting environment for patients and medical staff.

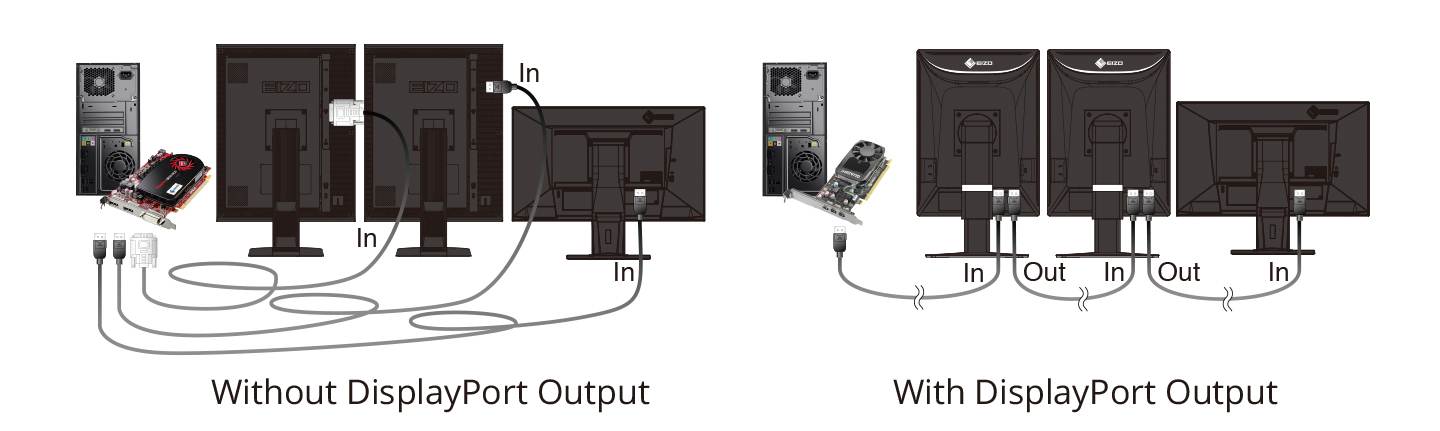

The monitor is equipped with DisplayPortTM input and output terminals. Using the output terminal allows you to easily configure several monitors in a daisy chain sequence without the hassle of excessive cabling.

EIZO and its authorized distributors offer a seven-year full warranty.
