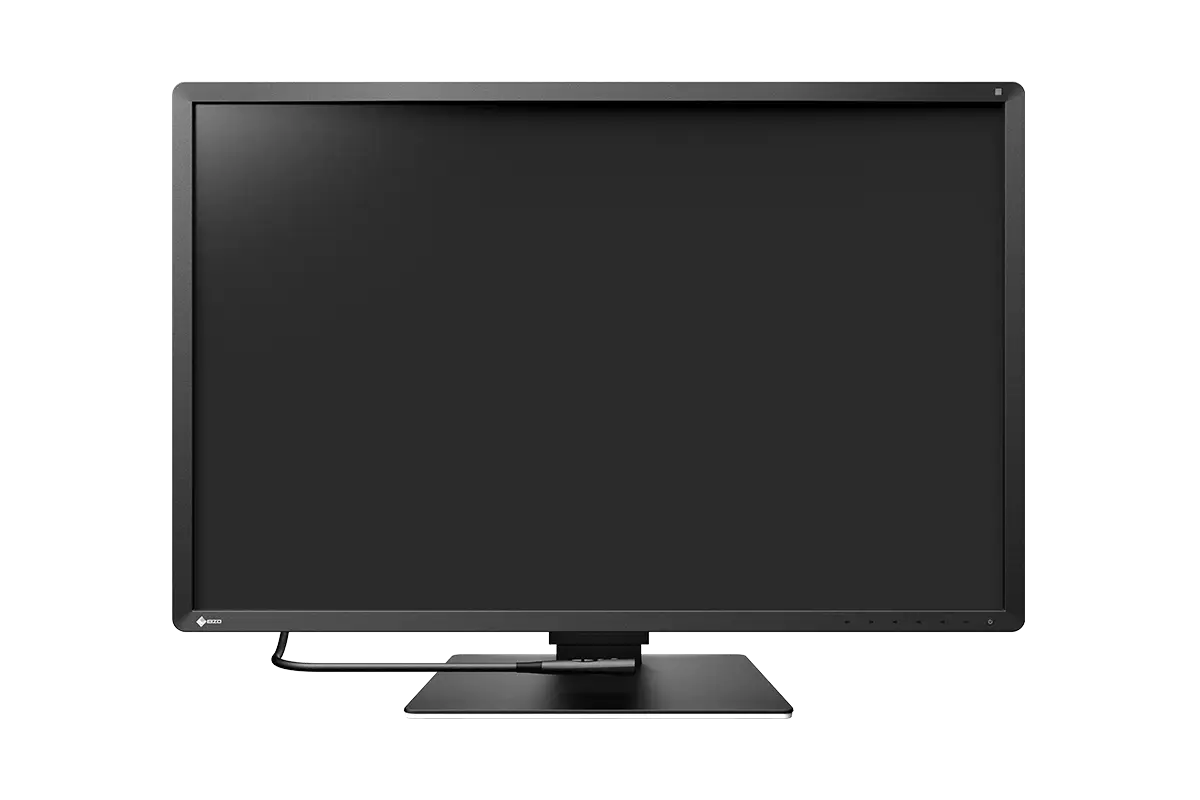

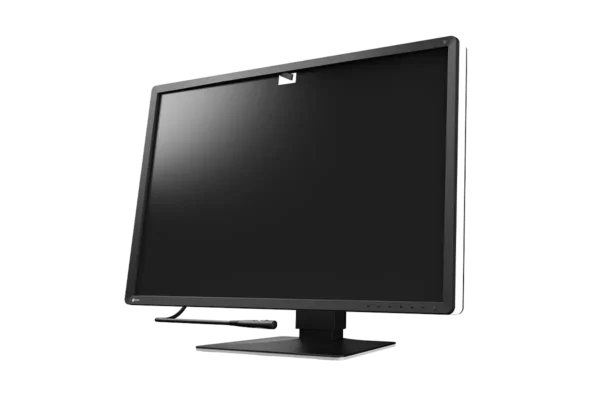

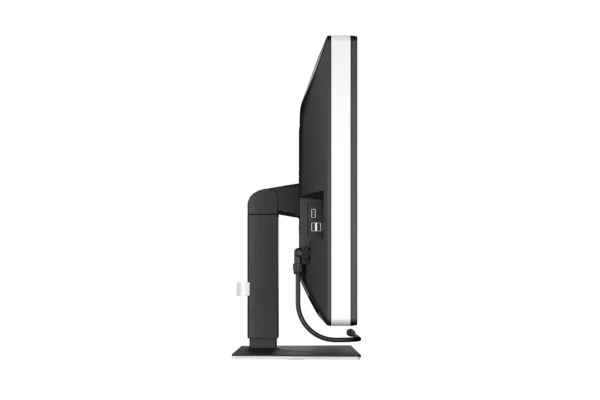

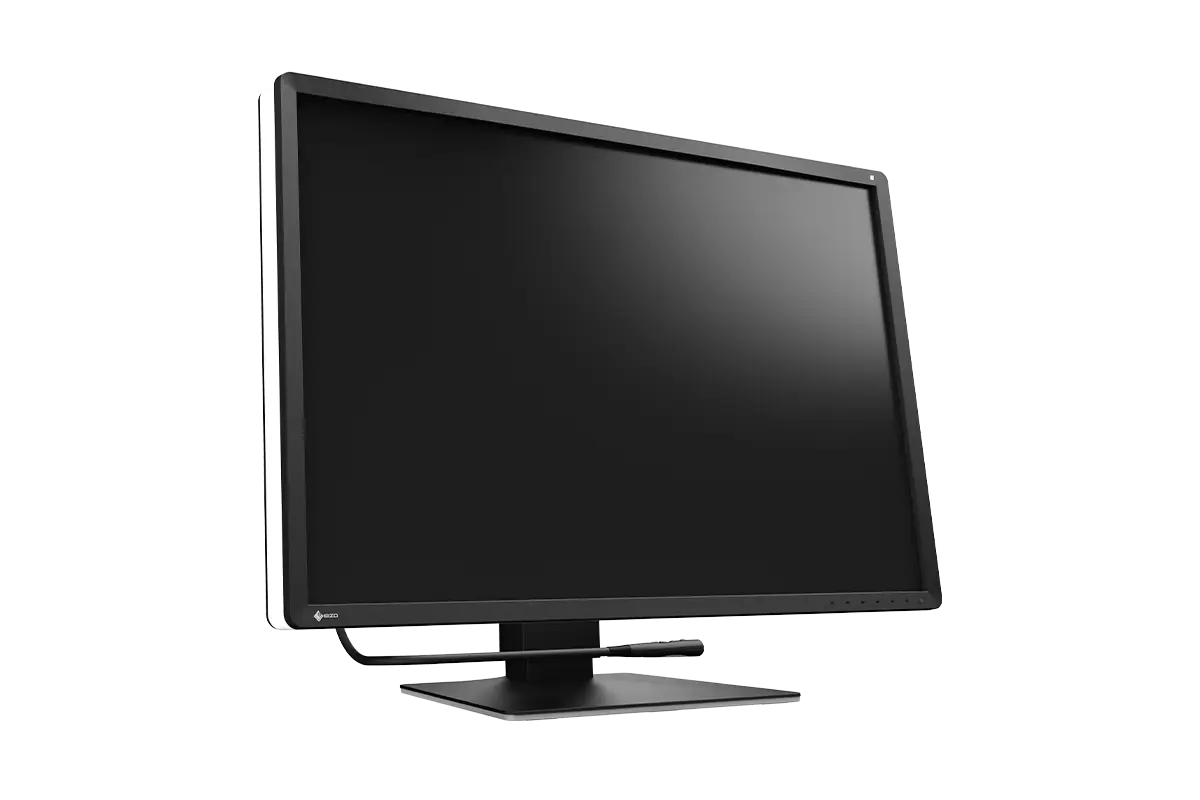

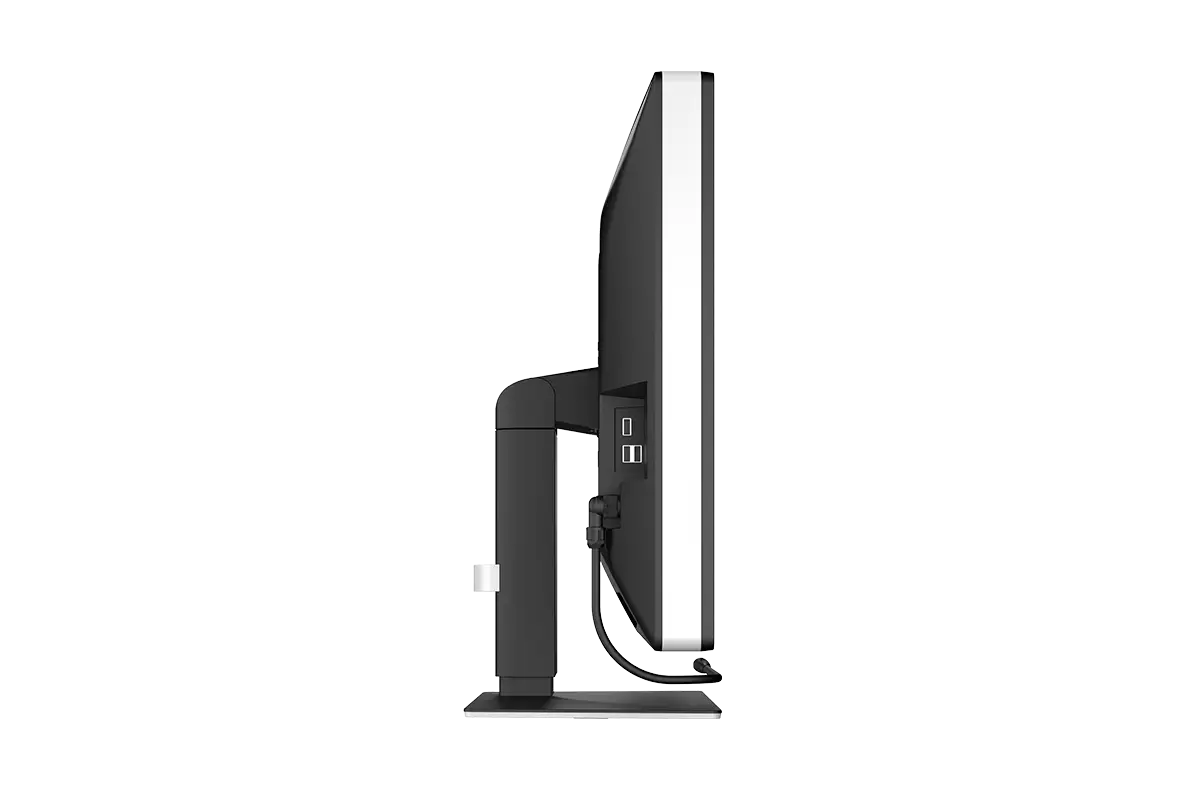

RX670 | RadiForce

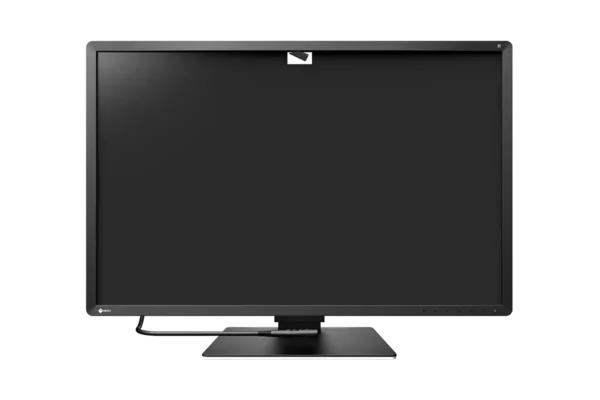

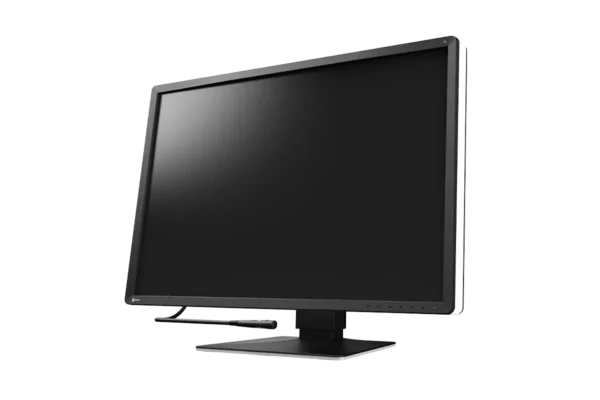

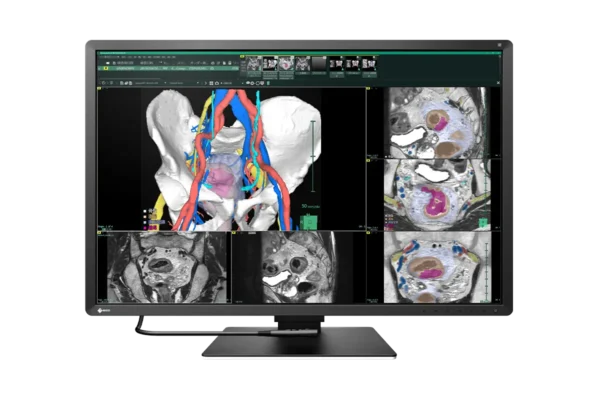

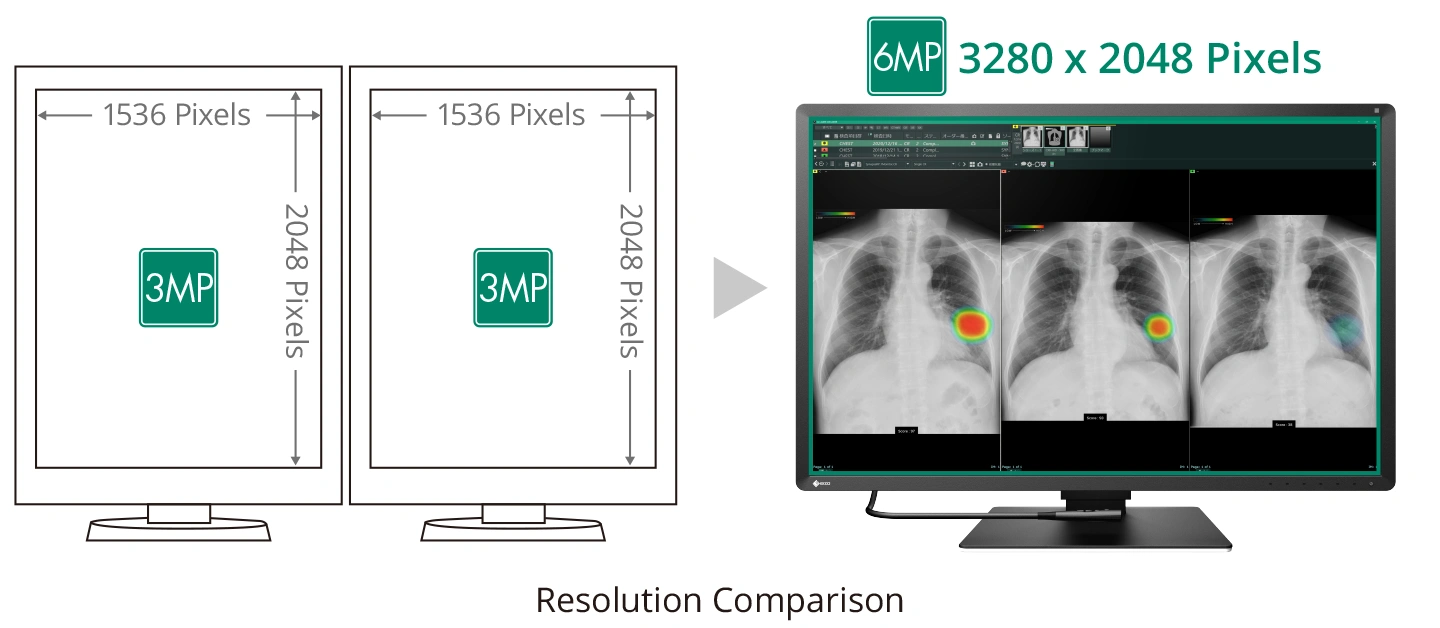

The spacious 30-inch screen displays 6 megapixels (3280 x 2048 pixels) of information. Multi-modality capability enables the simultaneous display of examination images, such as chest X-ray, CT, endoscopy, or ultrasound, offering a high degree of freedom in the layout and facilitating efficient image reading.

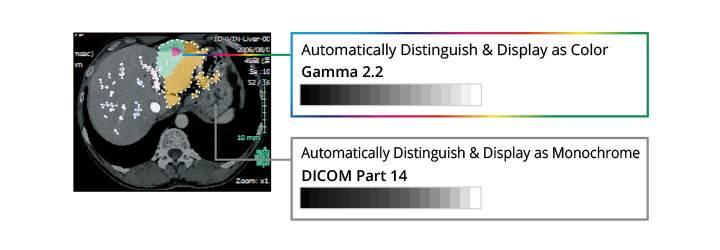

The Hybrid Gamma PXL function automatically distinguishes between monochrome and colour images pixel by pixel, creating a hybrid display where each pixel has optimum grayscale. As a result, monochrome images such as CT, MRI and X-ray are displayed in the ideal grayscale that corresponds to DICOM Part 14, while colour images such as 3D rendering, nuclear medicine, ultrasound and endoscopy are faithfully reproduced corresponding to Gamma 2.2. This helps improve efficiency of viewing both monochrome and color images by displaying them together on the one screen.

The Kumamoto Chuo Hospital, Japan, conducted a visual assessment of the Hybrid Gamma PXL function included with RadiForce monitors. An improvement of approximately 37% was noted when comparing the use of a colour monitor with Hybrid Gamma PXL to one without it. In addition, Hybrid Gamma PXL was found to operate equally as well as monochrome monitors with GSDF when displaying monochrome images.

A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO’s unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored. This allows you to display an image safely on the monitor that is true to the original source data, even at high brightness levels.

MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 1.270 cycles/mm) the MTF increases by over 50%.

EIZO carefully measures and sets each grayscale tone to create a monitor compliant with DICOM Part 14. This ensures the most consistent shading possible, allowing for the most accurate diagnosis.

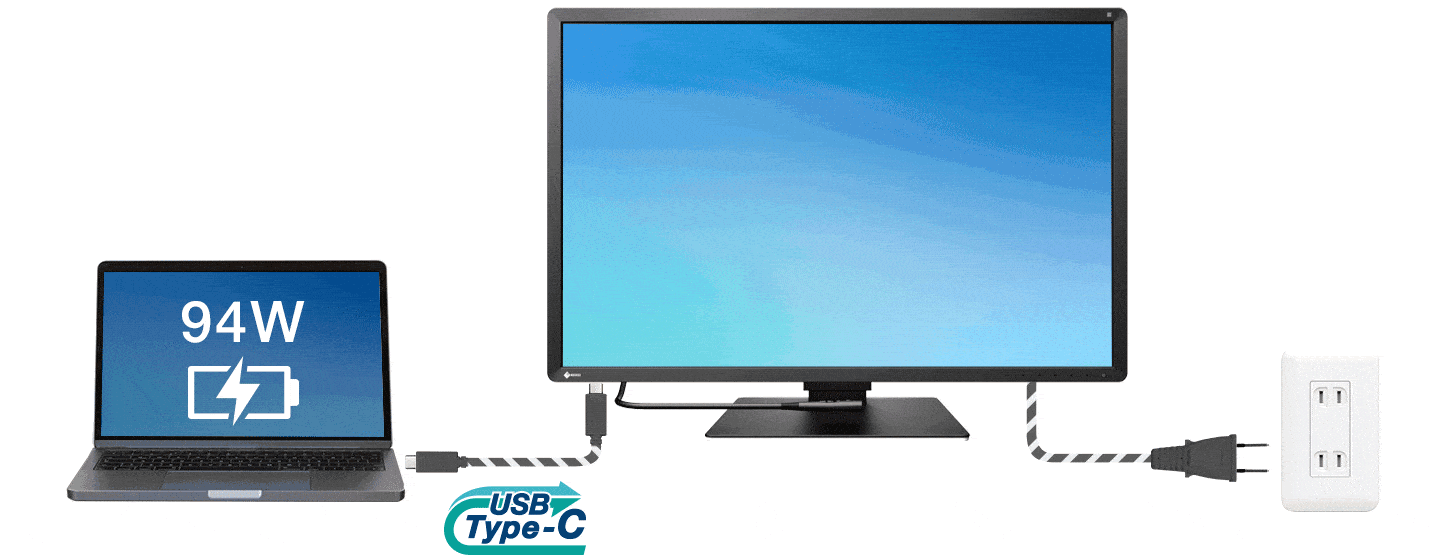

The 94 watt power delivery via USB Type-C reliably charges mobile workstations. This eliminates the need for a mobile workstation’s bulky power supply unit, freeing up space in your bag and on the desk.

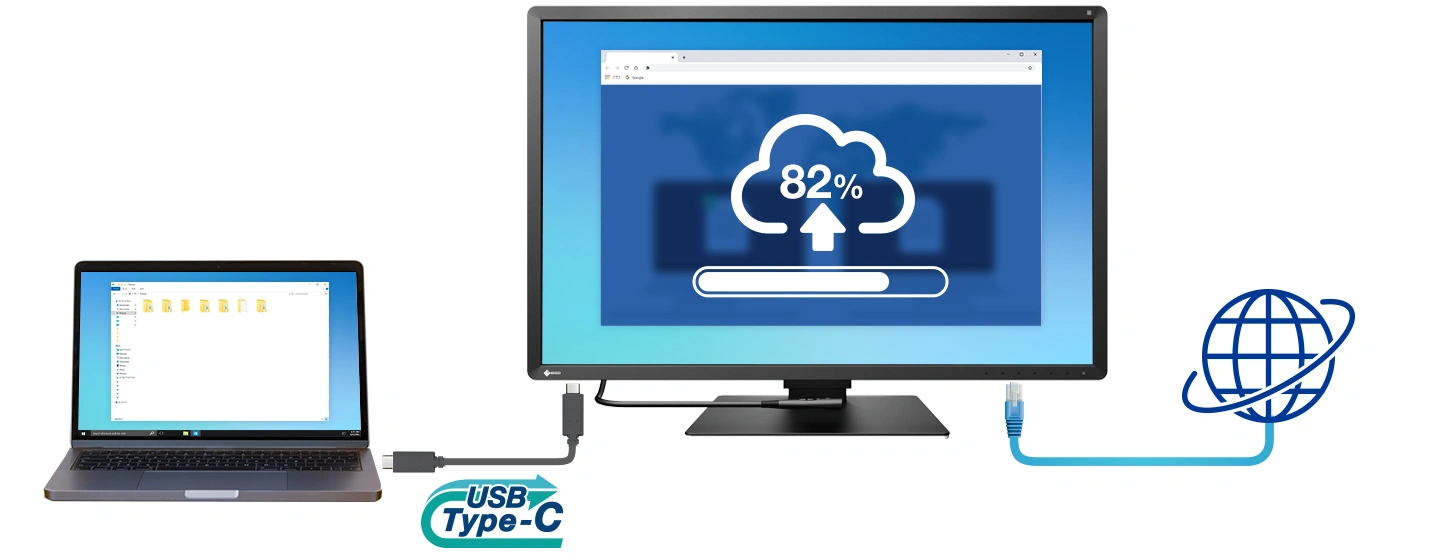

The monitor has LAN port directly built in for a stable wired connection. Connecting mobile workstation via USB Type-C allows access to the network through the monitor, making it useful when security policies require a wired connection.

While many modern mobile workstations are designed to be thinner and more portable, they often have limited connectivity options for peripherals. Connecting a mobile workstation to the monitor via USB Type-C gives access to a hub with three USB Type-A and one USB Type-C ports for easily connecting an external keyboard, mouse, or headset.

The USB Type-C port cannot be used as a USB external device connection when used for daisy-chain connection.

The monitor’s USB Type-C connection supports daisy chaining for easily connecting multiple monitors from a single USB Type-C video signal output of mobile workstations. This allows you to configure a multi-monitor setup without hassle of excess cabling.

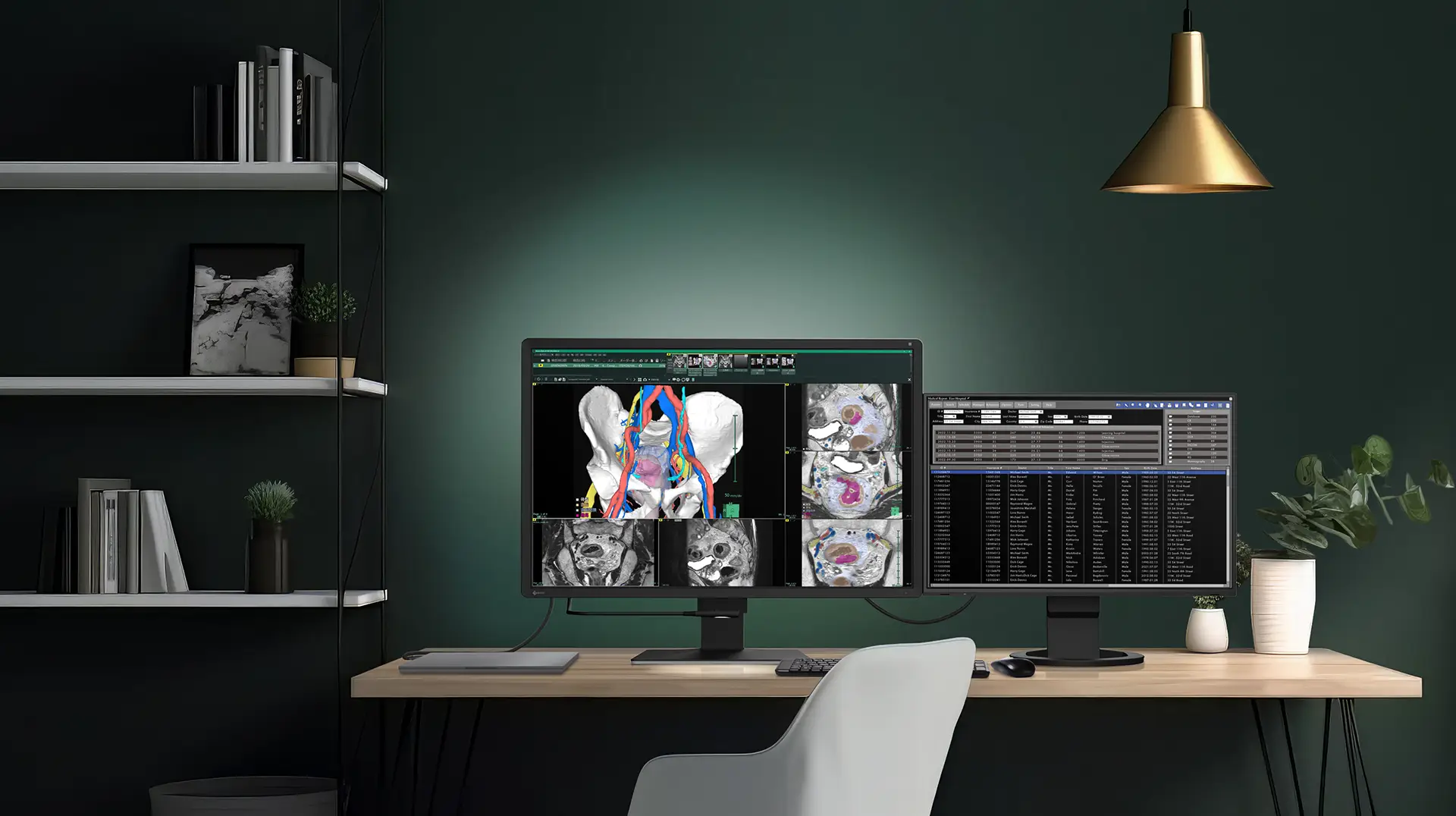

A multi-monitor configuration lets you display multiple screens simultaneously, such as reports, examination lists, and patient charts. This reduces the need to switch windows frequently or scroll compared to the small screen of a mobile workstation, facilitating a boost in efficiency.

As more image modalities become digitalized, radiologists are viewing an increasing amount of information on their screens. EIZO’s unique Work-and-Flow technology alleviates the complexity of the imaging workflow with new functions developed with the radiologist in mind. Users can take advantage of Work-and-Flow features with the RadiForce monitor and bundled RadiCS LE software.

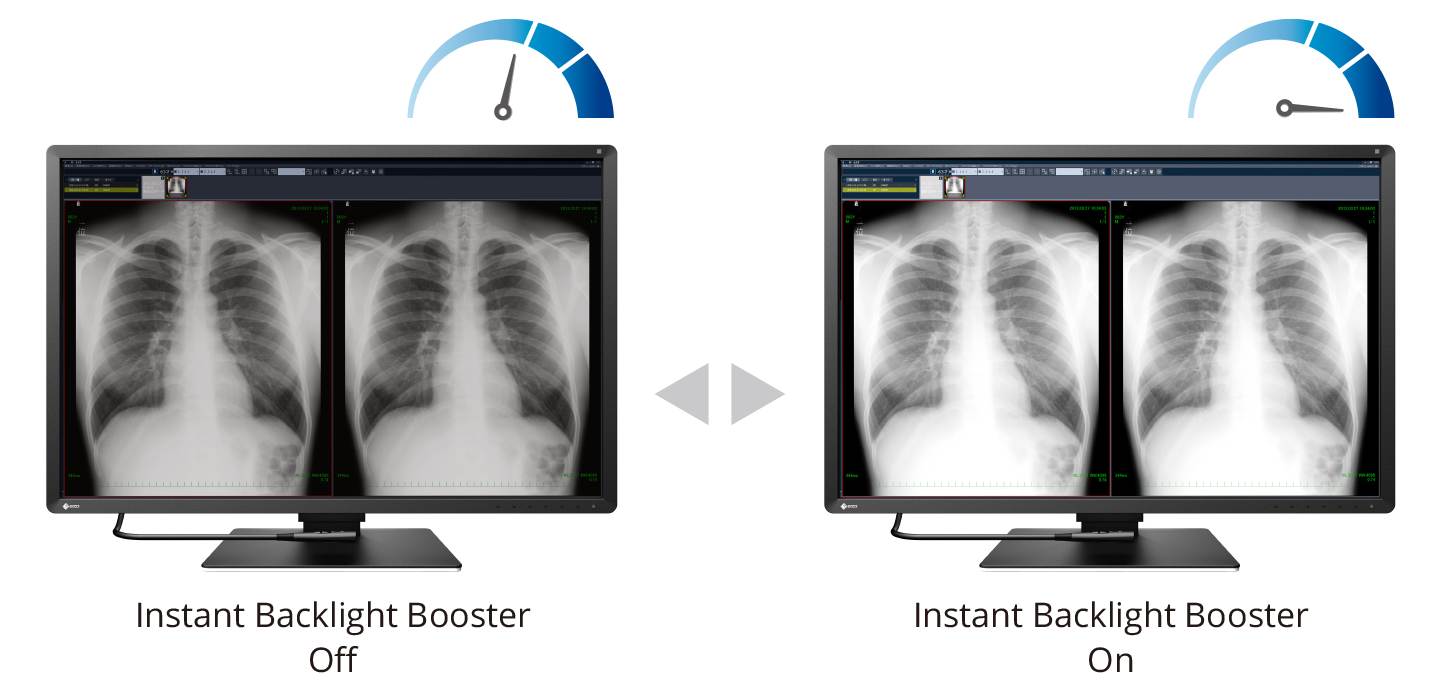

The Instant Backlight Booster function temporarily maxes the brightness of the monitor at the push of a button, allowing users to efficiently view medical images which require higher brightness to distinguish details.

DICOM Part 14 is not supported while Instant Backlight Booster is on.

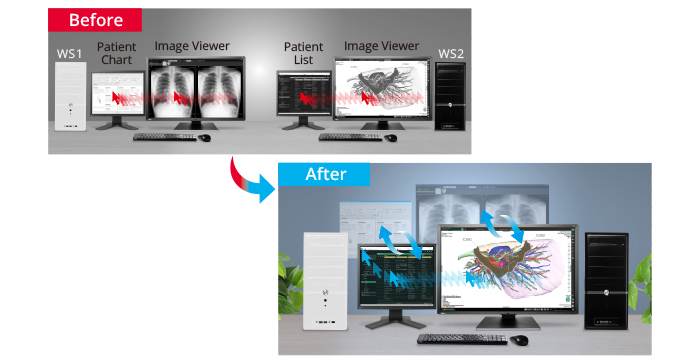

With the Switch-and-Go function USB switching is done within the monitor. This enables users to use a single keyboard and mouse across two PCs. Users can easily work on either PC by simply moving the mouse cursor across the screens. This enhances work efficiency and creates a cleaner workspace.

The Manual Mode Switch function allows you to choose various modes for different modalities such as chest X-ray, CT, endoscopy, and pathology. Modes can be set to automatically switch to optimal image viewing conditions.

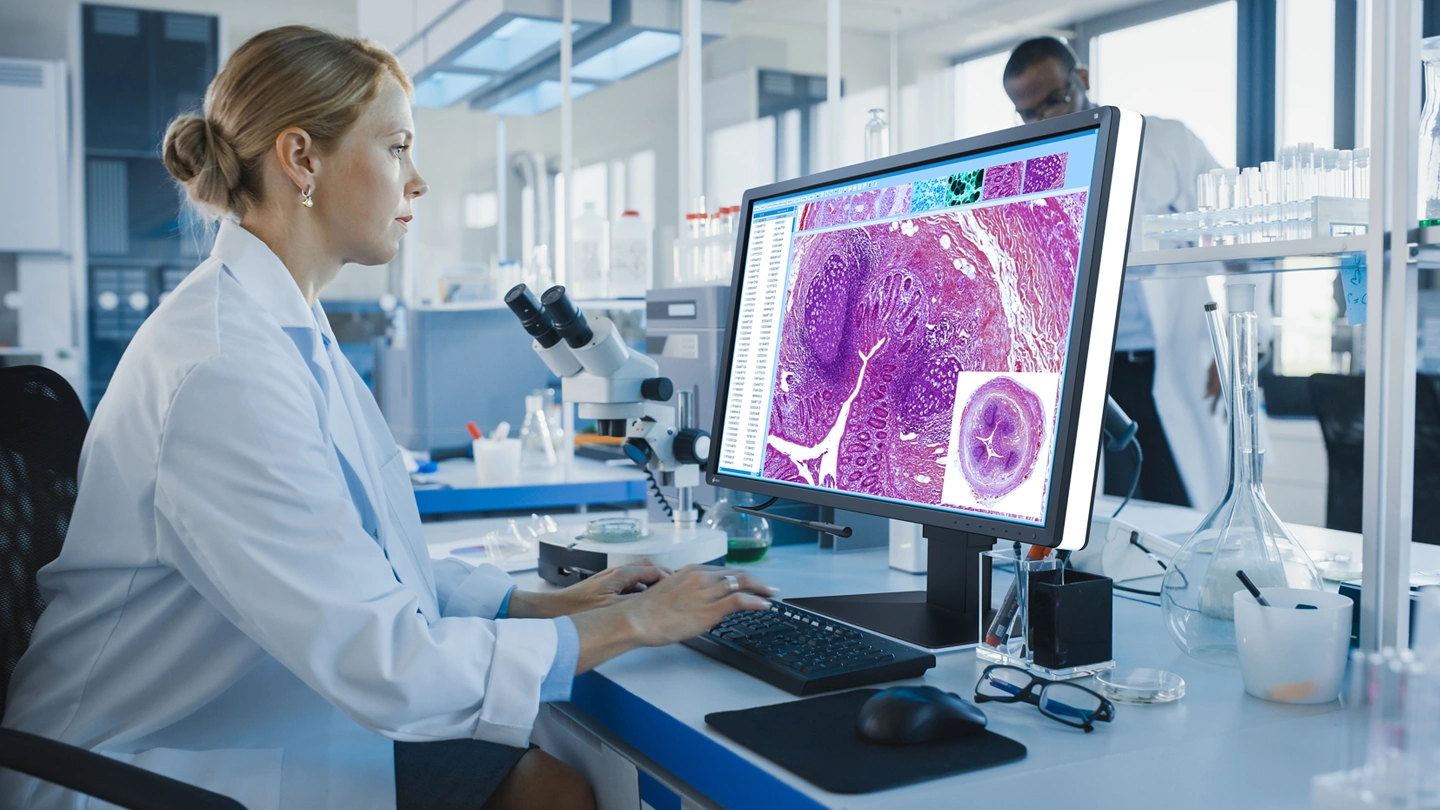

The monitor comes with a preset mode, called Pathology Mode, for the viewing and analysis of microscopic cell and tissue structures. This mode helps support whole slide imaging (WSI), or virtual microscopy, used in pathology for the digital archiving and referencing of highly detailed microscopic images.

This product has not received FDA 510 (k) clearance for Digital Pathology Display.

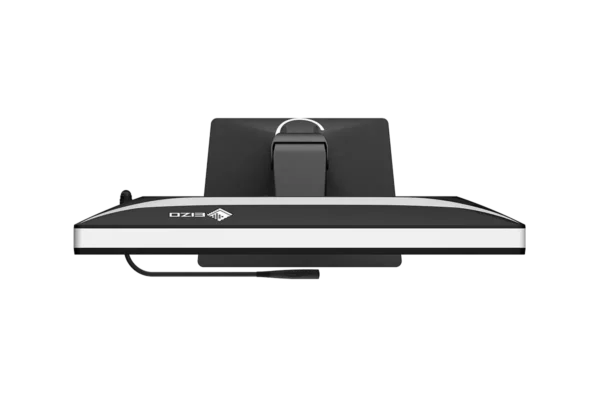

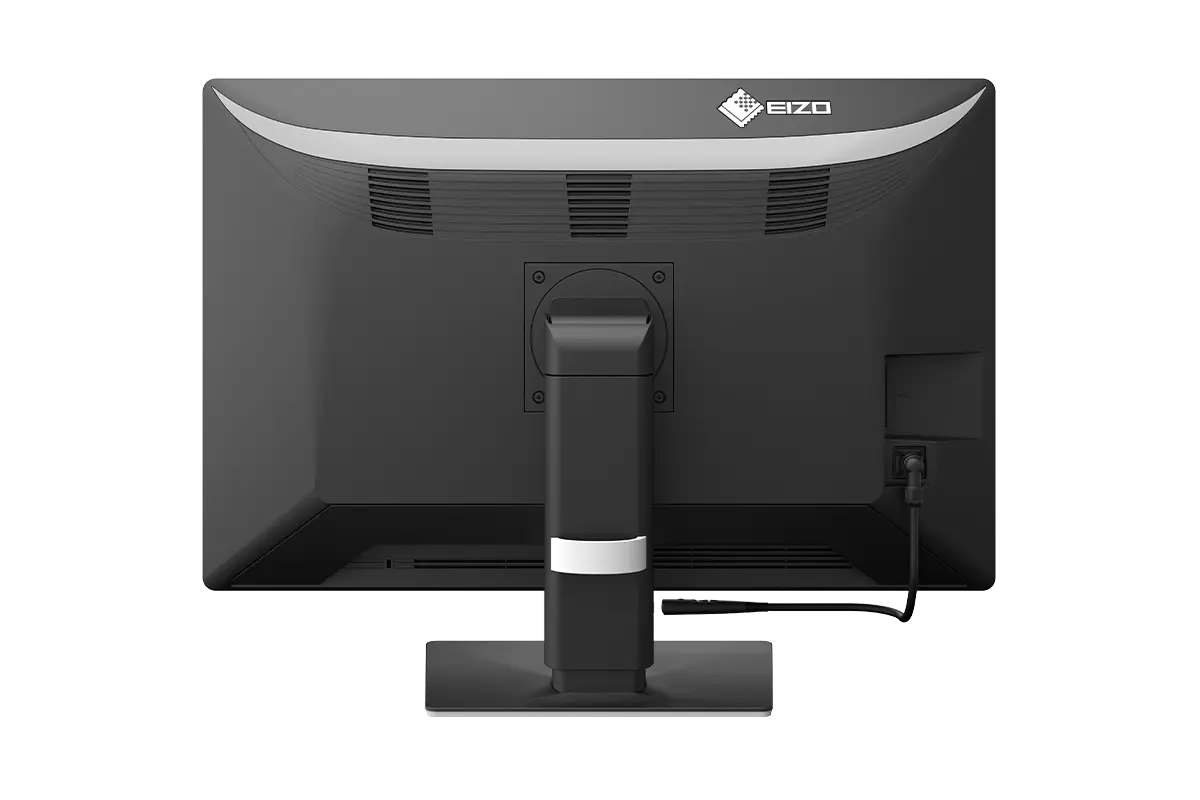

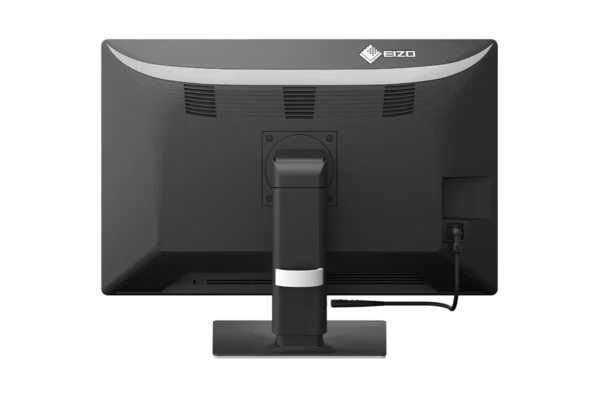

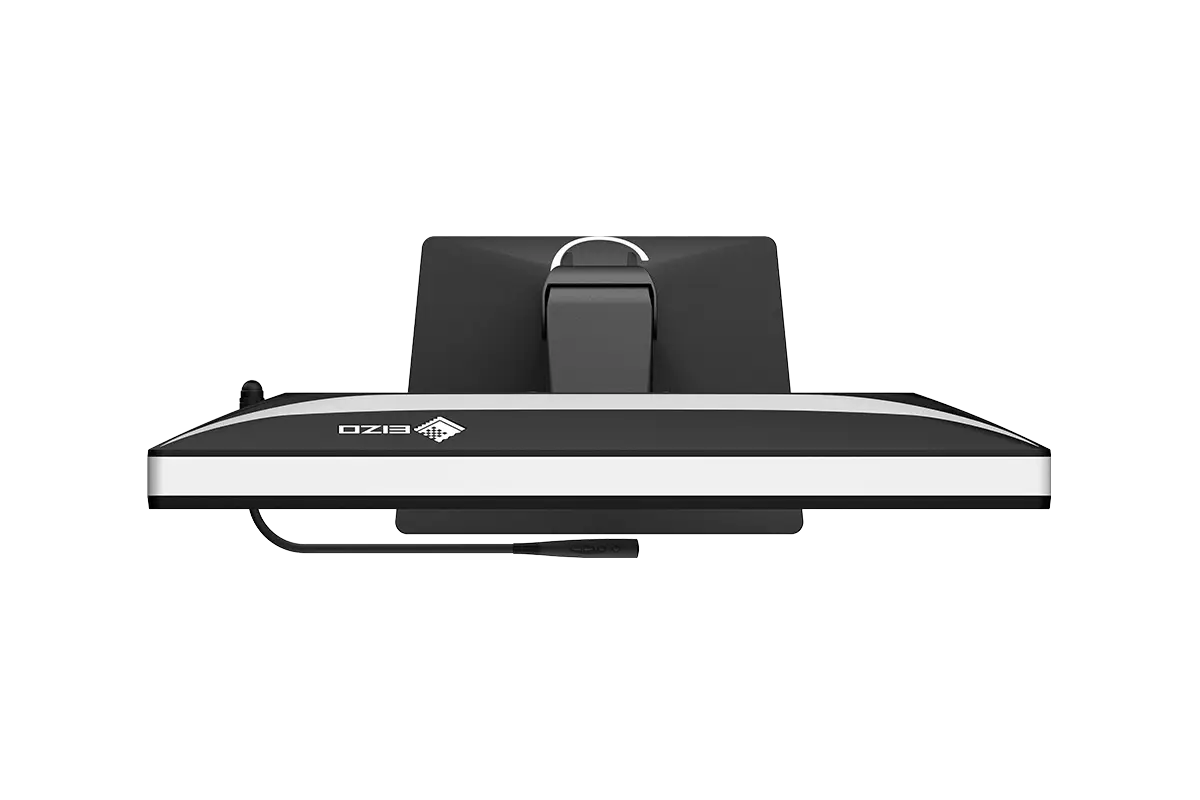

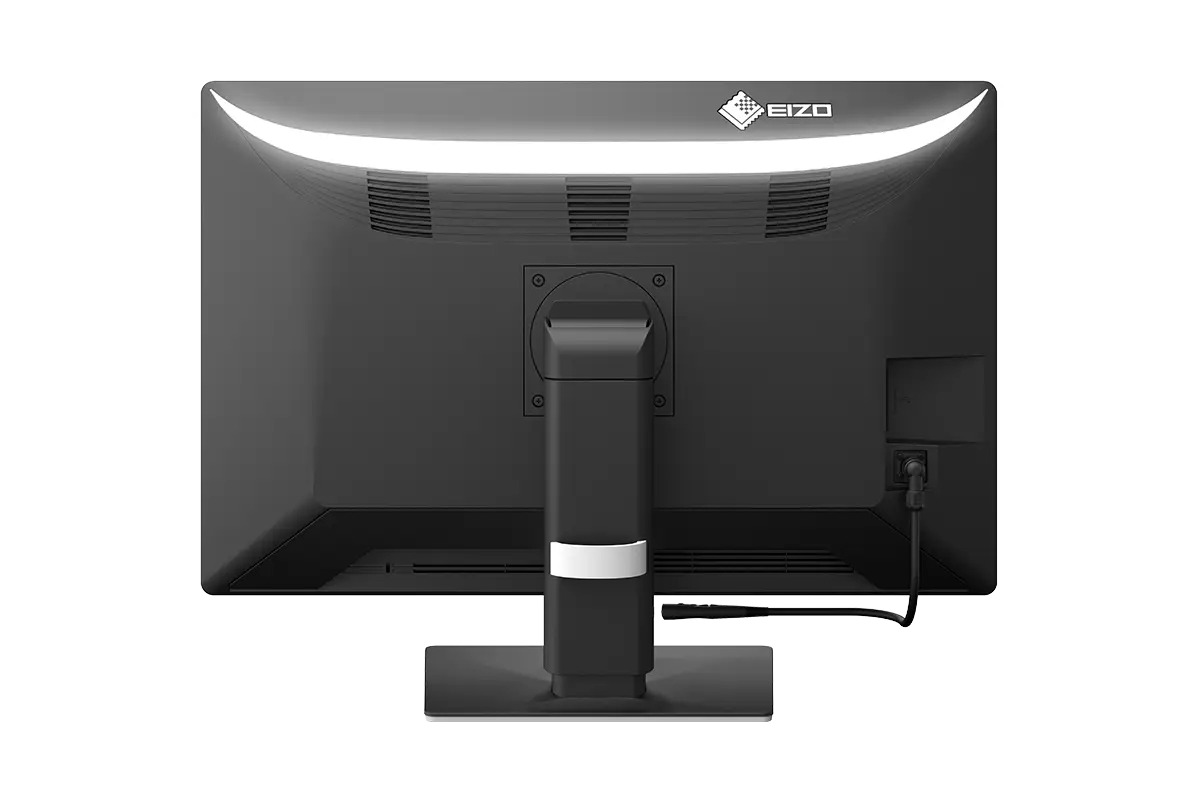

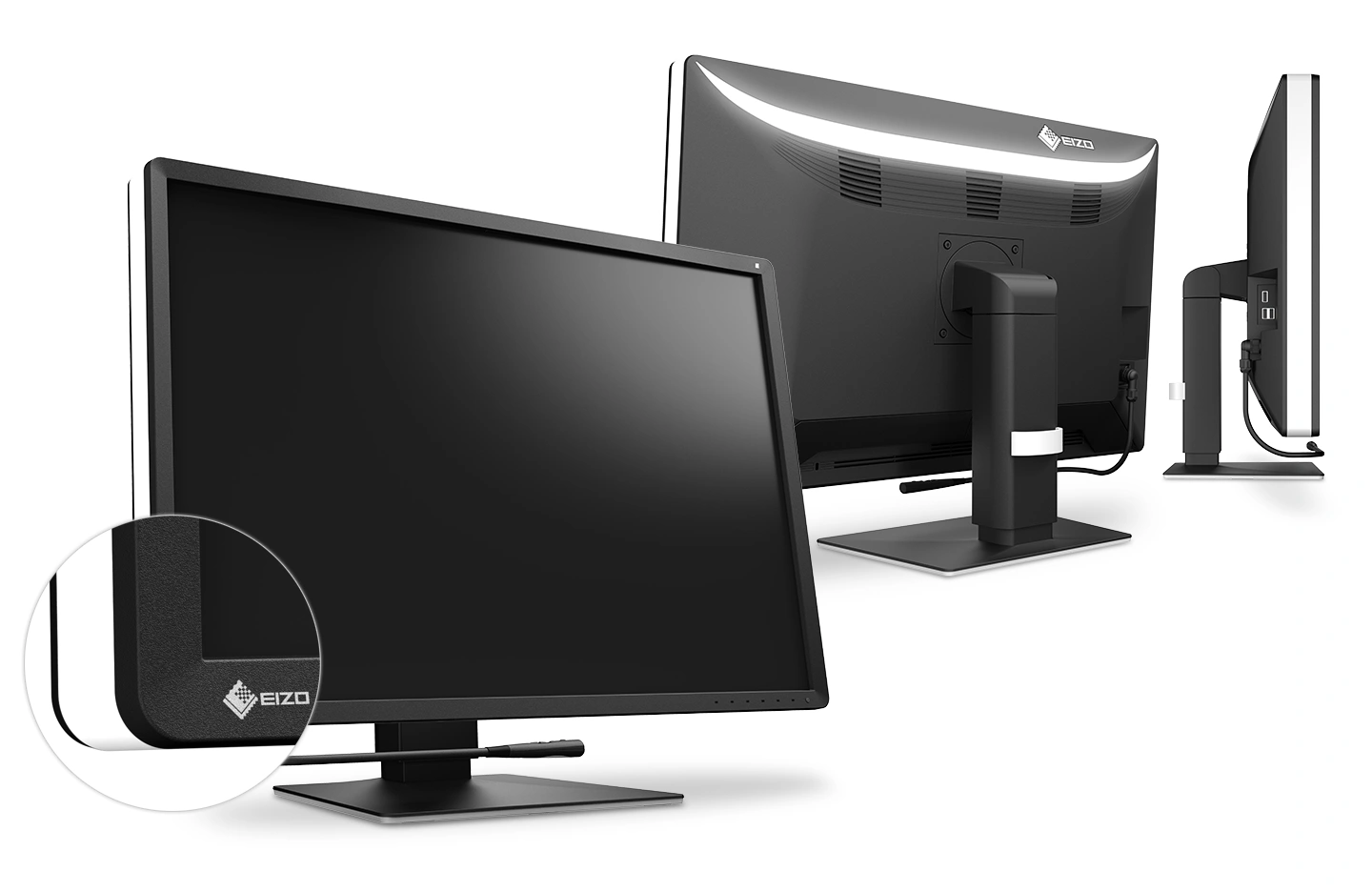

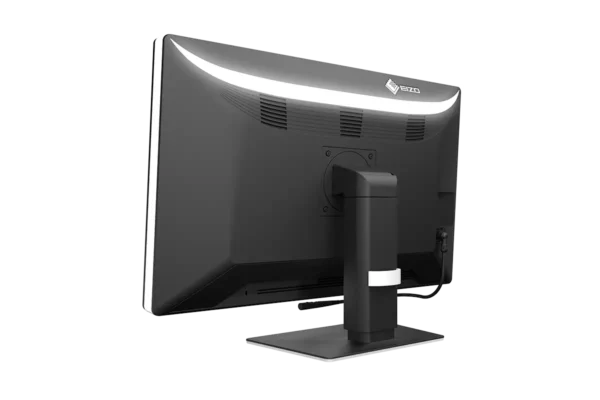

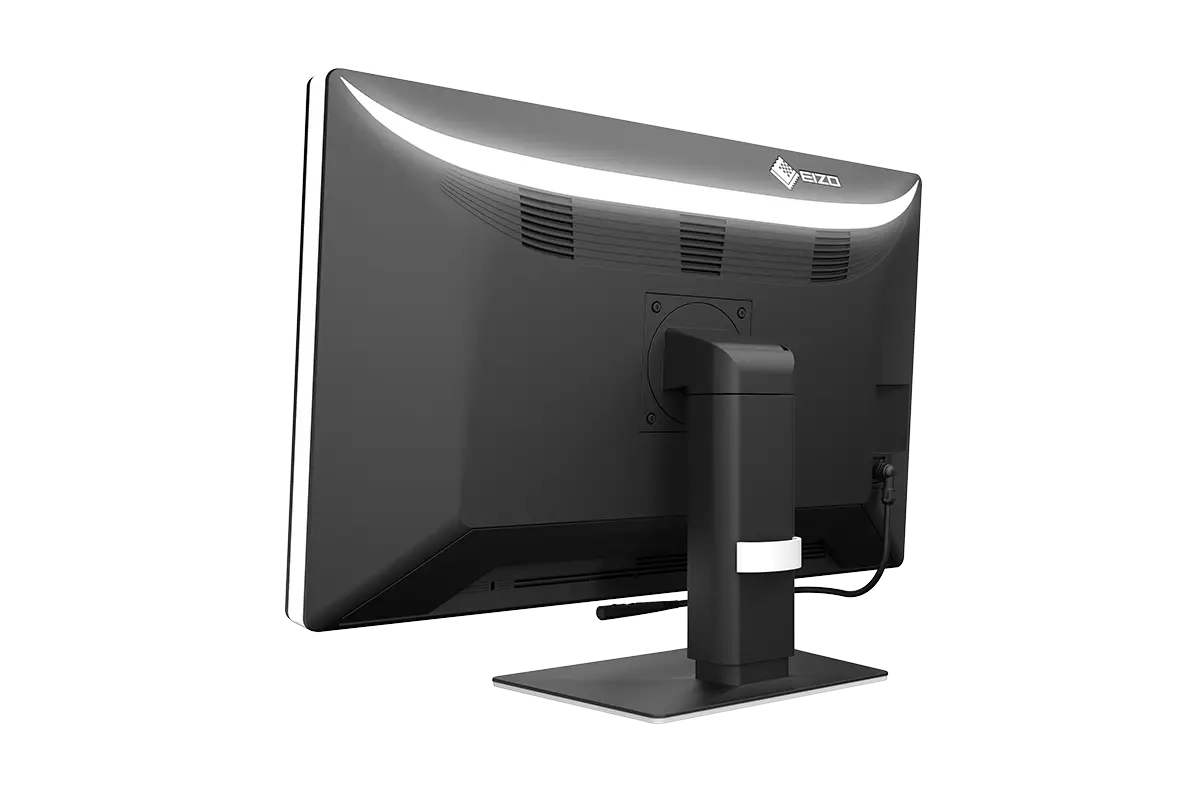

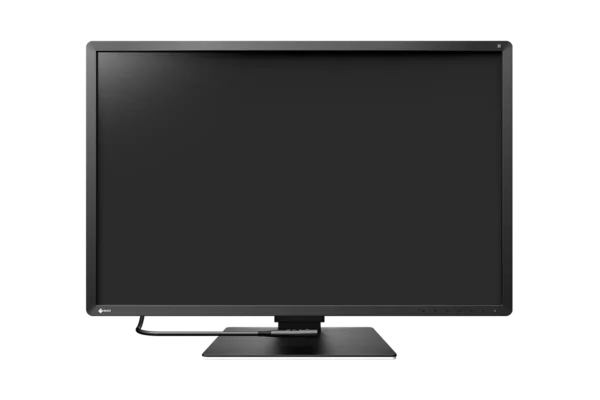

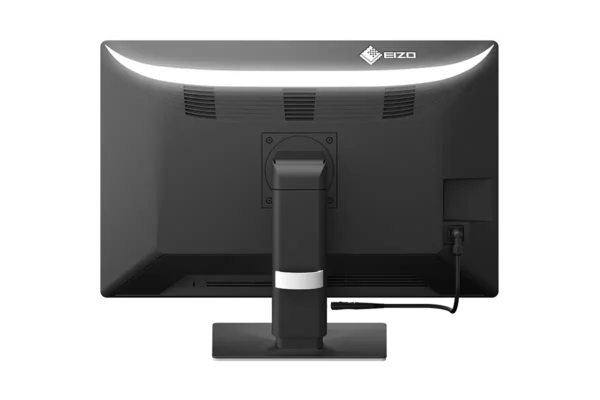

The black front bezels are ideal for viewing the screen in dark reading rooms, making it easier to focus on images, while the original white stripe around the sides of the monitor presents a fresh, clean aesthetic. Rounded corners and elegant curves on the back present a gentle aesthetic and facilitate a comforting environment for patients and medical staff.

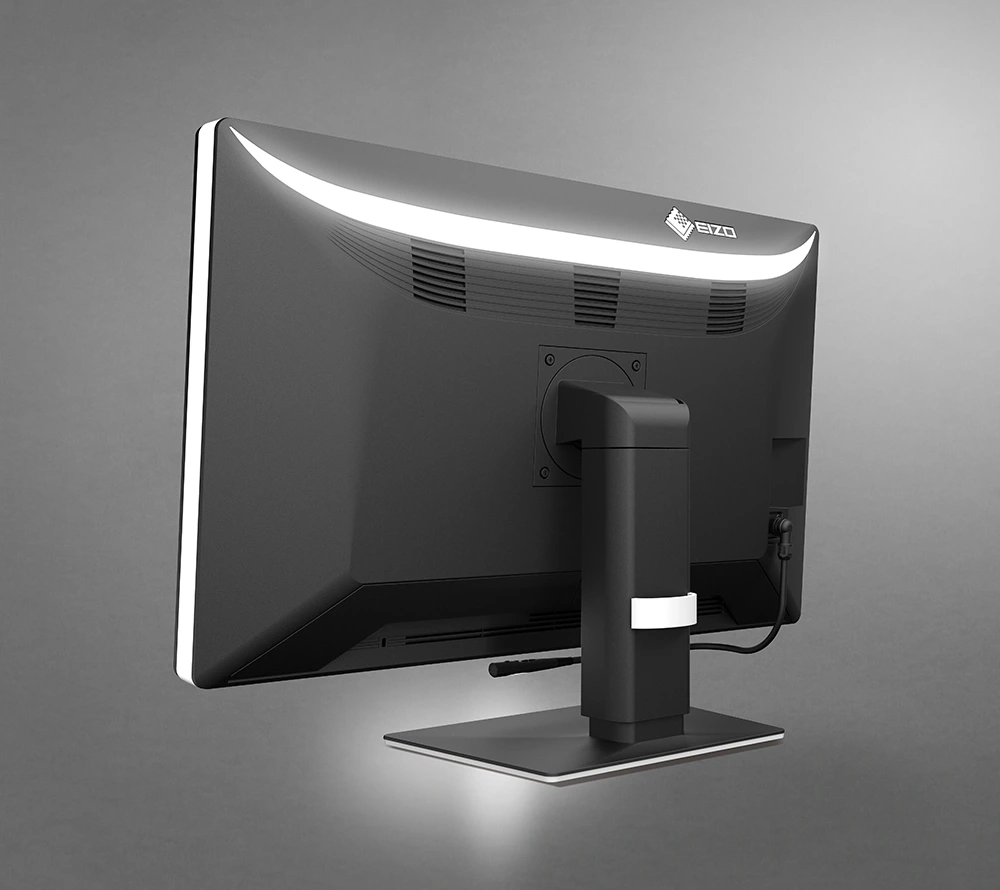

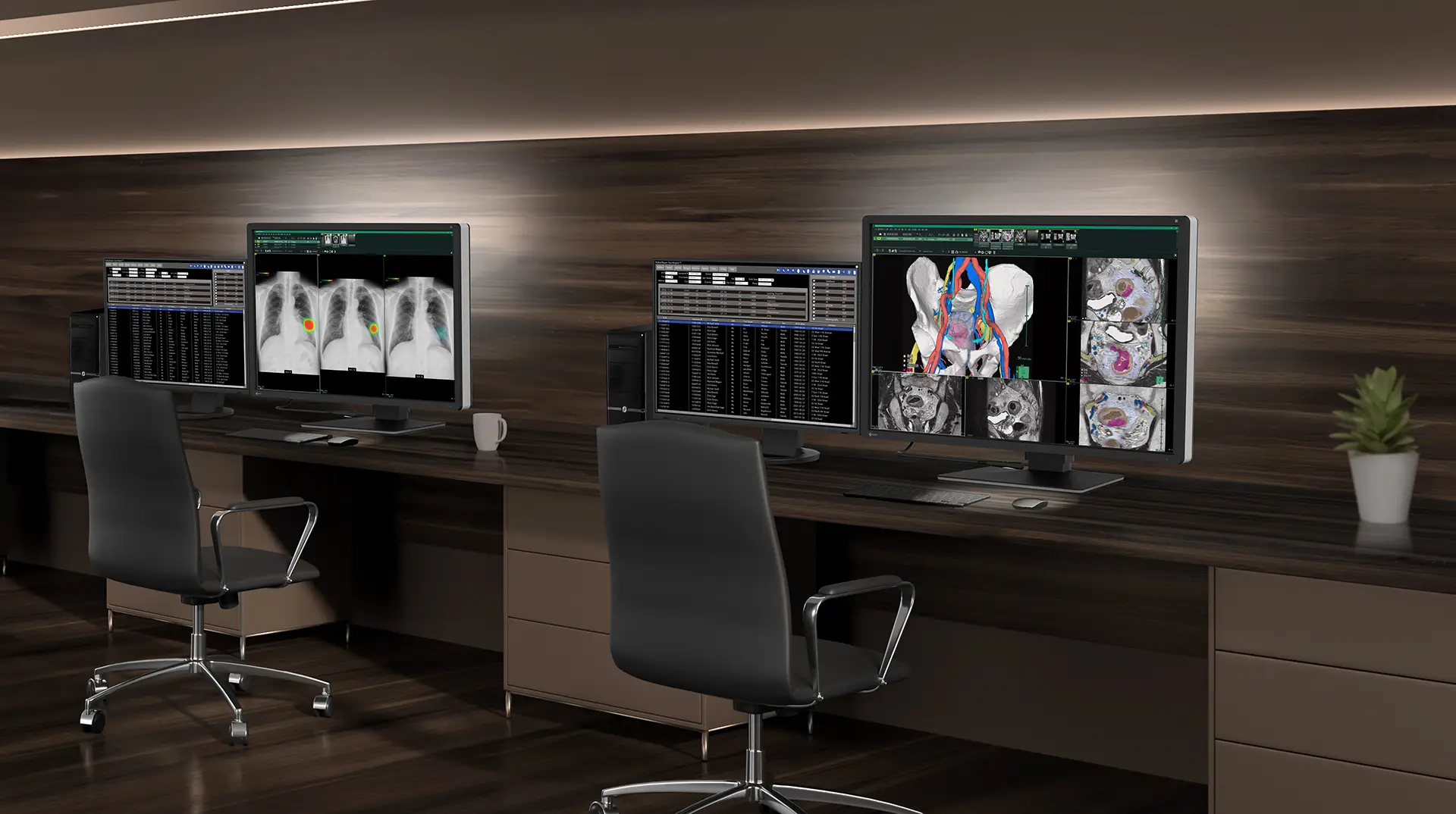

The built-in comfort light gently illuminates the wall behind the monitor without interfering with the low ambient lighting typical of reading rooms. This reduces the contrast between the wall and monitor to prevent eye fatigue without creating glare on the screen.

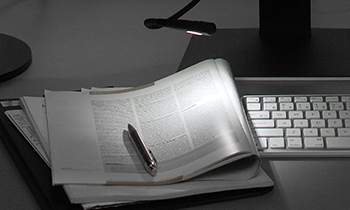

It is also equipped with a spotlight which allows you to see printed documents or your keyboard. The position can be easily adjusted in order to achieve the ideal lighting.

An monitor’s color and brightness characteristics naturally shift with use over time. Since this occurs gradually, it can be difficult to detect when this happens. Implementing a quality control solution ensures that your monitor’s display characteristics stay consistent.

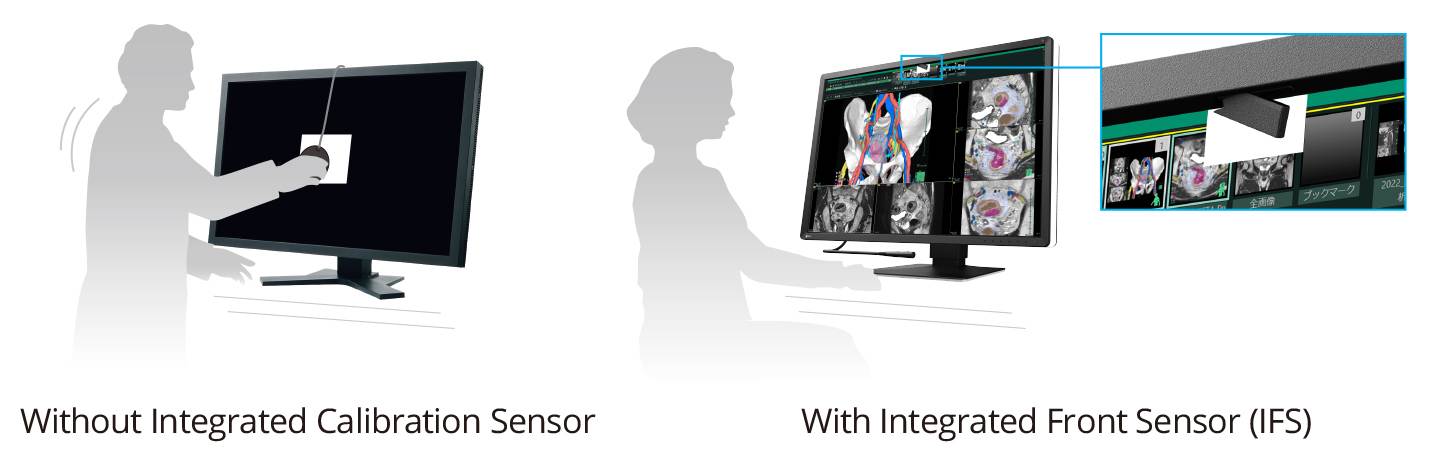

With the Integrated Front Sensor (IFS) built into the front bezel of the RadiForce monitor and RadiCS LE software (included), you can easily calibrate to DICOM Part 14 without having to mount, run, and remove an external sensor.

Simple calibration using the monitor backlight sensor is also supported.

EIZO’s confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.
