Even when ABL engages, editors can optimise luminance handling with a choice of two dimming modes, allowing flexibility to suit different project requirements.

Highlight Dimming
Reduces brightness only in the most luminous areas, preserving detail and tonal integrity in mid- and low-luminance regions.

Uniform Dimming
Adjusts brightness evenly across the entire screen, stabilising the balance between highlights and shadows while maintaining overall tonal integrity for consistent image evaluation.

A blue status indicator lights up whenever ABL control is active, giving creators clear insight into the monitor’s operating state without disrupting the workflow.

The Luminance Warning function uses colour indicators to identify areas that clip at a defined brightness level. In Highlight Dimming mode, it also highlights regions affected by ABL, making both easy to identify. The indicator colour can be set to yellow or magenta.

ABL can affect accurate highlight evaluation if a bright scene causes unexpected dimming. ABL Safe View helps prevent this by reducing the display area to 10% or 25%, lowering the average brightness and reducing the likelihood of ABL activation. This allows creators to preview content at its intended brightness without automatic dimming.

The CG3200X features a QD-OLED panel that delivers 1000 cd/m² peak luminance and 300 cd/m² full-screen white, combined with an exceptional 1,500,000:1 contrast ratio. This enables precise reproduction from intense highlights to deep blacks, providing the rich expressive range for HDR content.

The monitor supports the hybrid log-gamma (HLG) transfer function for broadcasting and the perceptual quantisation (PQ) curve for the production of films and streamed content.

Since SDR content is typically created for display devices with contrast ratios in the range of 1000:1 to 2000:1, it can appear differently on OLED monitors with significantly higher contrast capabilities. The CG3200X allows users to set a custom contrast ratio from 500:1 to 2000:1 in 100-step increments, enabling a more accurate and controlled working representation of SDR content and supporting consistent results across viewing environments.

With conventional OLED monitors, high-contrast edges in text and fine details can exhibit colour fringing. The CG3200X has a dedicated circuit that reduces these artefacts, producing cleaner edges.

The monitor supports 24 Hz and 48 Hz for native display of cinematic content produced at 24 fps. This ensures accurate motion reproduction and artefact-free playback, supporting precise creative decisions in motion, pacing, and shot continuity. As a result, motion can be evaluated exactly as it will appear in final theatrical or streaming delivery.

The AGLR (Anti-Glare, Low-Reflection) screen reduces glare and ambient reflections, ensuring clear and comfortable viewing.

The monitor features EIZO’s built-in calibration sensor to maintain colour accuracy. This eliminates the need for a third-party calibration device and streamlines colour management so editors can stay focused on the creative process. The sensor design has been enhanced, delivering quieter operation for a more focused working environment.

A monitor needs to be calibrated at regular intervals to maintain colour accuracy. EIZO’s proprietary color management software provides an intuitive and highly precise solution to color management. It allows you to schedule automatic recalibration, calibrate all colour modes simultaneously, and conduct correlation with high-end spectrophotometers to match the studio’s internal colour management framework.

Additionally, EIZO’s ColorNavigator API is available for software developers and system managers to integrate ColorNavigator 7 or ColorNavigator Network functions into third-party applications, such as those used for video editing, colour grading, proofing systems, digital graphics, and even remote control. This allows developers to use the API to improve operations throughout the workflow.

The monitor’s wide colour gamut covers 99% of the DCI-P3 standard used in digital cinema and supports the BT.2020 standard used in broadcasting, enabling exceptionally faithful colour reproduction. It also covers 94% of the Adobe RGB colour space, so images and video shot in Adobe RGB will be displayed correctly. Colour mode presets can easily be changed via the switches on the front of the monitor, enabling straightforward colour management for each project.

The CG3200X delivers 10-bit simultaneous display* from a 24-bit look-up table (LUT), enabling the reproduction of over 1 billion colours. This provides 64 times more colour detail than an 8-bit display, resulting in smoother gradations and reduced Delta-E between adjacent colours.

Each ColorEdge monitor undergoes factory gamma adjustment by measuring RGB values across 0–1023 levels. A 16-bit LUT is then applied to ensure optimal tonal accuracy and smooth colour transitions. Every CG3200X includes a Factory Report documenting production measurements, including uniformity, gamma, gamut coverage, and colour temperature, verifying the precision of each unit.

LCD monitors commonly exhibit fluctuations in brightness and chromaticity across the screen, affecting colour accuracy. To counter this, ColorEdge monitors are equipped with EIZO’s patented digital uniformity equaliser (DUE)* technology, which corrects deviations in every tone across the screen to ensure stable display.

Working within the wrong parameters affects editing decisions, potentially requiring significant rework of projects and causing costly delays in production schedules. Pixel Inspection, accessed through the monitor’s OSD, shows the colour information for a pixel from the source input data and from the data as it is displayed on the monitor.

System managers can use this information to verify that the creator’s technical settings match the current project’s predefined colour parameters, reducing the likelihood of project rework due to mismatched technical settings.

The monitor’s Sync Signal function automatically switches colour settings, including brightness, gamma (EOTF), and colour gamut, based on the input signal’s metadata. This eliminates the need for manual adjustments when working across multiple projects, ensuring users are always working with the correct settings. For added flexibility, users can assign specific colour modes to different signal types, enabling customised automatic switching to preset colour modes.

The monitor supports the Nearest Neighbour image scaling method, which enlarges images by directly copying and replicating the original pixels closest to each target pixel position. Because this method avoids colour blending, it preserves the original pixel values, ensuring accurate colour reproduction. When Nearest Neighbour is turned off, interpolation is performed using surrounding pixels, resulting in smoother gradations. Editors can easily select the method best suited to their project via the monitor’s OSD menu.

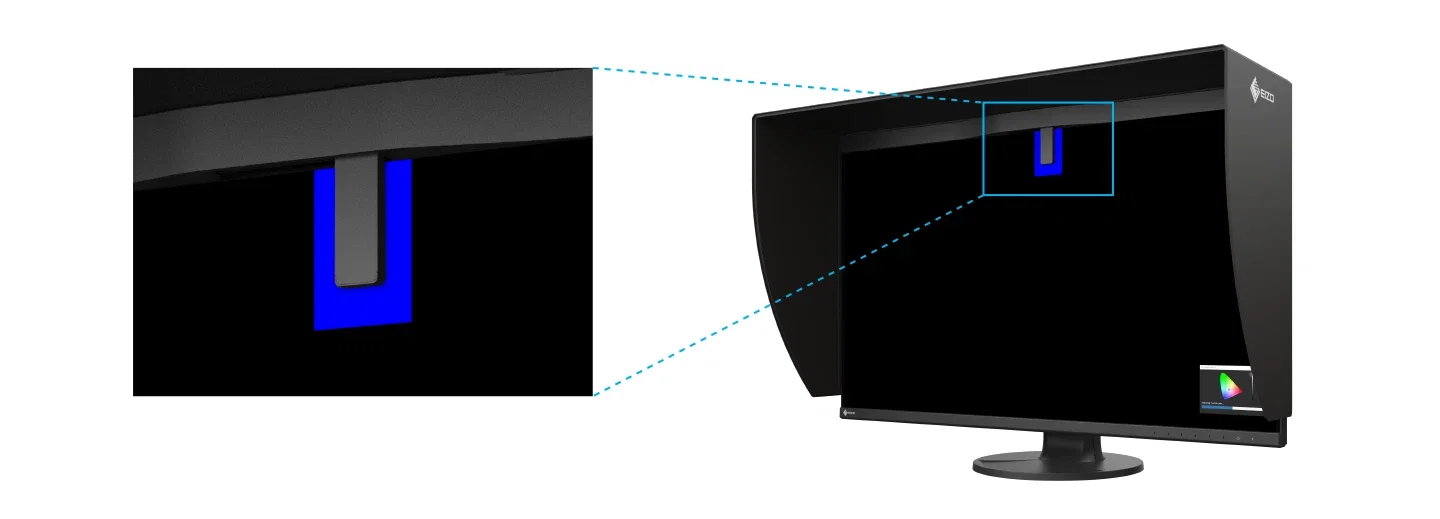

The new 2-sided frameless design minimises borders so your content stays in focus, while the slim upper bezel discreetly houses the built-in calibration sensor. The included magnetic shading hood reduces glare, attaching and detaching easily without complicated assembly. Together, they create a clean, focused workspace that supports accurate and comfortable viewing.

With USB Type-C, a single cable transmits a video signal, USB data, and up to 60 W of power delivery, so you can connect, charge, and create without juggling cords or adapters. This is especially helpful for creators who move between setups or work on laptops in mobile or hybrid environments.

The monitor is also equipped with DisplayPort™ and HDMI inputs. 2 USB Type-A ports are available for connecting peripherals.

An easy-access headphone jack lets you connect headphones directly for convenient audio monitoring during content creation.

The built-in KVM switch function enables a single USB mouse and keyboard to be shared across multiple connected PCs. Connect the peripherals to the monitor’s USB hub and seamlessly switch control between PCs using the monitor’s front buttons.

The monitor incorporates multiple built-in functions to help reduce the risk of image retention and maintain stable panel performance over time.

A screen saver automatically lowers brightness when the image remains unchanged, reducing stress on static pixels. Pixel Shift (wobbling) subtly moves the image position to prevent prolonged use of the same pixels, while Pixel Cleaning (Off Sensing) compensates for panel degradation to sustain image uniformity over time.

To further protect the panel, Thermal Modulation reduces brightness when internal temperatures rise, preventing extended high-temperature operation. Together, these technologies work seamlessly in the background to preserve image quality and extend the lifespan of the OLED panel.

A manufacturer’s 5-year warranty covers all components including the LCD panel. EIZO can guarantee the long service life because it manufactures its products at its own factories, ensuring close control over production quality.
