EV2740S | FlexScan
27-inch · 3840 x 2160 (4K) · IPS
The 27-inch EV2740S is designed to meet the diverse needs of modern workstyles with 4K UHD (3840 x 2160) resolution for exceptional clarity and USB Type-C connectivity for streamlined operation, supporting productivity and setting a new standard for business excellence.
Exceptional Clarity. Smooth Operation.
The 27-inch EV2740S features 4K UHD (3840 x 2160) resolution, expanding workspace by displaying four times the information of Full HD. USB Type-C connectivity streamlines operation, offering video, peripheral hub functionality, and power delivery. This monitor also achieves top-tier sustainability certifications, making it an efficient and environmentally conscious display solution.
Where to buy
PARTNERS
EIZO SALES TEAM
FlexScan Solutions
From the workplace to your home office.
42.5-inch · IPS · 3840 x 2160 (4k)
The EV4340X features a spacious 42.5-inch screen with 4K resolution and USB Type-C connectivity for streamlined viewing and operation for the modern business professional.
34.1-inch · IPS · 3440 x 1440 (UWQHD)
The 34.1-inch EV3450XC is EIZO's first monitor with a built-in webcam and microphone. Combined with USB Type-C docking and LAN capabilities, this ultrawide UWQHD (3440 x 1440) curved monitor offers streamlined viewing and communication for the modern business professional.
27-inch · IPS · 3840 x 2160 (4K UHD)
The FlexScan EV2740X is designed to be sustainable throughout the entire product lifecycle. With 4K UHD resolution and a built-in USB-C docking station, it is perfectly suited for modern business needs.
31.5-inch · IPS · 3840 x 2160 (4K UHD)
The FlexScan EV3240X is designed to be sustainable throughout the entire product lifecycle. With 4K UHD resolution and a built-in USB-C docking station, it is perfectly suited for modern business needs.
37.5-inch · IPS · 3840 x 1600
The 37.5-inch EV3895 is EIZO's first ultrawide, curved monitor. This UWQHD+ (3840 x 1600) monitor has USB Type-C docking and LAN capabilities to match the workstyles of professionals.
27-inch · IPS · 2560 x 1440
Thanks to the USB-C ports and USB-C daisy chain functionality, the EV2795 doesn’t require any complex cabling and shines with its virtually frameless design.
27-inch · IPS · 2560 x 1440
State-of-the-art connectivity with USB-C upstream including DisplayPort signal and Power Delivery. Your advantage: convenient multi-purpose connectivity, whether in the home office or in the office.
24.1-inch · IPS · 1920 x 1200
The EV2495 is a declaration of performance. Thanks to its USB-C ports and the USB-C daisy chain functionality, this monitor ensures there are fewer cables and more space on the desk.
23.8-inch · IPS · 1920 x 1080 (Full HD)
Perfect picture quality, ergonomics and connectivity. The ideal companion for the modern office enables multi-screen solutions via USB-C daisy chain without complex cabling.
24.1-inch · IPS · 1920 x 1200
With USB-C upstream, DisplayPort and HDMI inputs, as well as four USB downstream ports, the EV2485 offers exemplary connectivity. In addition, the image quality, ergonomics and energy-saving options are outstanding.
23.8-inch · IPS · 1920 x 1080 (Full HD)
The EV2480’s USB-C port allows you to use it as a docking station for tablets and laptops. Power, video and audio, as well as keyboards and mice, can be connected to the computer with a single cable.
23.8-inch · IPS · 1920 x 1080 (Full HD)
The EV2460 offers a wide range of connection options thanks to DisplayPort, HDMI, DVI-D and D-sub signal inputs as well as four USB downstream ports.
22.5-inch · IPS · 1920 x 1200
The 22.5” EV2360 with a 16:10 aspect ratio delivers a pin-sharp resolution of 1920 x 1200 pixels. A true all-round monitor for the office.
21.3-inch · IPS · 1600 x 1200
This 21.3-inch square monitor with 1600 x 1200 resolution features wide viewing angles and anti-glare for clear display. A 5-year warranty and long-term supply ensures it can be used in back offices and control rooms reliably throughout the long life of the system or application.
15-inch · VA · 1024 x 768
The FlexScan S1504 is a 15-inch square monitor with 1024 x 768 resolution. With a 5-year warranty and long-term supply, it is the perfect choice for back offices and control rooms.
34.1-inch · 3440 x 1440 (UWQHD+) · IPS
The EIZO FlexScan EV3451X is a 34.1" ultrawide curved UWQHD monitor with USB-C docking, built-in KVM, LAN port, and the world's first 7-year monitor warranty.
37.5-inch · 3840 x 1600 (UWQHD+) · IPS
The EIZO FlexScan EV3851X is a 37.5" ultrawide curved UWQHD+ monitor with USB-C docking, built-in KVM, LAN port, and the world's first 7-year monitor warranty.
23.8-inch · 1920 x 1080 (Full HD) · IPS
The EV2400R is a 23.8-inch Full HD (1920 x 1080) resolution monitor that balances energy efficiency, ergonomic comfort, and image precision. From its ultra-low power use and recycled materials to features like Auto EcoView and reduced blue light, it’s built to deliver both performance and environmental responsibility in equal measure.
24.1-inch · WUXGA (1920 x 1200) · IPS
The 24.1-inch EV2410R is a WUXGA (1920 x 1200 pixel) monitor that supports long-term supply to offices and combines high versatility with elegance.
27-inch · 2560 x 1440 (WQHD) · IPS
The 27-inch EV2720S is a WQHD (2560 x 1440 pixel) monitor equipped with USB Type-C® for improving productivity and comfort at the office or at home.
23.8-inch · 1920 x 1080 (Full HD) · IPS
The FlexScan FLT is the world's first desktop monitor to achieve the highest classification of the European energy label. The classification in energy efficiency class A stands for exceptionally low power consumption.
22.5-inch · IPS · 1920 x 1200
The 22.5” EV2360 with a 16:10 aspect ratio delivers a pin-sharp resolution of 1920 x 1200 pixels. A true all-round monitor for the office.
23.8-inch · IPS · 1920 x 1080 (Full HD)
The EV2460 offers a wide range of connection options thanks to DisplayPort, HDMI, DVI-D and D-sub signal inputs as well as four USB downstream ports.
23.8-inch · IPS · 1920 x 1080 (Full HD)
The EV2480’s USB-C port allows you to use it as a docking station for tablets and laptops. Power, video and audio, as well as keyboards and mice, can be connected to the computer with a single cable.
24.1-inch · IPS · 1920 x 1200
With USB-C upstream, DisplayPort and HDMI inputs, as well as four USB downstream ports, the EV2485 offers exemplary connectivity. In addition, the image quality, ergonomics and energy-saving options are outstanding.
27-inch · IPS · 2560 x 1440
Thanks to the USB-C ports and USB-C daisy chain functionality, the EV2795 doesn’t require any complex cabling and shines with its virtually frameless design.
Monitor Series
Productivity Meets Comfort

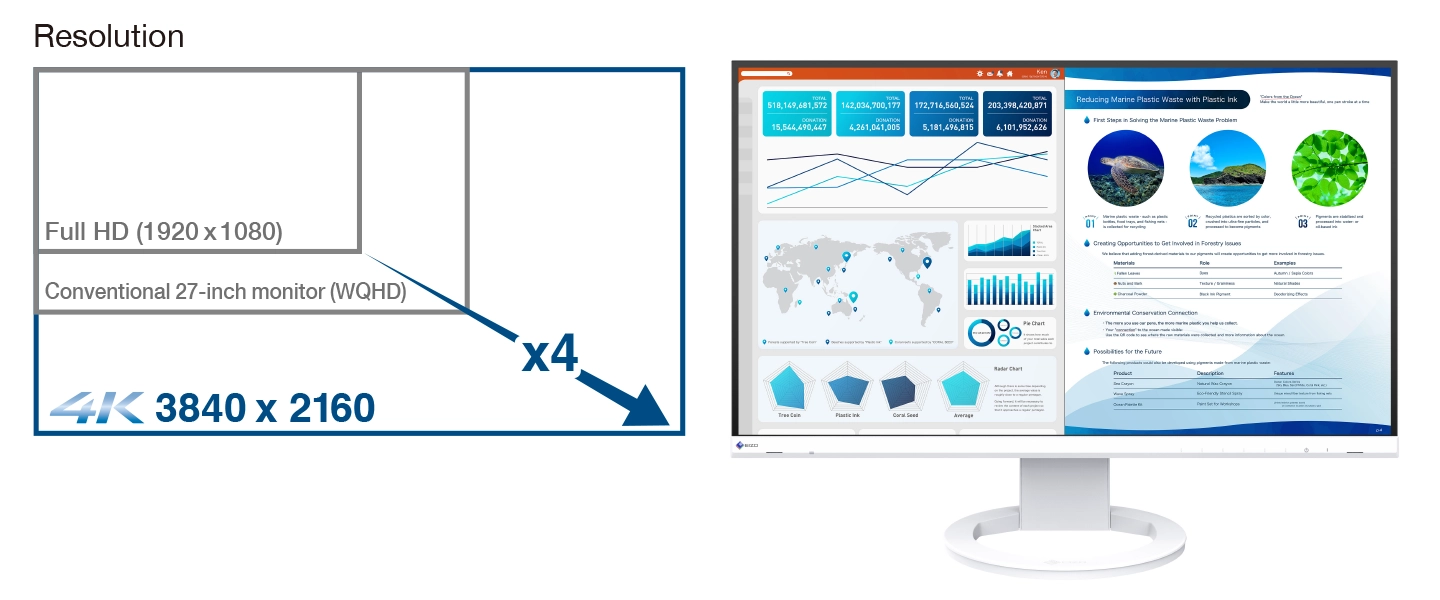

1. Tackle More with 4K
Work Effectively on a 27-inch 4K Screen
When working with multiple windows simultaneously, the amount of information that can be displayed on one screen directly impacts productivity. The 27-inch EV2740S supports 4K (3840×2160) resolution, displaying four times the amount of information of Full HD (1920 x 1080). This reduces the need to scroll or switch windows frequently and helps enhance your workflow efficiency.

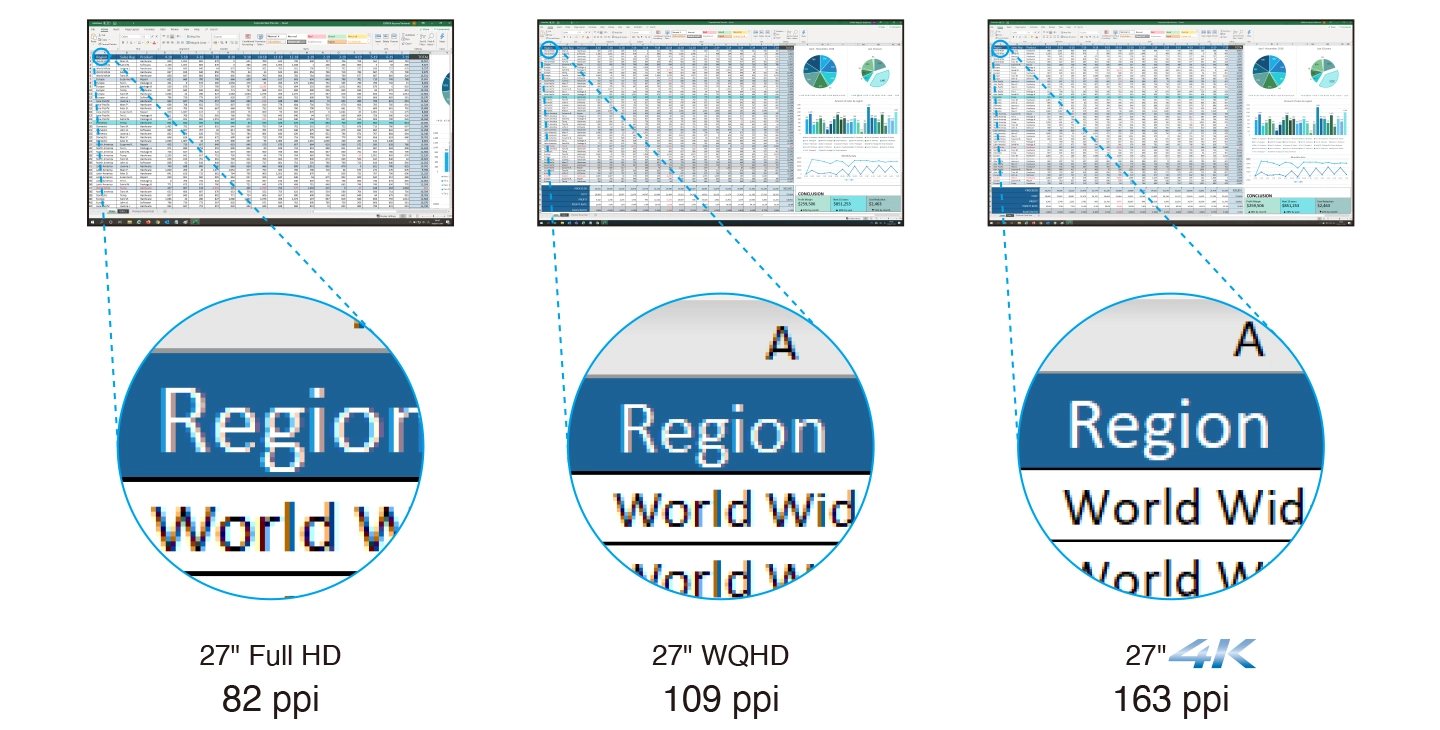

Text, Icons, and Images in Crisp Detail
The 27-inch monitor has a pixel density of 163 ppi, almost twice the number of concentrated pixels compared to a Full HD monitor of similar size. This ensures even the smallest text and icons are displayed in crisp detail.
2. Get Connected. Get Started.
The monitor is equipped with a USB Type-C® connection that allows users to display video, playback audio, transmit USB signals, and supply power to connected devices. This convenient multi-purpose connectivity makes it faster and easier to connect your laptop when moving between workstations or working away from the office.

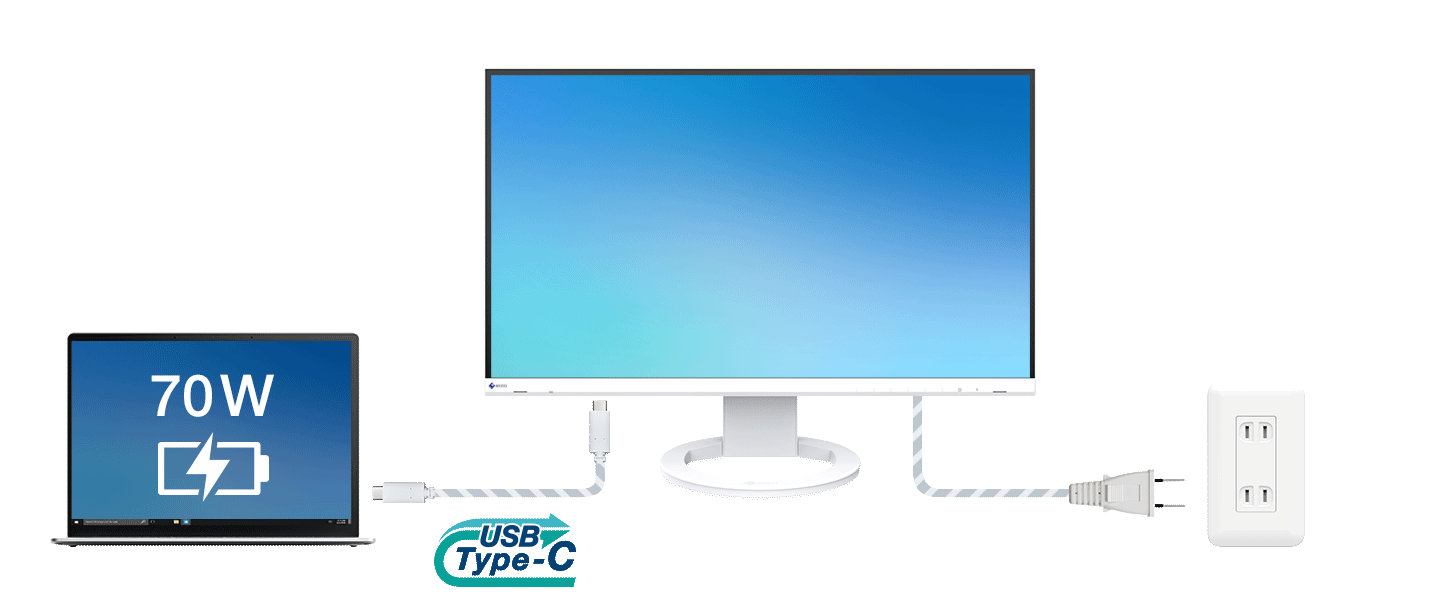

Power Delivery
The 70 watt power delivery via USB Type-C reliably charges laptops. This eliminates the need for a laptop’s bulky power supply unit, freeing up space in your bag and on your desk.

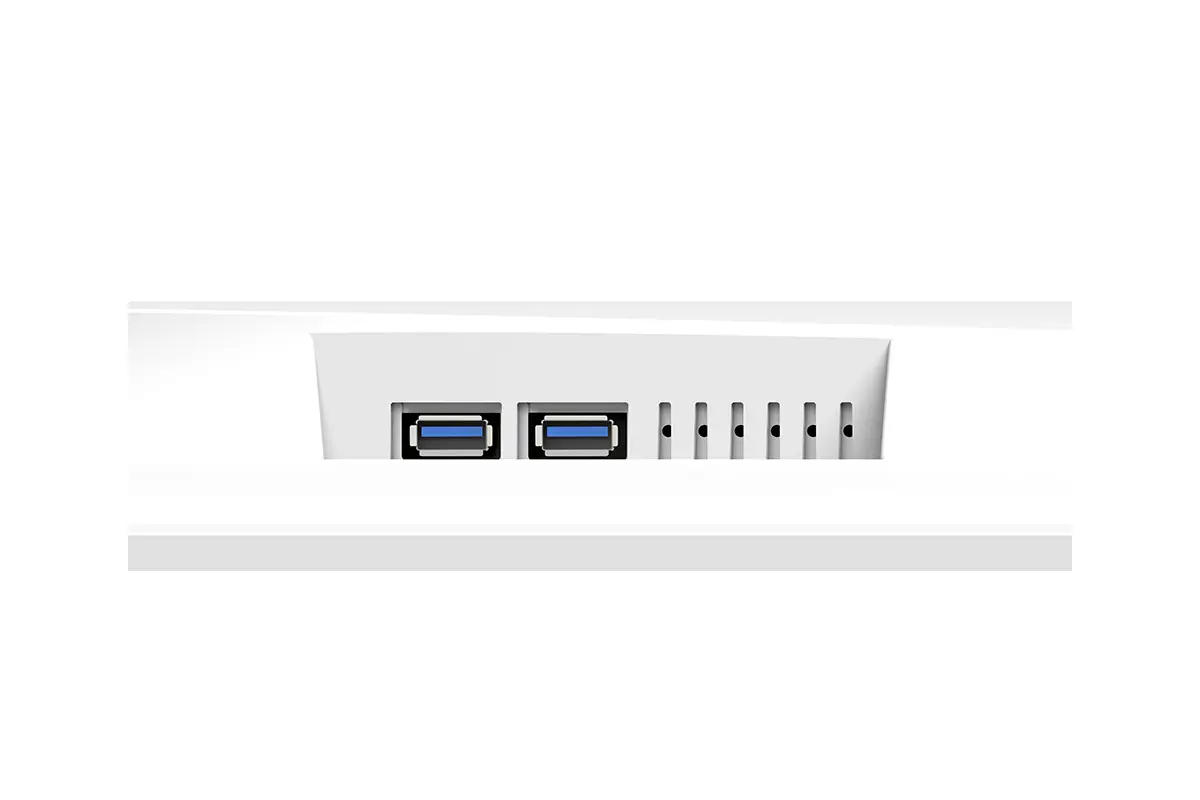

Convenient Access to Peripherals
While many modern laptops are designed to be thinner and more portable, they often have limited connectivity options for peripherals. Connecting a laptop to the monitor via USB Type-C provides access to a hub with four USB Type-A ports for easily connecting an external keyboard, mouse, or storage device.

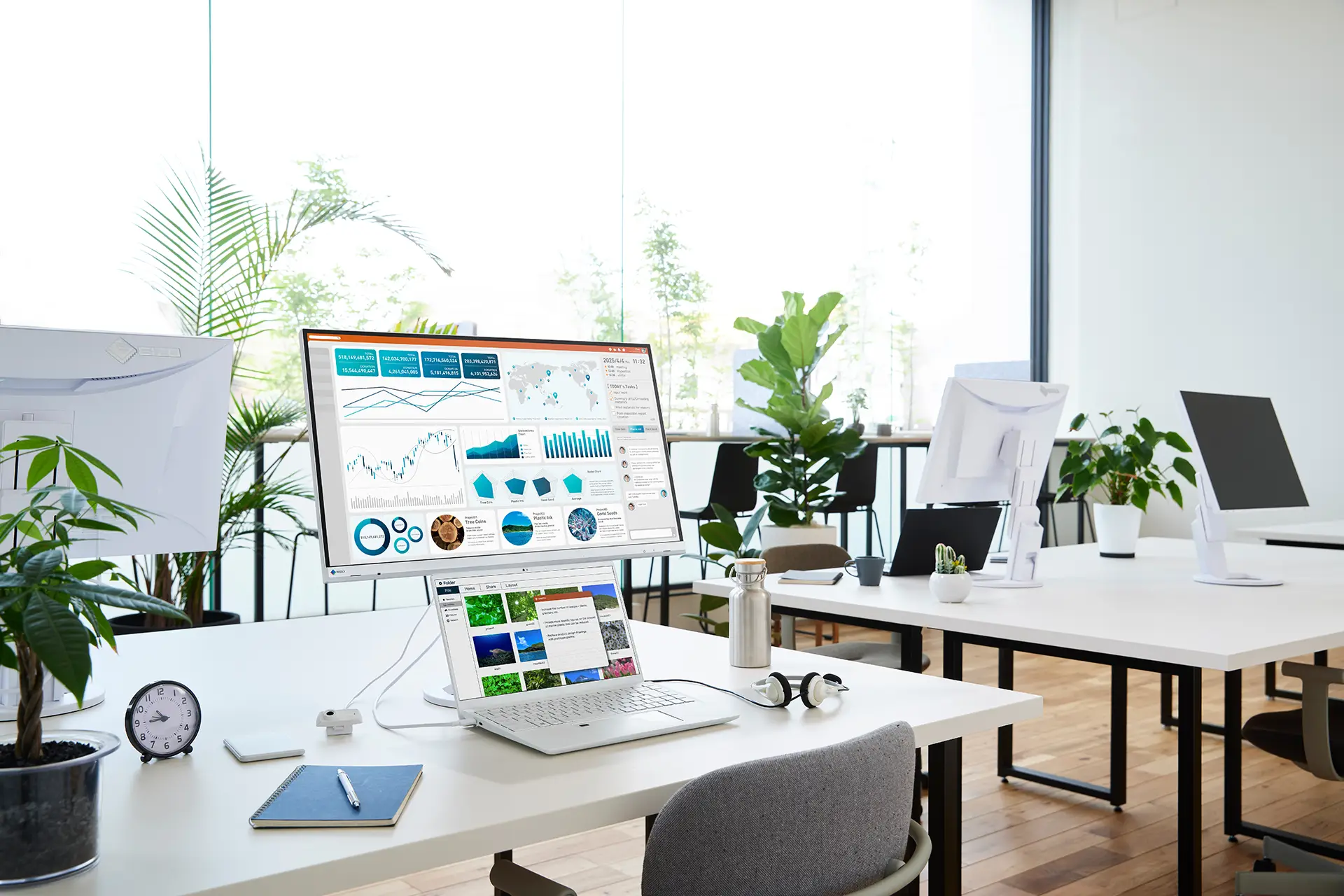

3. A Better Working Experience
Workstyles are becoming more diverse, with trends in open-plan offices, BYOD (bring your own device) meeting rooms, and remote work. The EV2740S offers features to enhance productivity, comfort, and convenience in these environments.

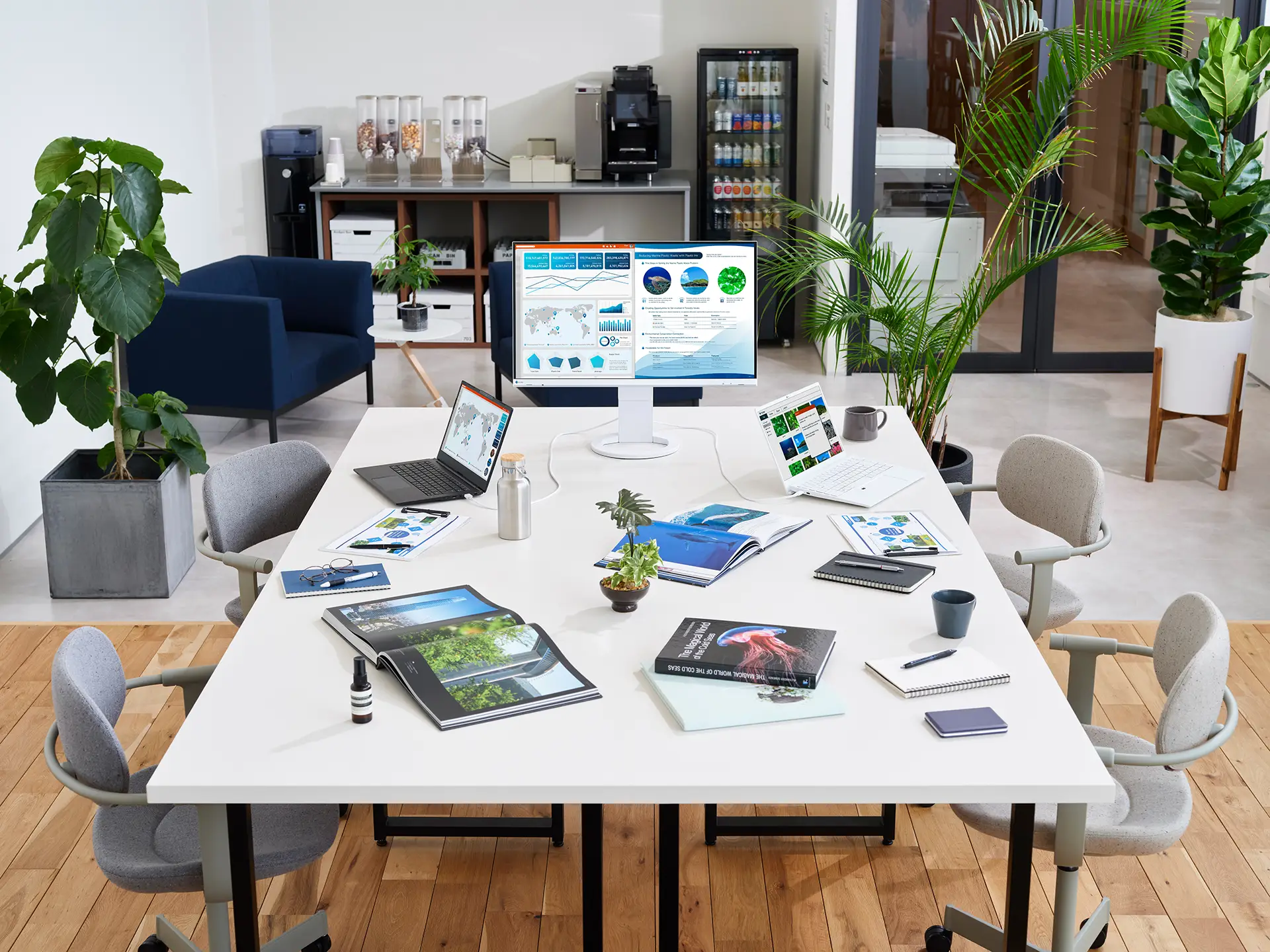

Make the Most of Your Meetings

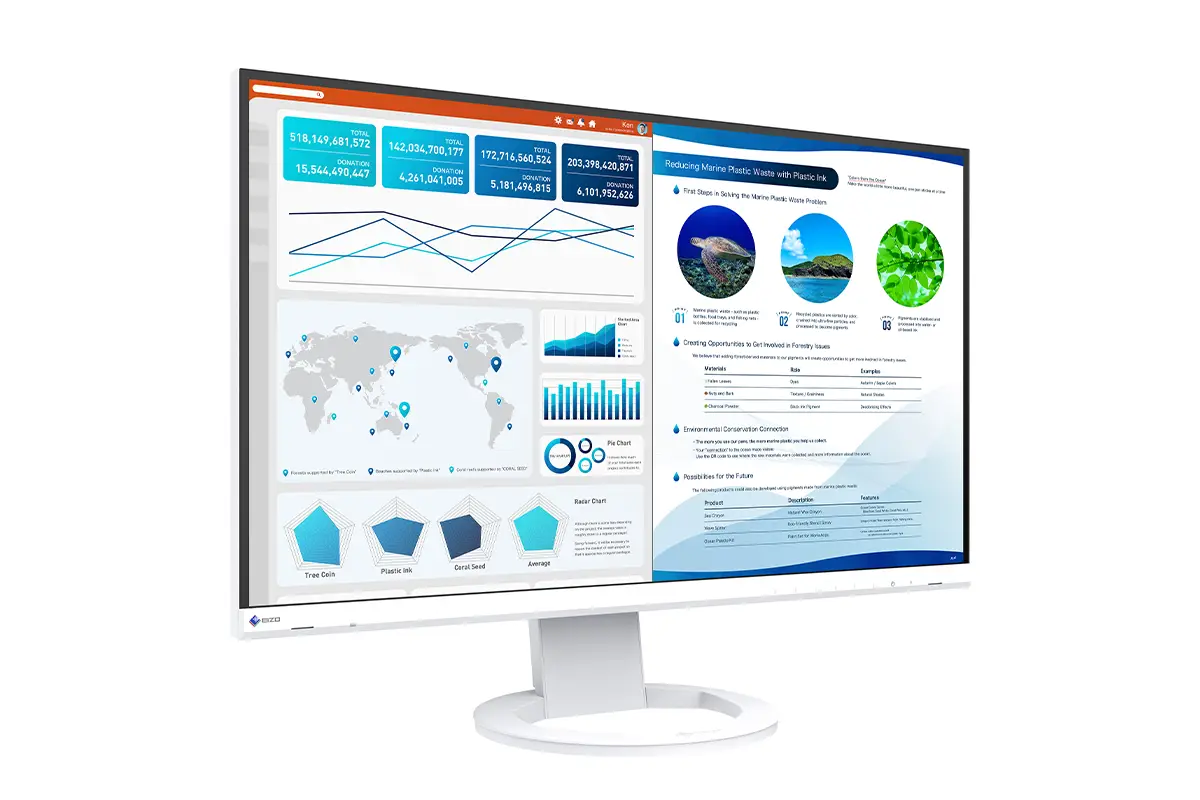

The monitor’s Picture-by-Picture (PbyP) capability helps to streamline your presentations and save valuable meeting time by removing the need to switch input sources. This convenient function makes it possible to compare data with a coworker side-by-side, as well as to share information from multiple sources during presentations.

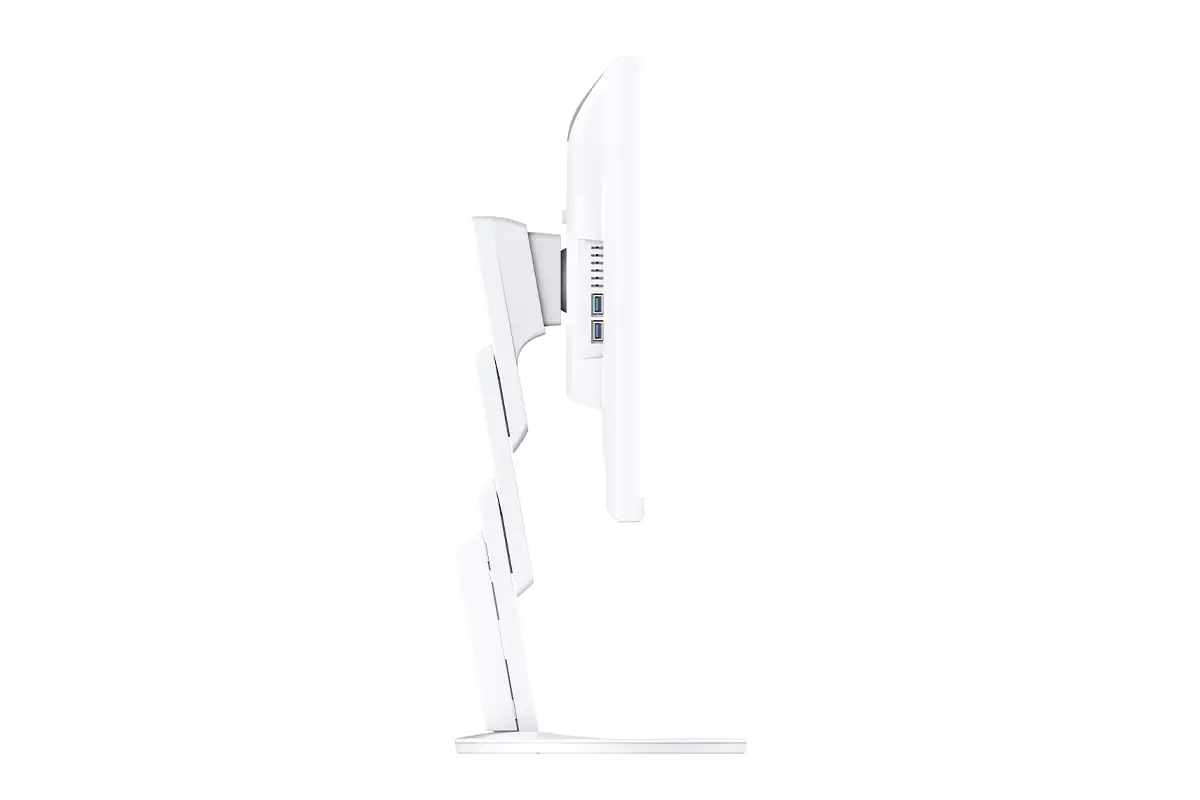

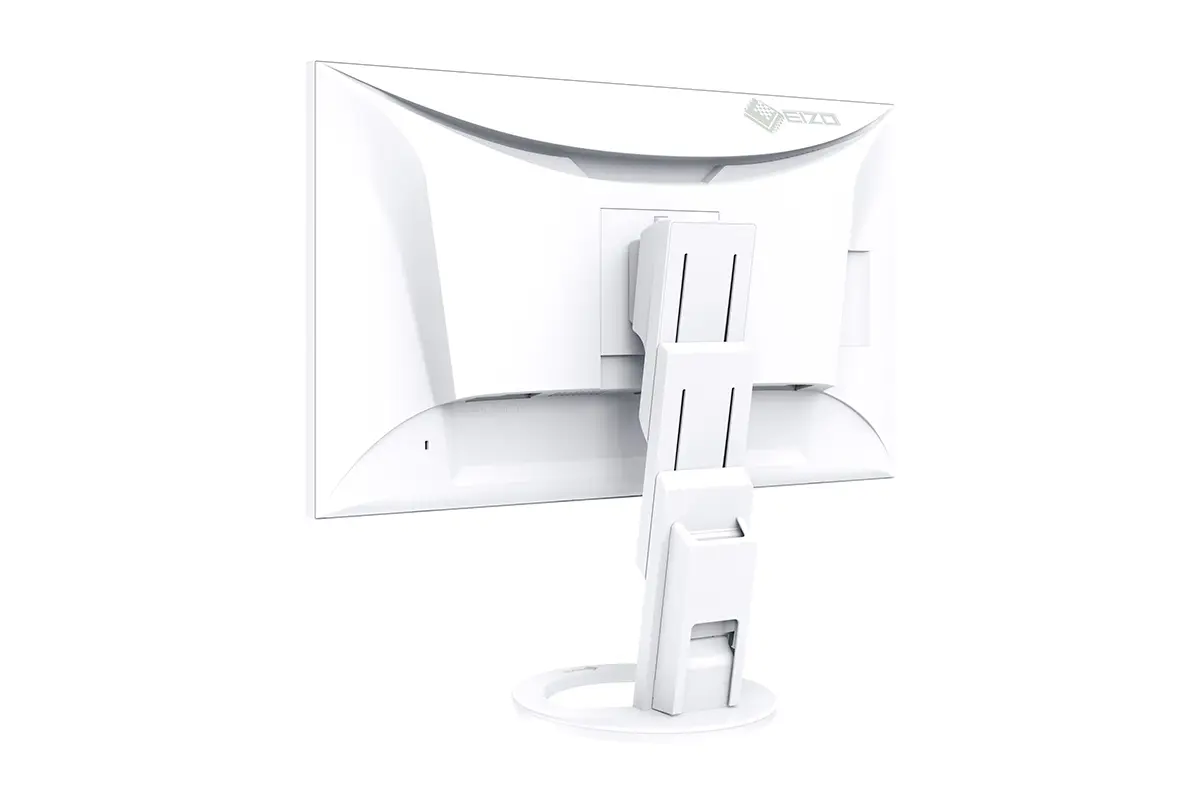

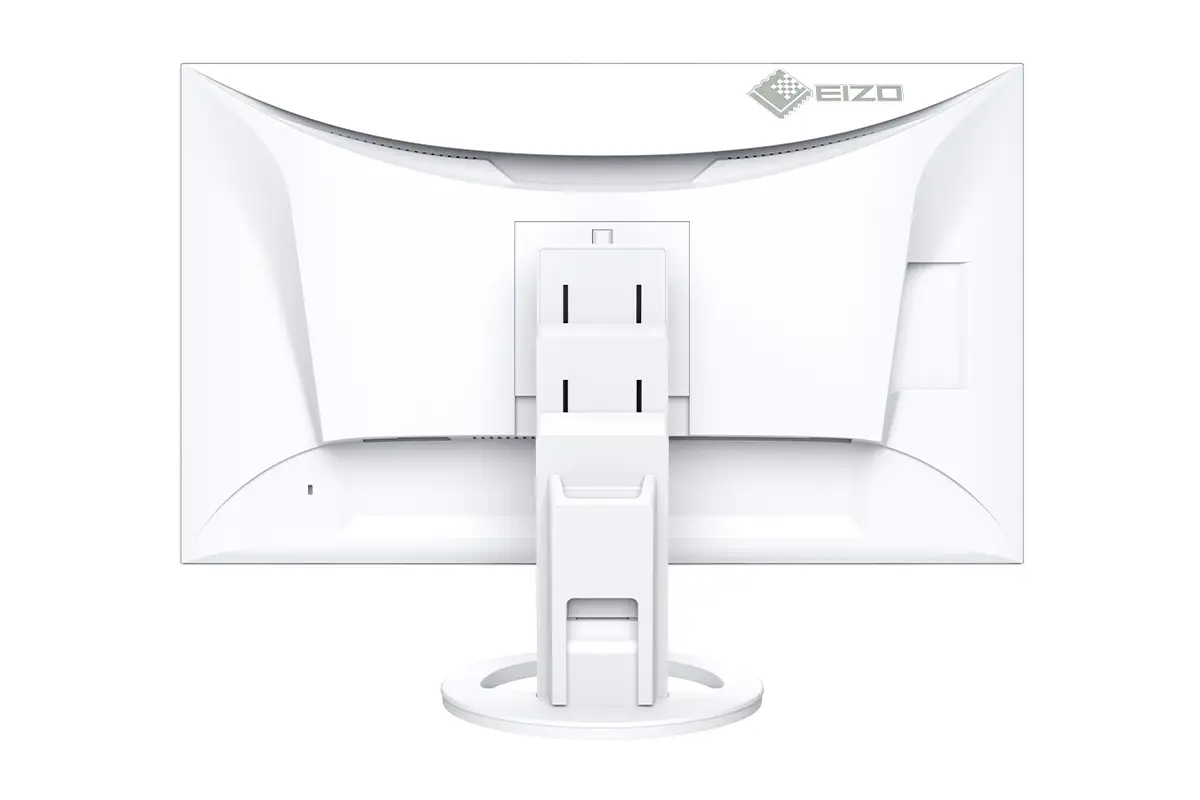

Versatile Stand for Optimal Positioning
The stand offers height adjustment, tilt, and swivel. It also supports pivot rotation for displaying long web pages or for convenient viewing in a multi-monitor setup. This flexibility allows you to position the screen to suit any workstyle, whether you are sitting or standing at your desk.

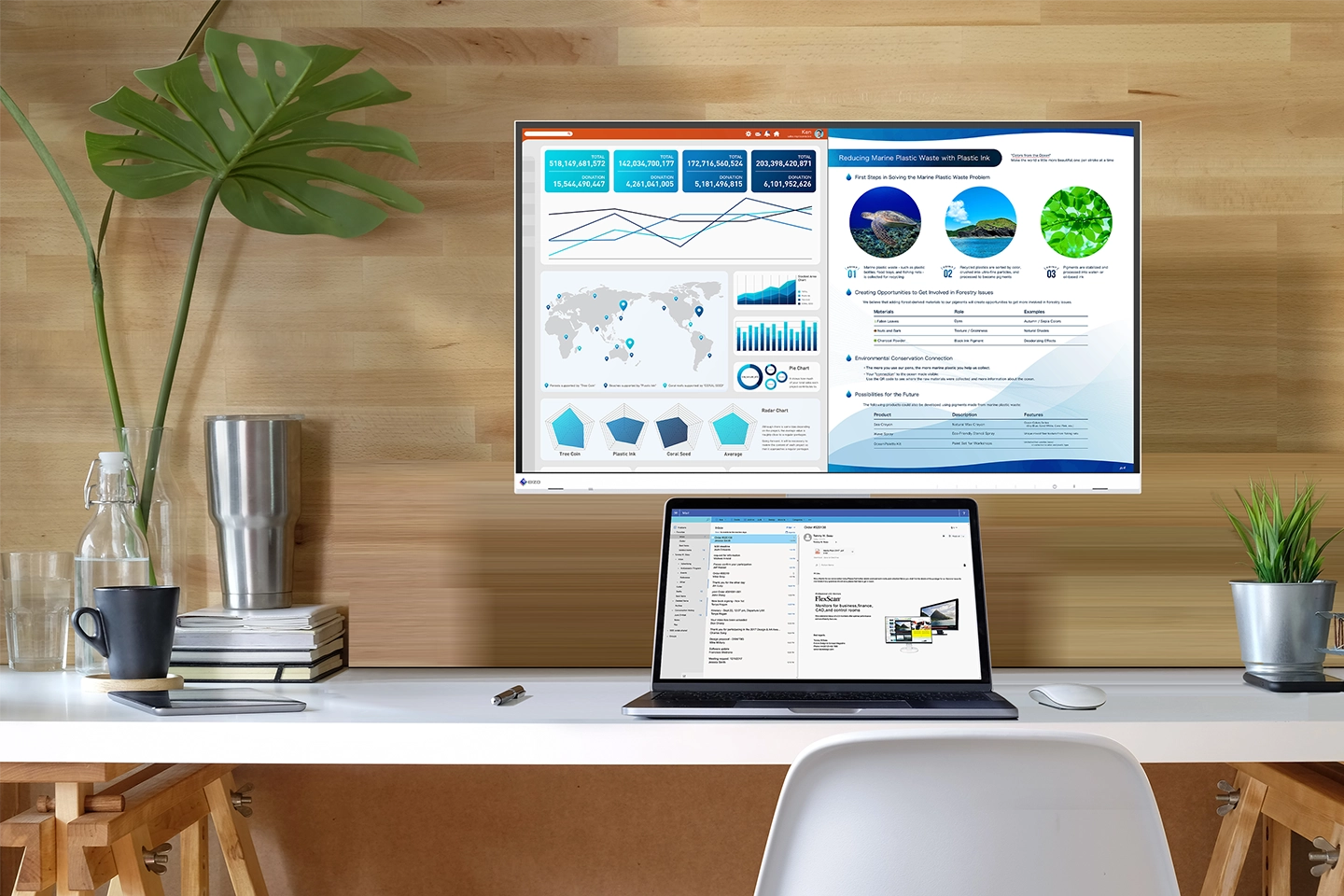

Comfortable Positioning in Modest Workspaces
A laptop can fit comfortably under the monitor with the stand set to its maximum height of 169 mm. This allows you to take advantage of a compact, multi-screen configuration without taking up valuable desk space.

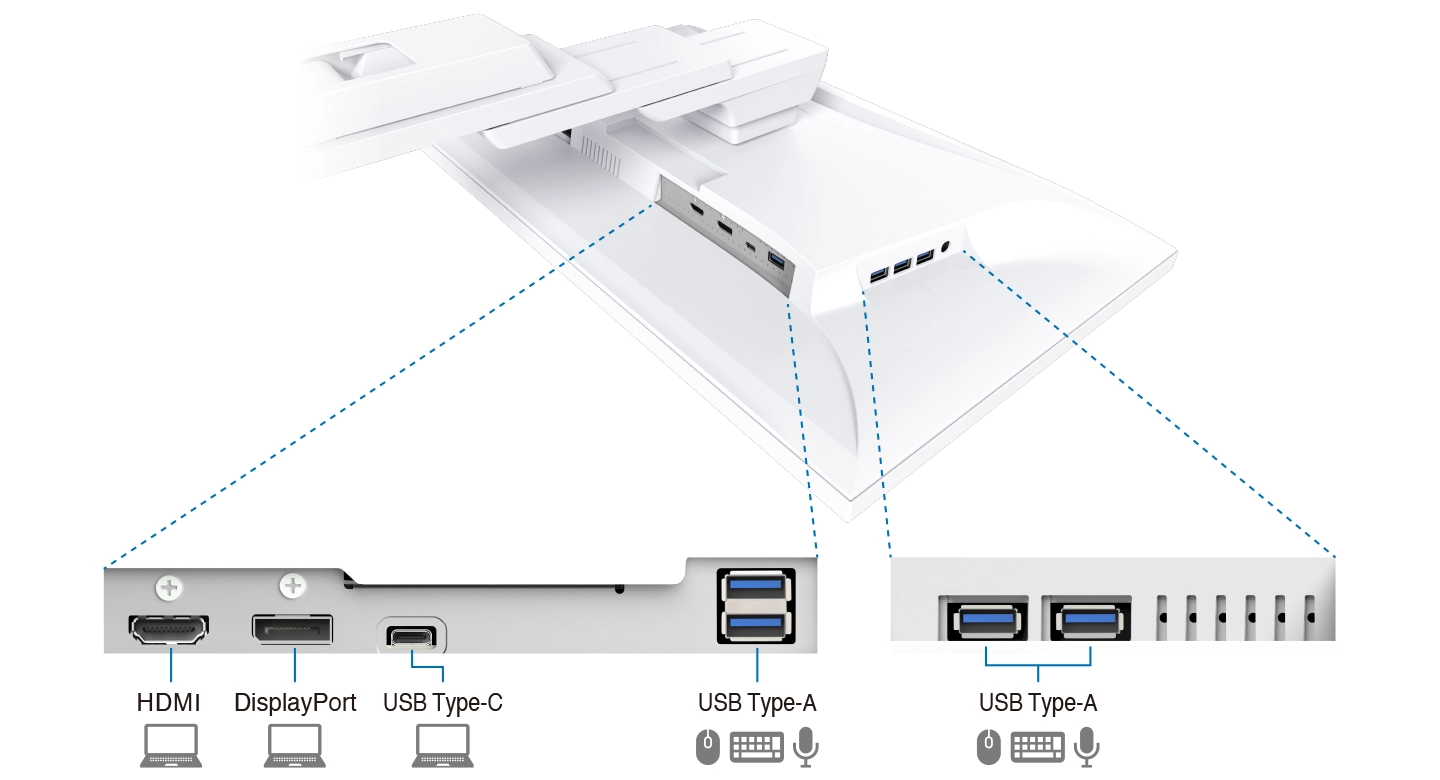

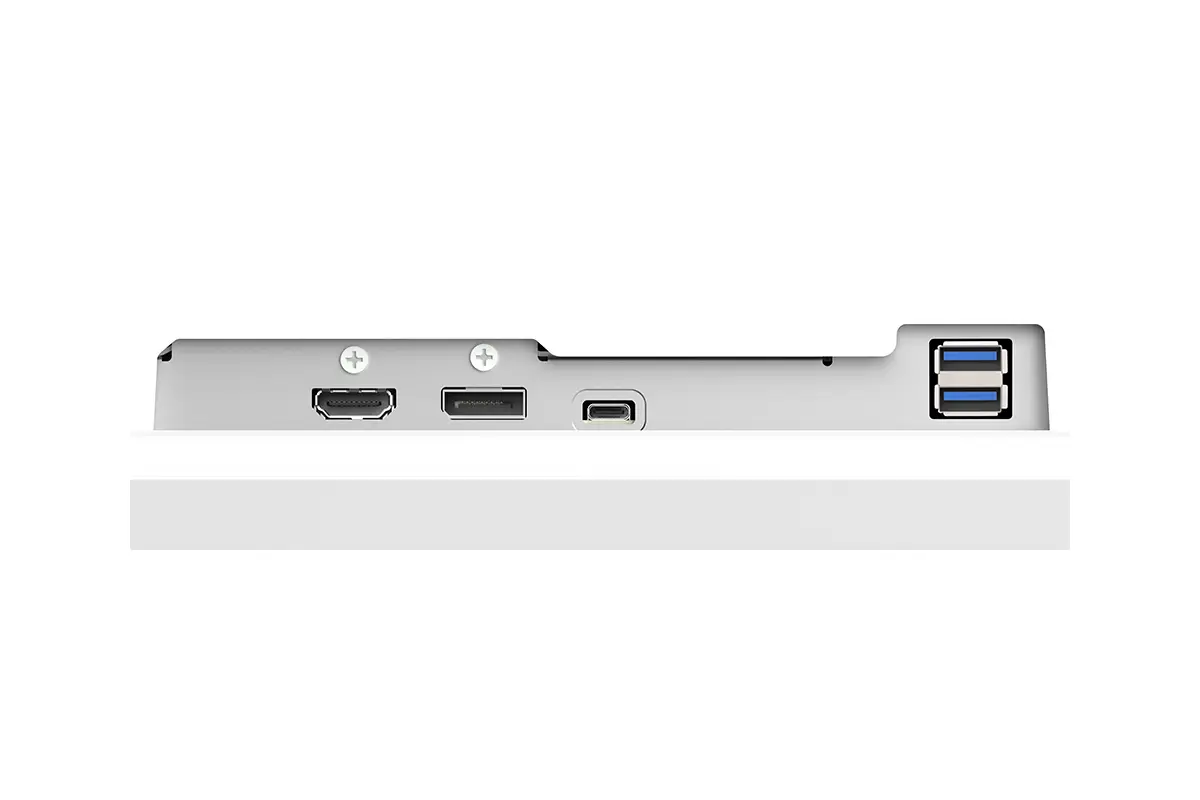

Connectivity and Flexibility
The monitor is equipped with USB Type-C, DisplayPort, and HDMI® video inputs. This is useful in hot desking environments or shared workspaces where a range of devices are frequently connected.
Aesthetically Pleasing Design
A monitor’s aesthetic can go a long way in creating a more comfortable atmosphere. The monitor’s minimalistic design and ergonomic functions allow it to fit naturally in any work environment, whether at home or in the office.
Bezels that are Barely There
The monitor features a three-sided frameless design for a sleek and minimalistic aesthetic. With minimal distance between the display area and the bezels, it seamlessly integrates into any environment.

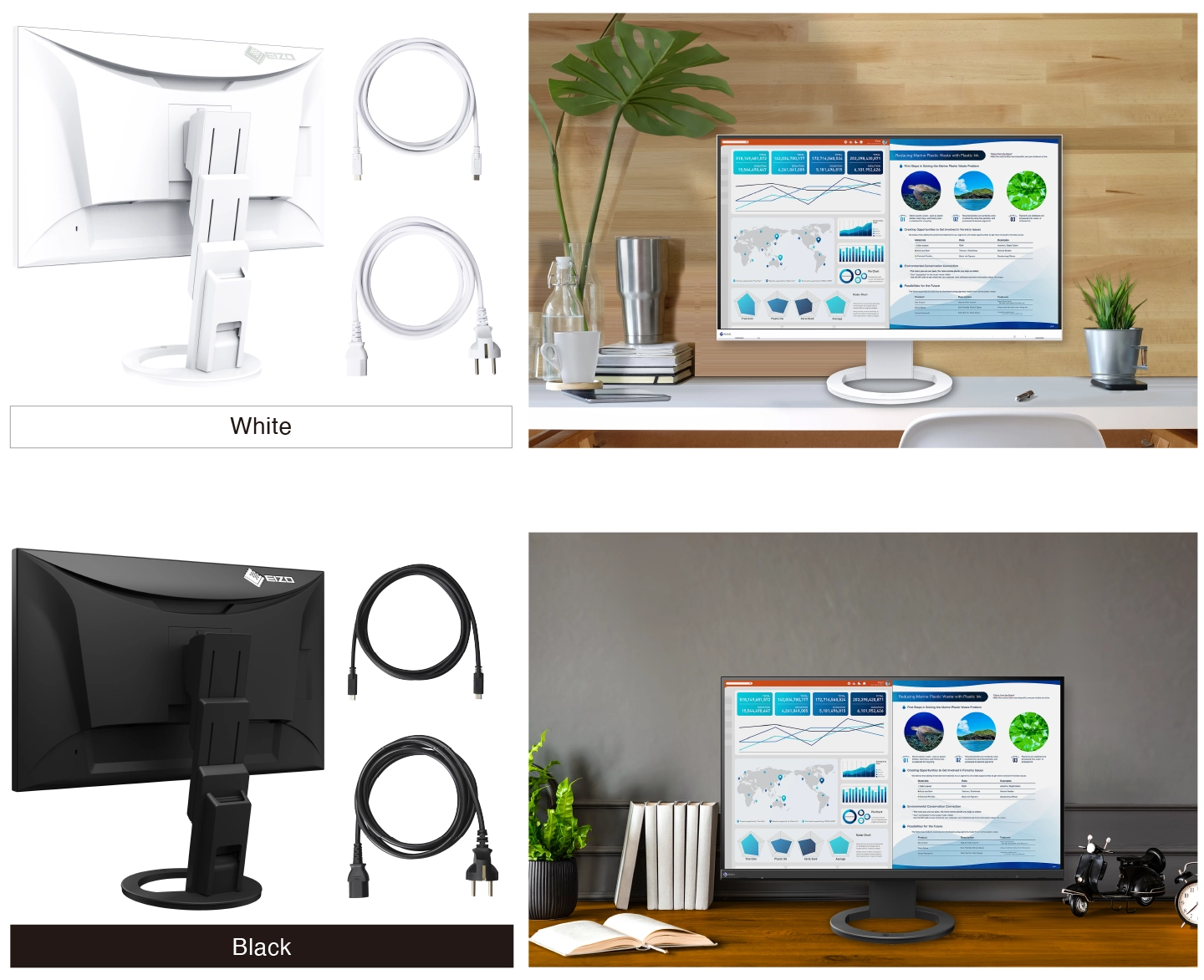

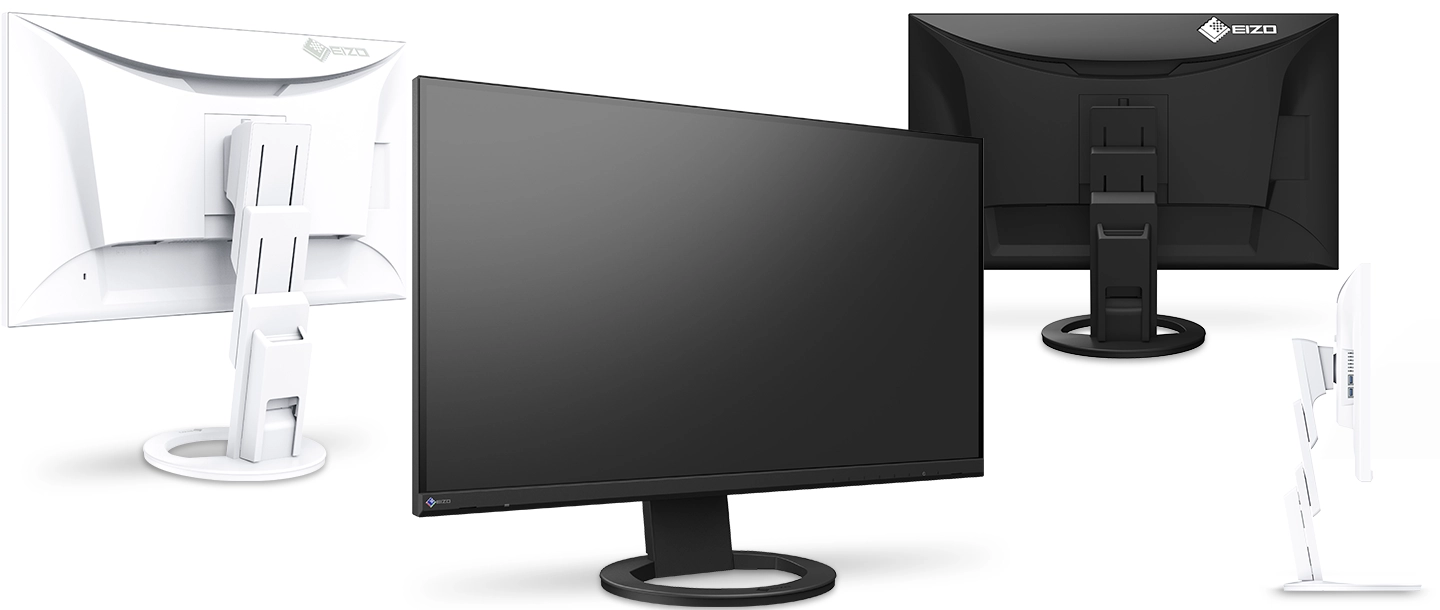

Colour Coordination to Suit Your Workspace
The monitor cabinet is available in both white and black, with matching stand and cables. Whether you prefer a bright, inviting aesthetic, or a chic, relaxed vibe, you can choose the color that best complements your workspace.

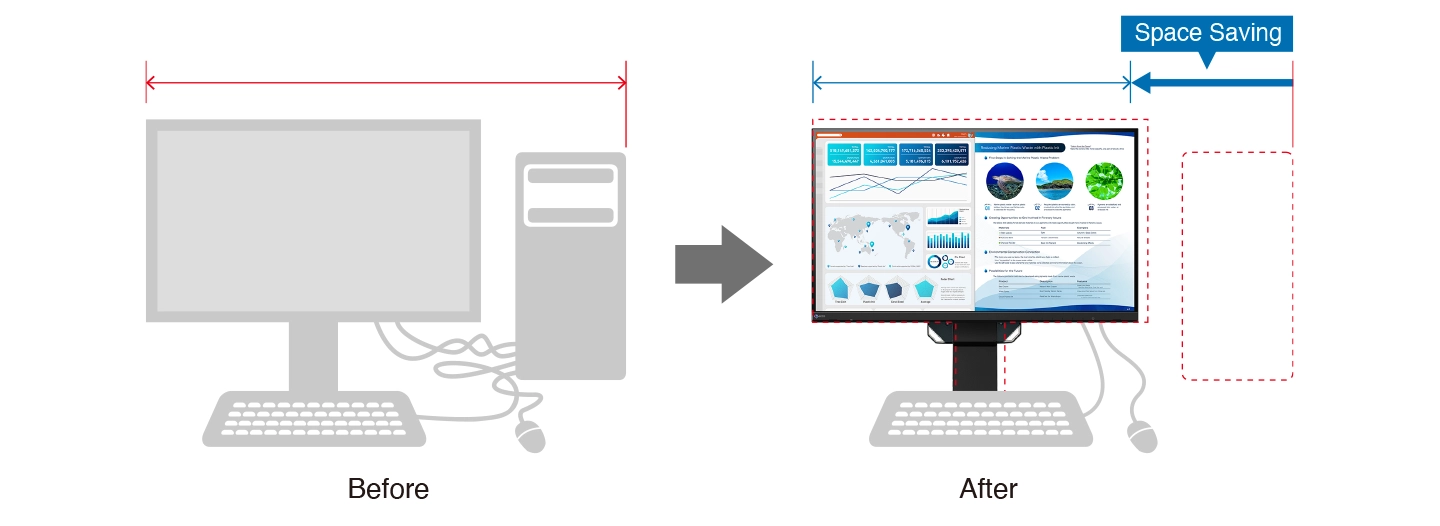

Free Up Your Workspace with a Stand Bracket
VESA-compliant stand brackets let you easily mount a client terminal, such as a thin client or mini PC, to the back of the monitor. The space the client terminal previously occupied is now freed up so you can make better use of your desktop. Even with the client terminal attached you can adjust the monitor’s stand freely.
4. Say Goodbye to Tired Eyes
The monitor is equipped with functions to help users concentrate on work by keeping their eyes comfortable throughout the day.
Auto Brightness Control
To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.
Clear View from Any Angle
The monitor uses an IPS panel with wide viewing angles that minimize color shifts and contrast changes. This ensures consistent image quality from any position.
Reduce Blue Light by 80%
Paper Mode reduces the amount of blue light emitted from the monitor, helping to prevent eye fatigue when reading digital documents. When used in conjunction with the Auto EcoView auto-dimming function, blue light is reduced by up to 80%.
Flicker-Free Viewing
Due to the way brightness is controlled on LED backlights, some people experience flicker on the screen, causing eye fatigue. The monitor uses a hybrid solution to regulate brightness and eliminate perceived flicker without compromising color stability, even at low brightness settings.
Minimum Brightness of 1 cd/m2
In a dimly lit work environment, a monitor with low brightness settings is more comfortable to use. The monitor is adjustable to approximately 1 cd/m², which is less than 1% of the maximum.
Glare Reduction
The panel is treated with an anti-glare coating to reduce screen reflections caused by ambient light. This makes the screen easier to see and helps reduce eye fatigue.
Certified for Eye Care
FlexScan monitors are certified by TÜV Rheinland to have low blue light and be flicker-free.
5. Intelligent Software to Work Better
EIZO’s Screen InStyle is a free software that allows you to easily manage monitor settings by using your mouse instead of monitor control buttons.
Organize Your Desktop to for Greater Efficiency
EIZO’s free Screen InStyle software’s Screen Layout function allows you to divide the desktop and arrange each program’s window neatly across the screen to help you work smart and efficiently.
This function differs from Picture-by-Picture function.
Technical data
| Model Variations | EV2740S-BK: with FlexStand, black EV2740S-WT: with FlexStand, white EV2740S-FBK: without stand, black EV2740S-FWT: without stand, white Note: FlexStand is removable |
| PANEL | |
| Type | IPS |
| Backlight | LED |
| Size | 27.0" (68.5 cm) |
| Native Resolution | 3840 x 2160 (16:9 aspect ratio) |
| Viewable Image Size (H x V) | 596.7 x 335.7 mm |
| Pixel Pitch (H x V) | 0.155 x 0.155 mm |
| Pixel Density | 163 ppi |
| Display Colors | 16.77 million |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 350 cd/m2 |
| Contrast Ratio (typical) | 1000:1 |
| Response Time (typical) | 6 ms (gray-to-gray) |
| Color Gamut (typical) | sRGB |
| VIDEO SIGNALS | |
| Input Terminals | USB Type-C (DisplayPort Alt Mode, HDCP 2.3 / 1.3), DisplayPort (HDCP 2.3 / 1.3), HDMI (HDCP 2.3 / 1.4) |
| Digital Scanning Frequency (H / V) | USB Type-C: 31 - 134 kHz / 29 - 61 Hz DisplayPort: 31 - 134 kHz / 29 - 61 Hz HDMI: 31 - 136 kHz / 29 - 61 Hz |
| USB | |
| Upstream | USB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 70 W max.) |
| Downstream | USB 5Gbps: Type-A x 4 |
| AUDIO | |
| Speakers | 1.0 W + 1.0 W |
| Input Terminals | USB Type-C, DisplayPort, HDMI |
| POWER | |
| Power Input | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 12 W |
| Maximum Power Consumption | 149 W |
| Power Save Mode | 0.27 W |
| FEATURES & FUNCTIONS | |
| Preset Modes | User1, User2, sRGB, Paper, Movie, DICOM |
| Simultaneous Display | Picture by Picture (2 PbyP) |
| Automatic Brightness Control | Auto EcoView |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| PHYSICAL SPECIFICATION | |
| Dimensions (Landscape, W x H x D) | 611.6 x 376.3 - 545.3 x 230 mm |
| Dimensions (Without Stand, W x H x D) | 611.6 x 364.3 x 60.7 mm |
| Net Weight | 8.6 kg |
| Net Weight (Without Stand) | 5.8 kg |
| Height Adjustment Range | 169 mm |
| Tilt | 35° Up, 5° Down |
| Swivel | 344° |
| Pivot | 90° (both clockwise and counter clockwise) |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| ENVIRONMENTAL REQUIREMENTS | |
| Operating Temperature | 5 - 35°C |
| Operating Humidity (R.H., non condensing) | 20 - 80% |
| CERTIFICATIONS & STANDARDS | TCO Certified, generation 10, EPEAT Gold with Climate+, TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES (B), TUV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC |
| DEDICATED SOFTWARE | |
| Monitor Control Utility Screen InStyle | Supported |
| SUPPLIED ACCESSORIES | May vary by country. Please contact EIZO for details. |
| Signal Cables | USB Type-C (1.5 m) |
| Others | AC power cord (2 m), setup guide |
| WARRANTY | 5 Years Zero bright sub-pixels for six months from date of purchase. |
| Warranty Notes | 2) With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels. 5) If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically. 16) EPEAT registration varies by country. Please check https://www.epeat.net for registration status. |
| Dimension Drawing |
